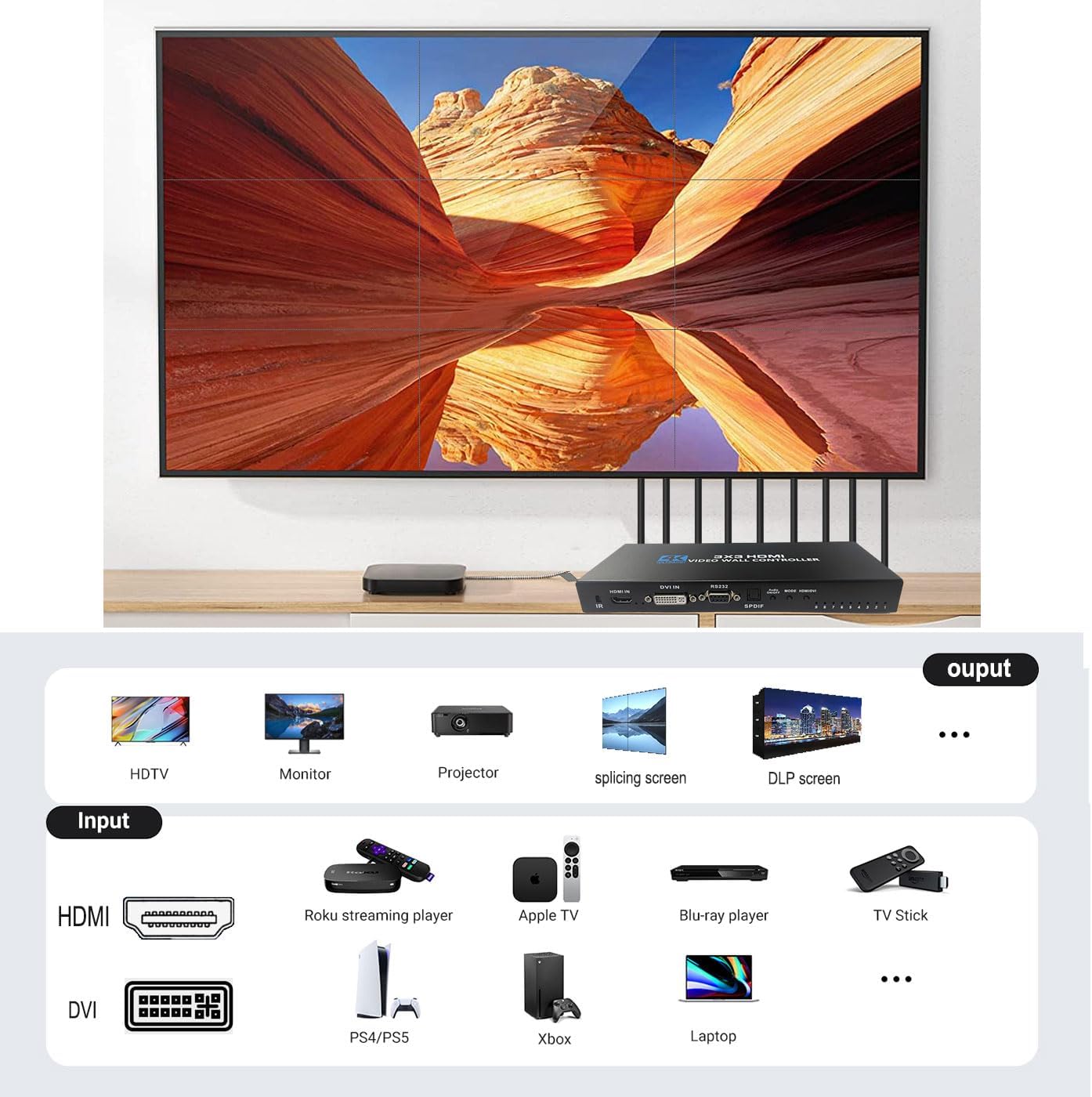

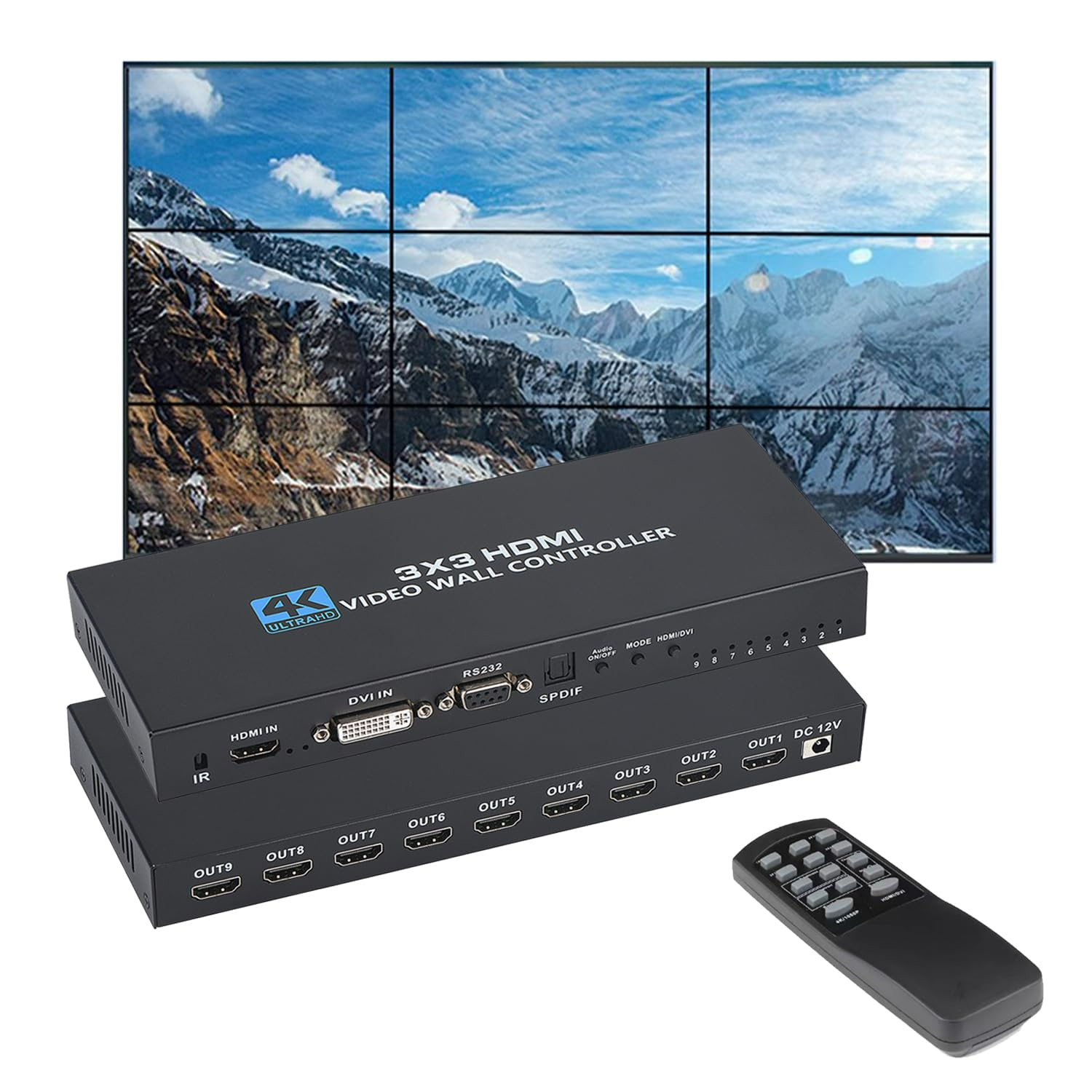

The 4K 3X3 video wall controller, support 1-way HDMI or DVI 2.0b input splitter and distributes 9 HDMI 1 HDMI output, source to 2 HDMI displays function is to divide a complete HDMI, DVI HD image singal into 9 blocks and assign to 9 video display unit (such as rear projection unit, LCD TV, etc.). Complete with 9 HDMI high-definition video display units to form a large dynamic image screen.
Package Content
SKU:
S-ST-HDV-203
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Tweet about #SYONG products
Feature

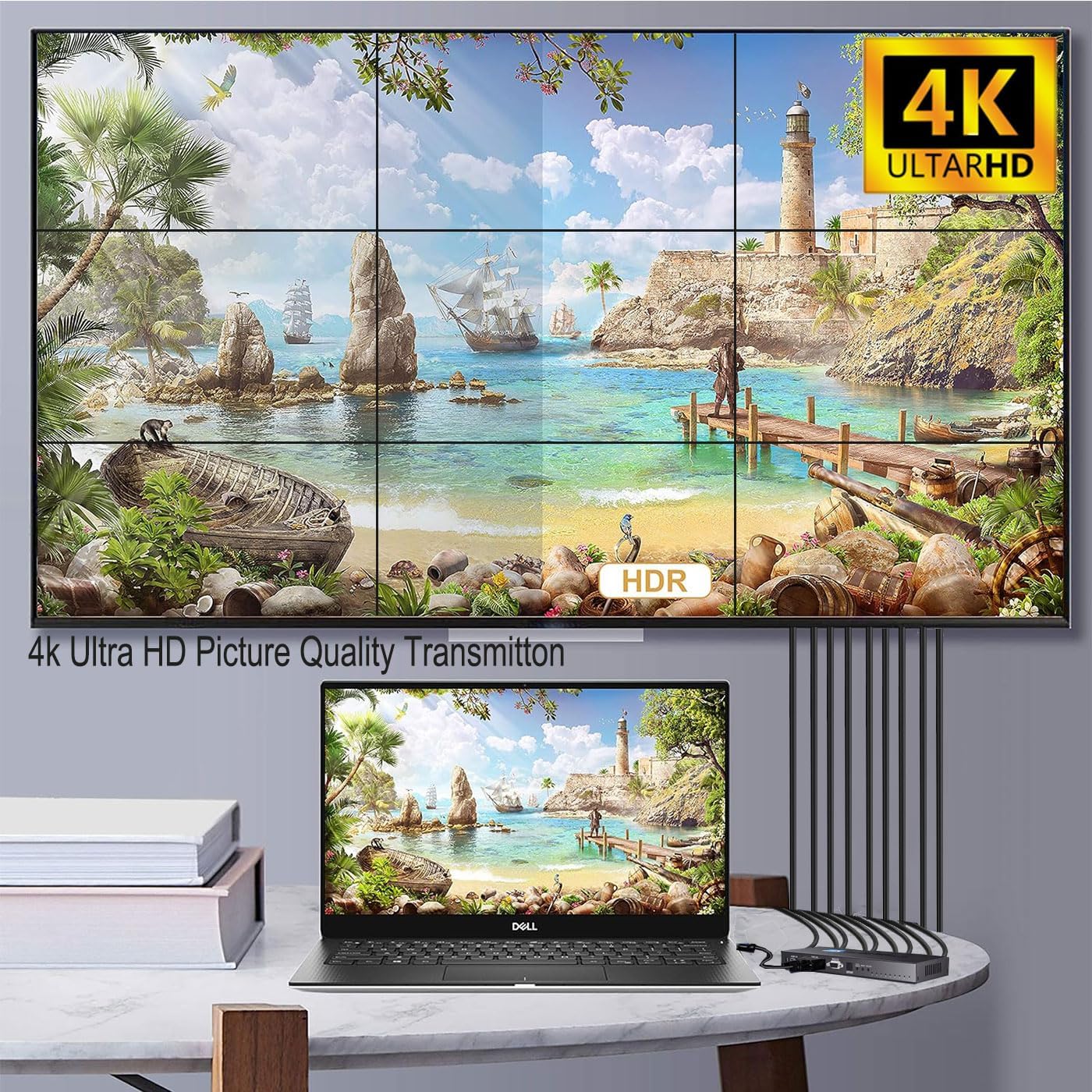

*【9 tv screens into 1 wall display】The HDMI video processor allows you to create a spectacular large video wall by combining nine televisions, enabling you to enjoy a heightened visual experience with seamless synchronization of audio and video.
*【Easy to install and operate】The tv wall controller no need for drivers, plug and play. It has strong compatibility, supporting most HDMI devices available on the market. Suitable for LCD TVs, projectors, DLP, plasma displays, and more. Let us enjoy movie-grade picture quality at home anytime.

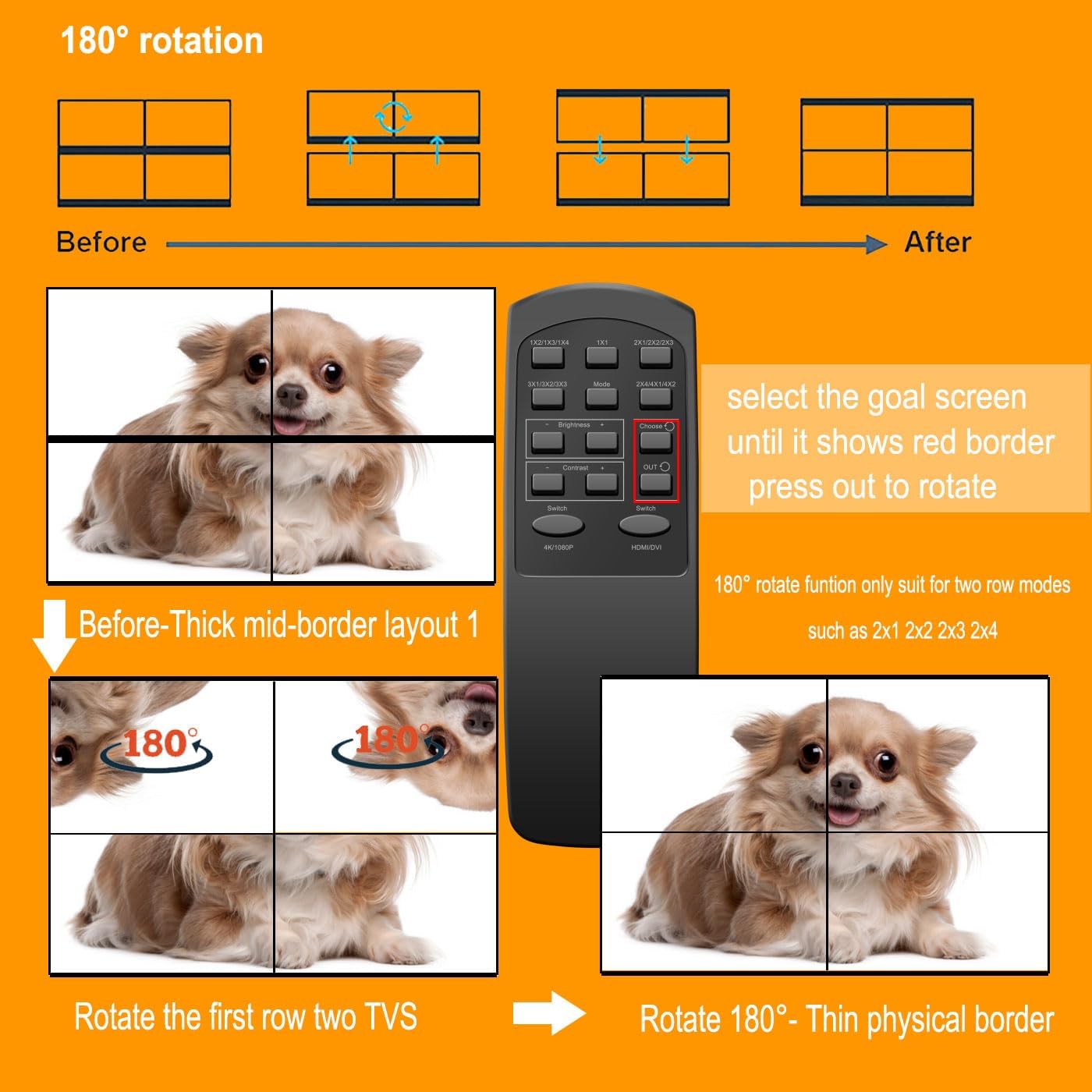

*【180-degree screen rotation】In 3x3 mode, the TV wall processor also has the function of 180-degree mirror flip per screen, significantly reducing the LCD splicing gap and minimizing image distortion caused by excessive side seams.

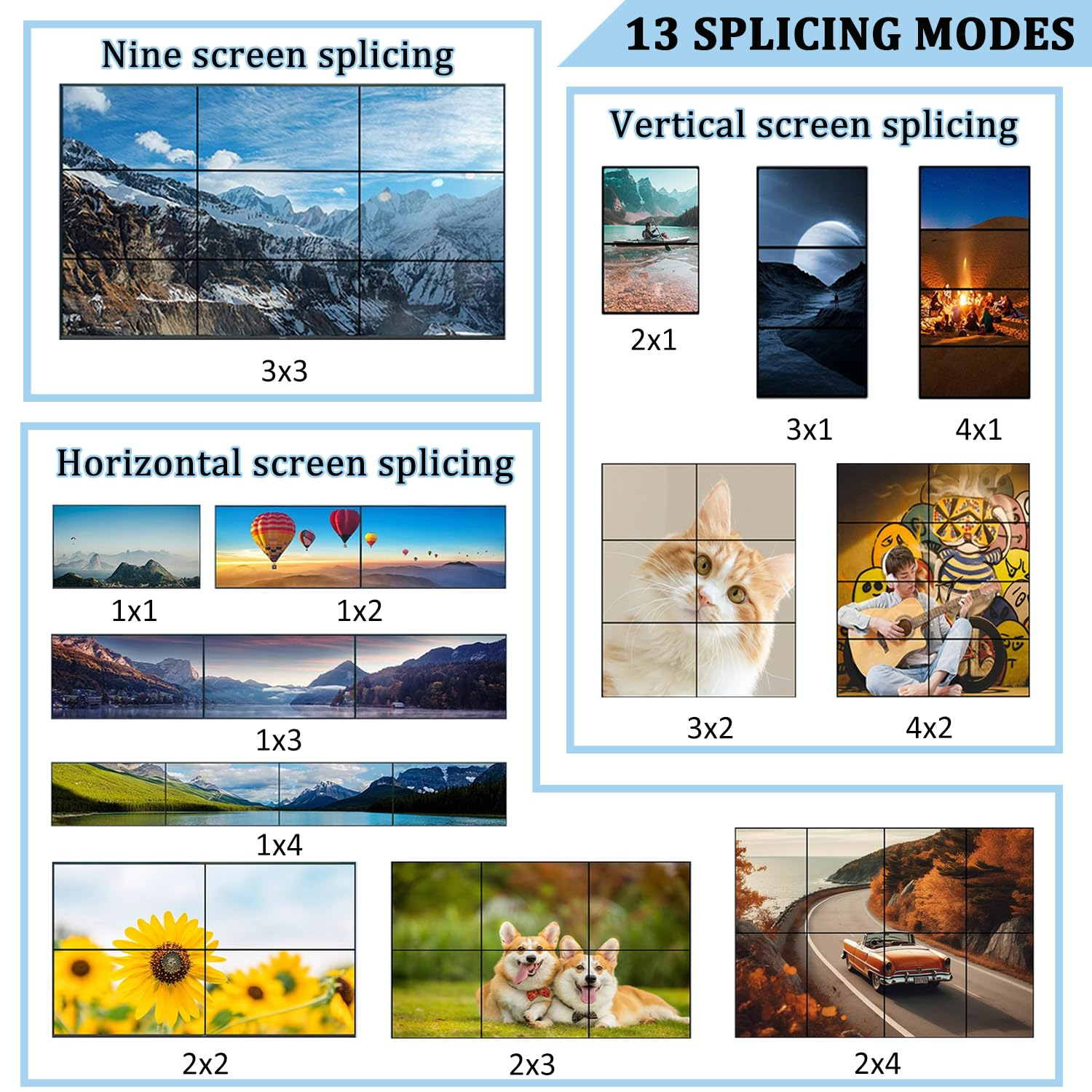

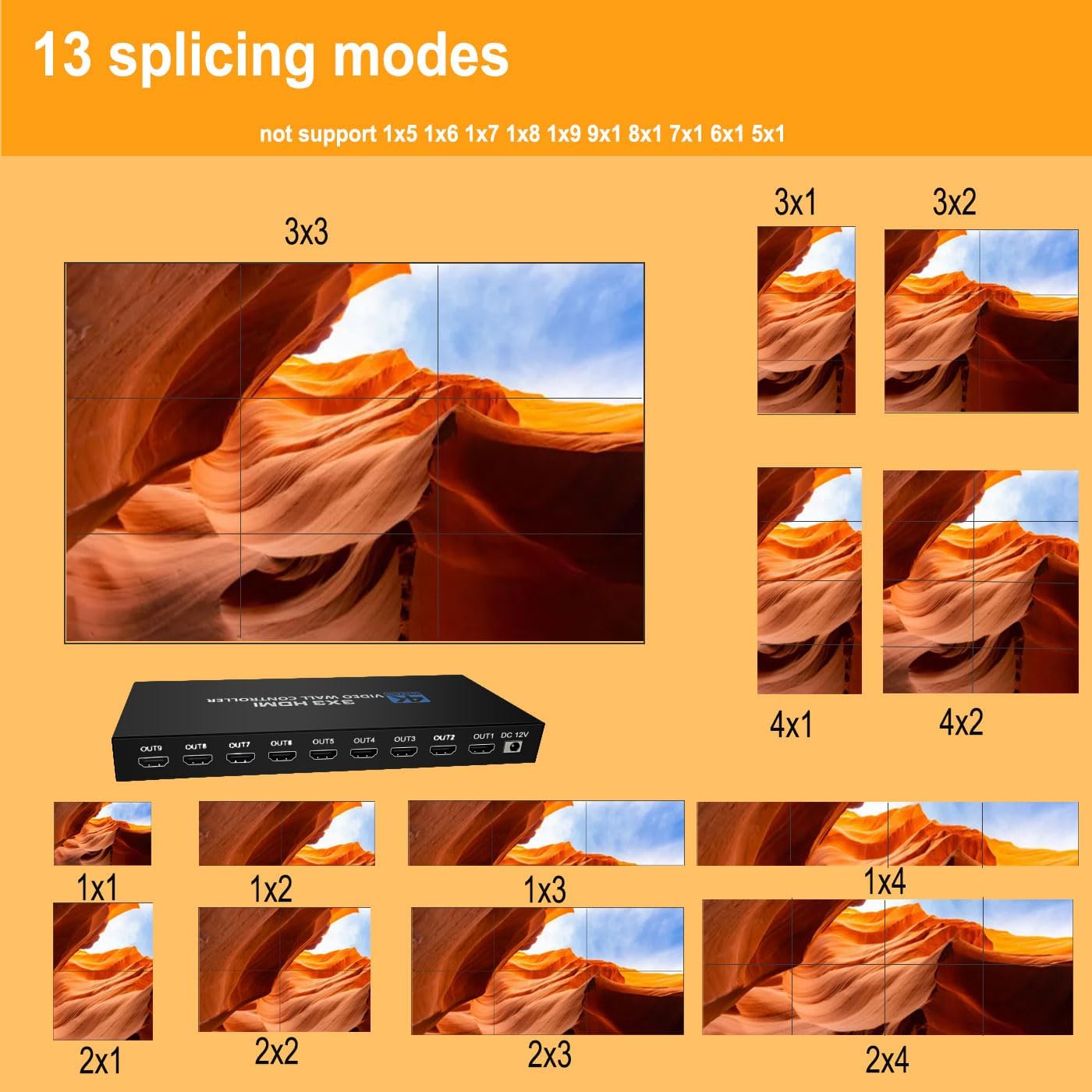

*【 13 splicing modes】 our video processor can output from 9 channels and supports multiple modes of 1x1, 1x2, 1x3, 1x4, 2x1, 2x2, 2x3, 2x4, 3x1, 3x2, 3x3, 4x1, 4x2, and can be quickly controlled directly through the remote control or button.

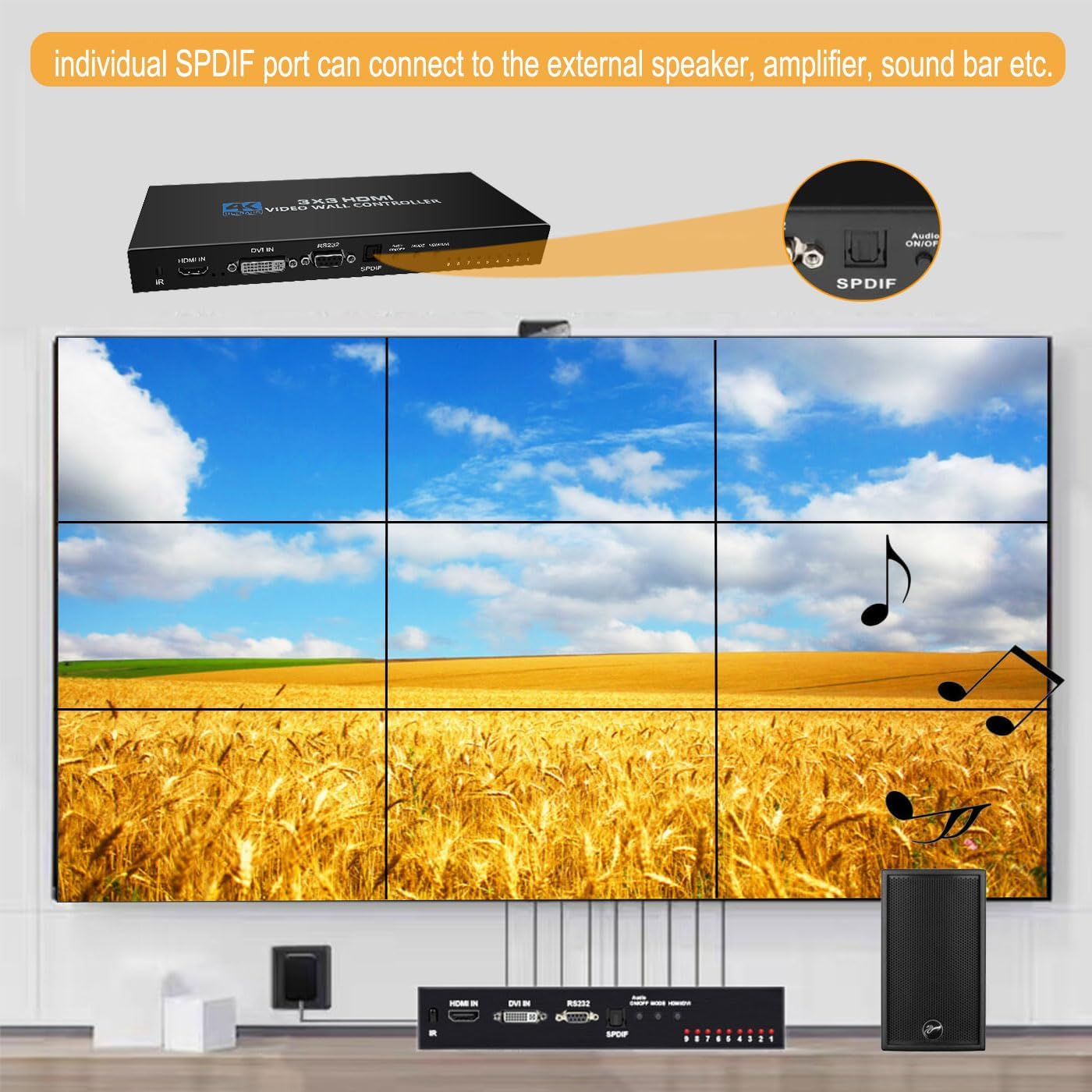

*【5.1CH Optical Audio OUT】Support 5.1ch audio output over optical fibers, can be connected to external speakers, sound bars, amplifiers, etc.
*【Resolution Specification】HDMI input support 1920x1080p@25/30/50/60HZ，3840x2160p@24/30hz; HDMI OUTPUT support 1920 x 1080P@60HZ ONLY; In order to work properly, make sure that all televisions support a resolution of no less than 1080p
Specs
Input
Supports one DVI input or HDMI input.
Output
Support four HDMI output, one 3.5mm stereo output.
Support 5.1CH audio output over optical fibers. Support RS232
