This Capture Card has 4 channel HD HDMI video signals, which can be inserted into HDMI video sources individually or at the same time
Package Content
SKU:
S-CA-4K-HUG
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Tweet about #SYONG products
Feature

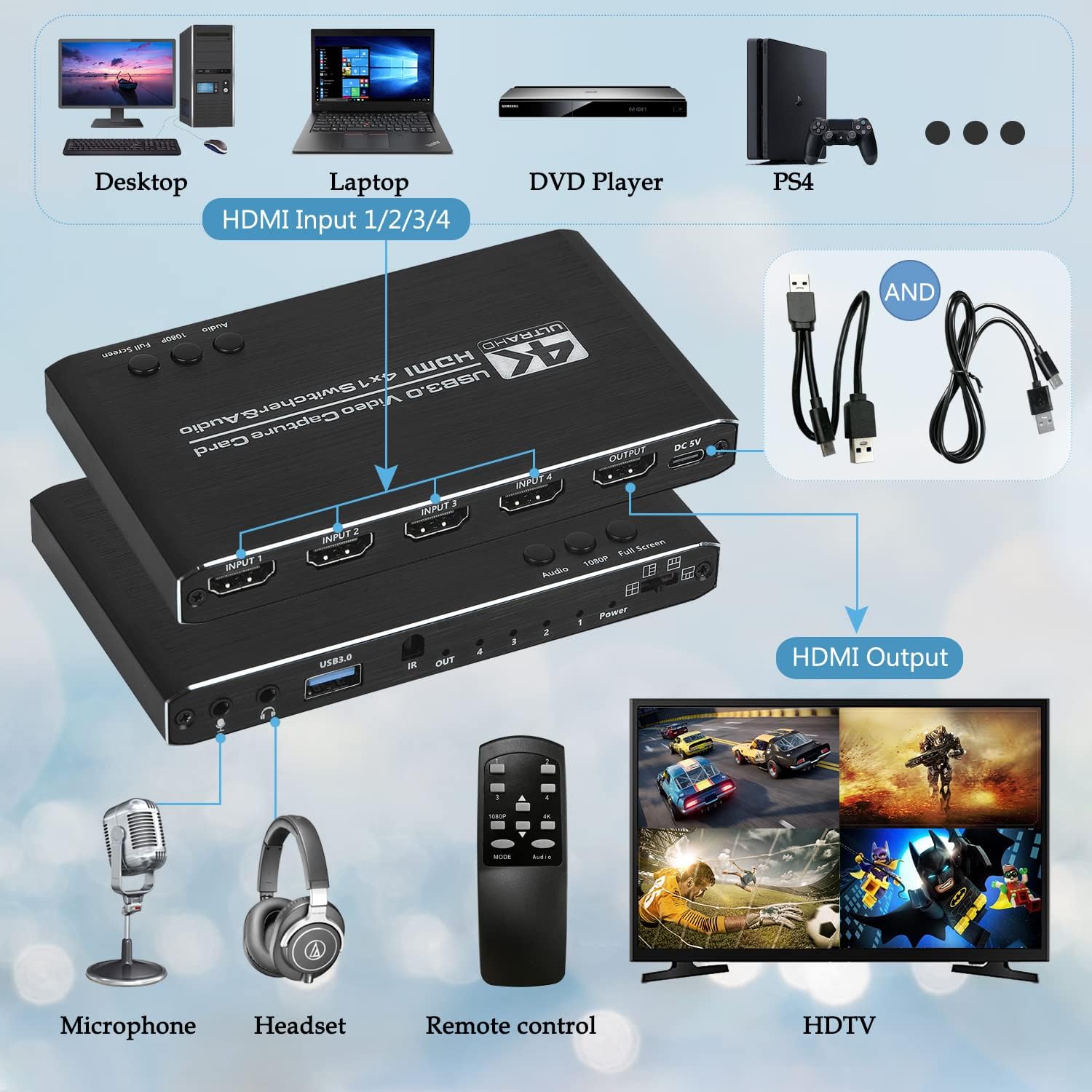

【4 IN 1】This multi-function video capture card adopts four parallel HDMI input interfaces, which can be inserted into HDMI video sources individually or at the same time, without mutual 2.0b splitter distributes 1 HDMI source to 2 HDMI displays influence, video capture is very smooth, no delay, especiallysuitable for capturing high-definition video , built-in upgradedchip, support 1080P video format, can also access multiplecameras, cameras, DV or video equipment with HDMI interface.【Wide Compatibility】Capture resolution up to 1080p for videosource and it is ideal for all HDMI devices such as PS3,4, XboxOne, Xbox 360, Wii U, Nintendo Switch, DVDs, DSLR, Camera,Security Camera and set top box.

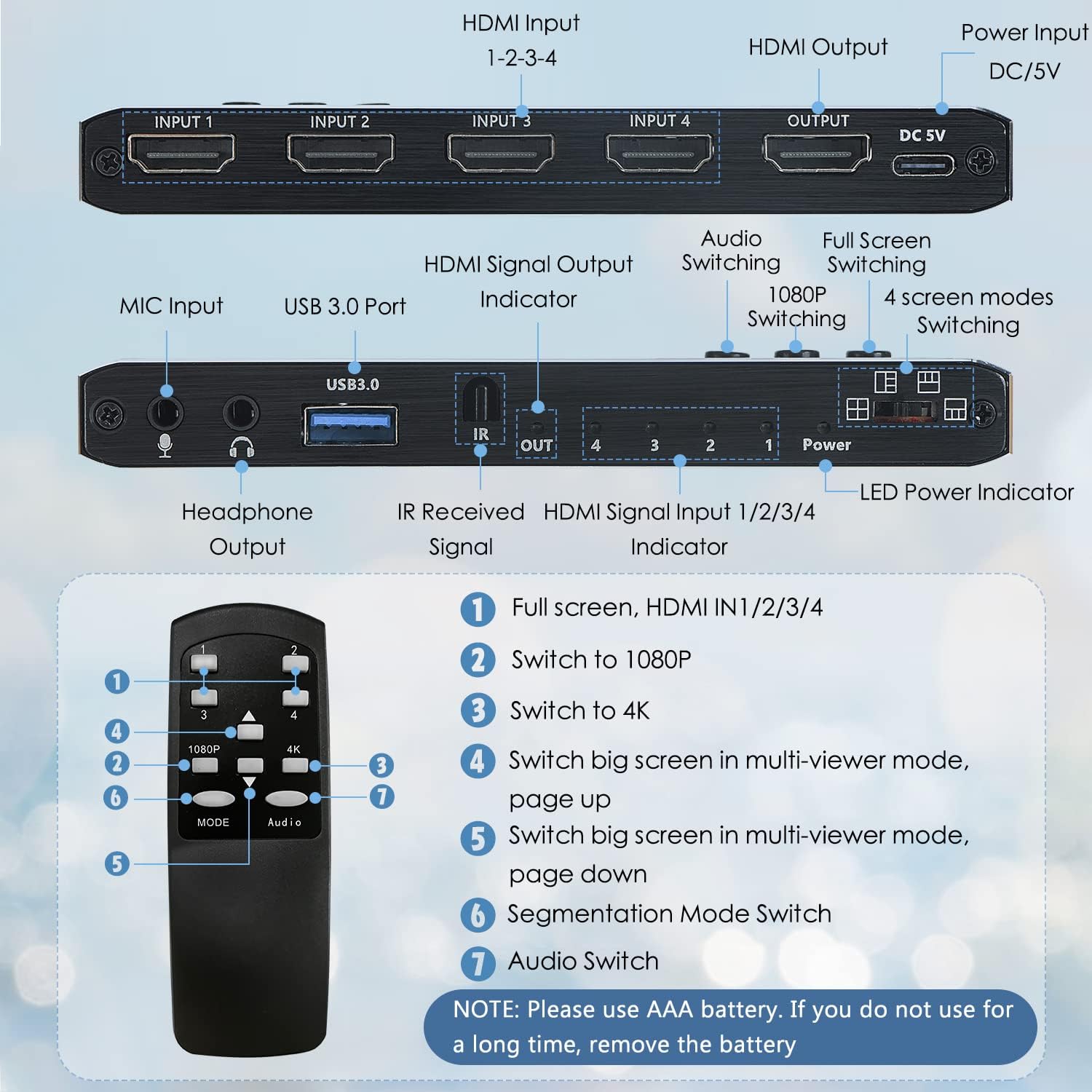

【IR Remote Control】The video capture card is equipped with awireless remote control, which allows you to use this device froma long distance, with a variety of functions combined together,fully functional, this is equipped with the upgraded model, whichcan remotely control video playback, pause, switch inputFunctions such as mouth, very convenient.
【Mic 3.5MM】 Equipped with 3.5MM microphone input and3.5MM audio output, allowing you to give voice explanations andedit explanations when recording videos or live broadcasts, andyou can also listen to the audio of each video, and the sound inthe video can be returned It is transmitted to the ear in order toadjust the volume and sound quality. It is fully functional, verypowerful, and can bring a very strong experience.

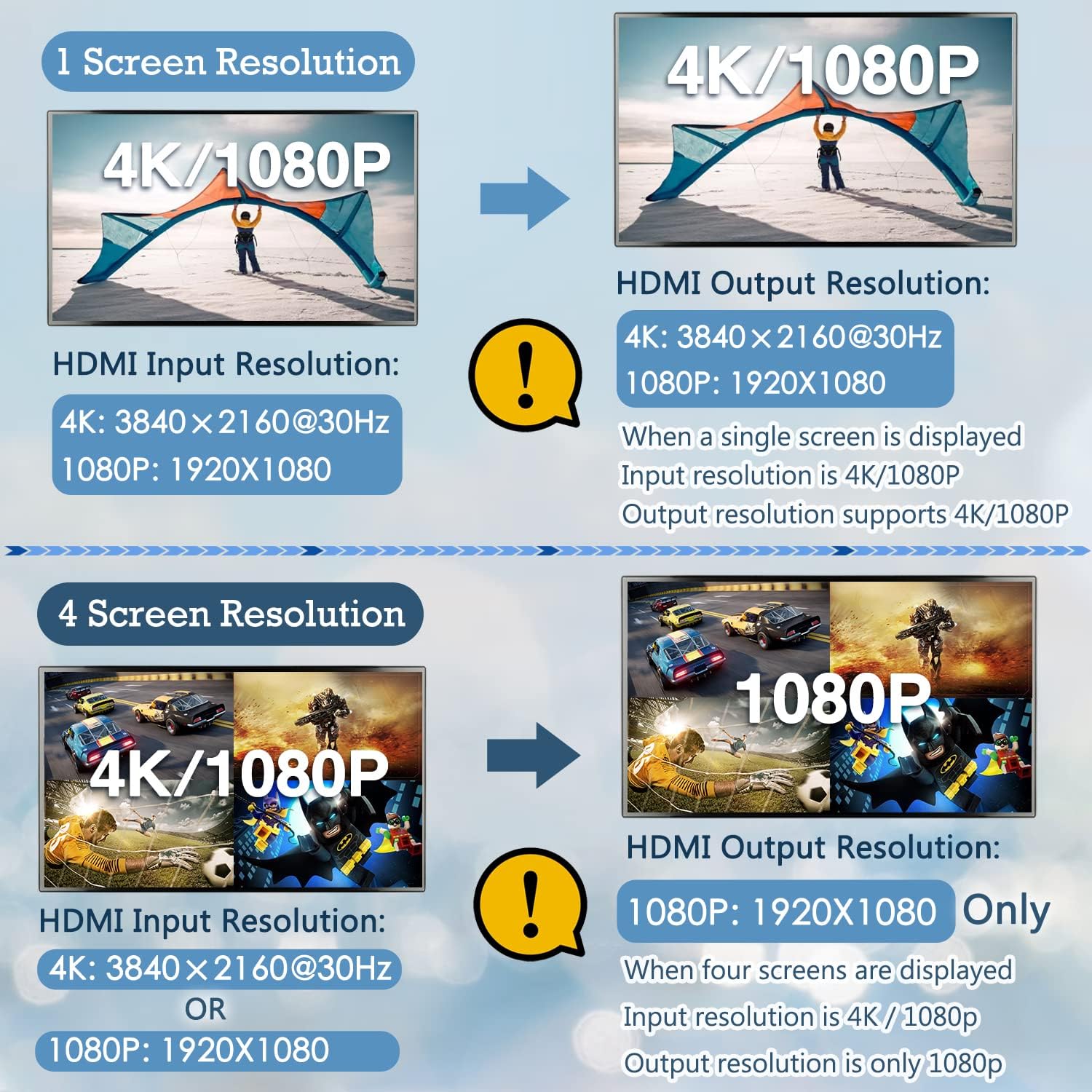

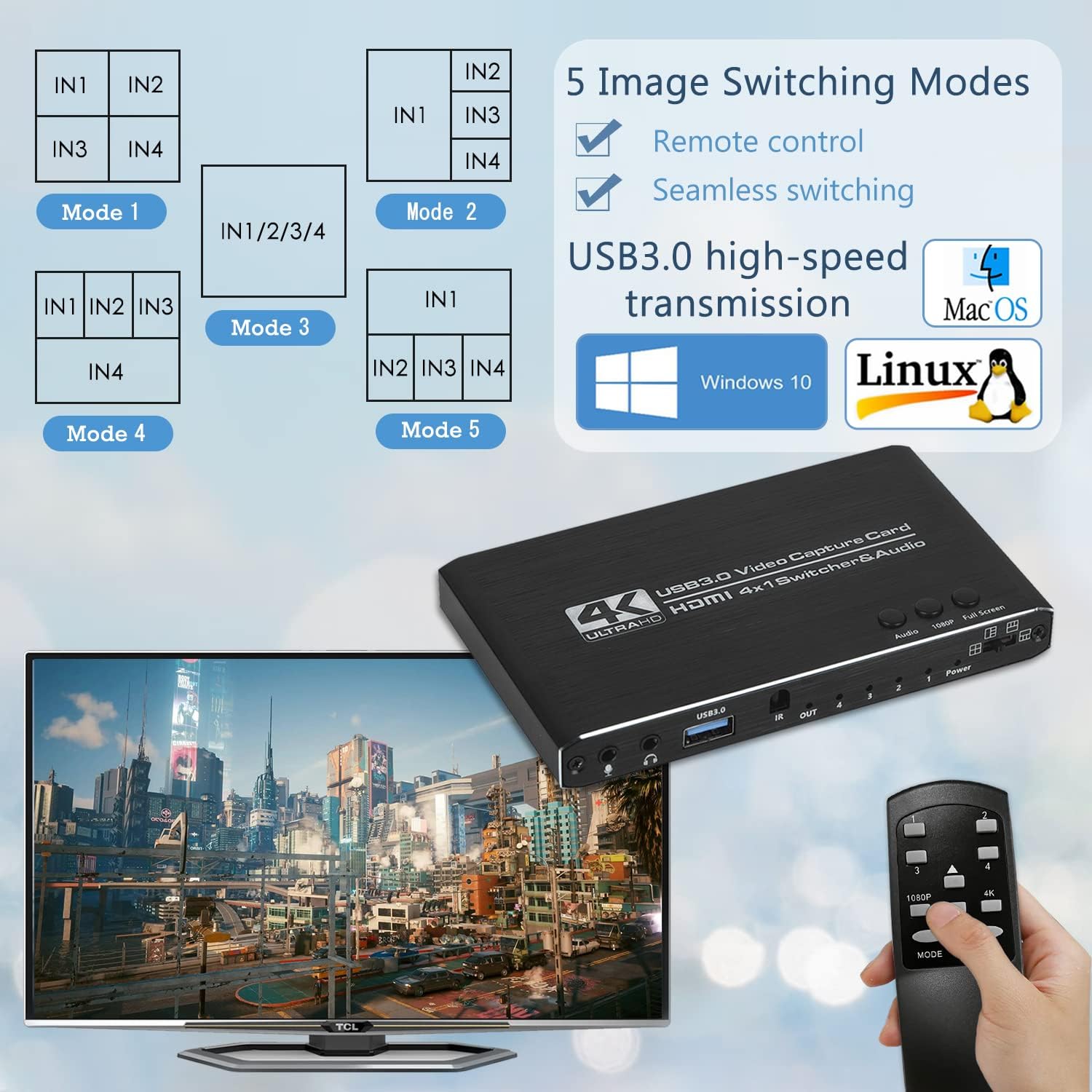

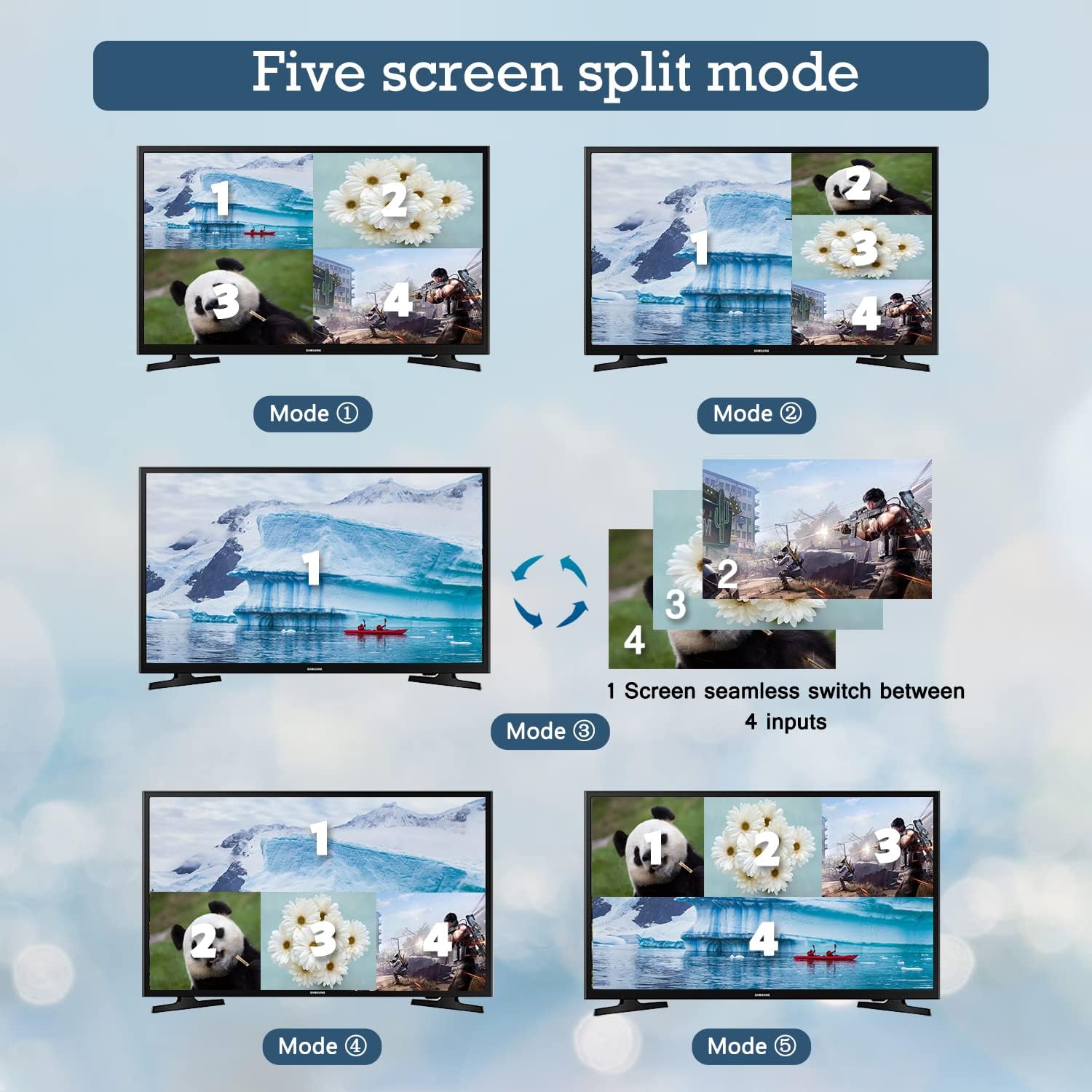

【HDMI video loop out】 HDMI video loop can support up to4K30Hz output. 4 split combination modes, single screen mode,seamless switching.
Specs
Maximum input resolution
4K@60Hz
Maximum Output resolution
4K@30Hz
Support video format
8/10/12bit Deep color
Video output format
YUV、JPEG
Support audio format
L-PCM
PC Hardware Interface
HDMI, USB3.0
Input Interface
HDMI
Support OS
Windows, Android and Mac OS.
Support Acquistion software
VLC, OBS, Amcap, etc.
USB Standard
USB Video Class(UVC) specification; USB video 1 .5 and 1.0 standard
Max working current
0.4A/5VDC
Operating Temperature range
(-10 to +55°C)
Dimension (L x W x H)
64x28x13 (mm)
Weight
21.4g
Hardware requirements：
Desktop:Intel Core i5-3400+NVIDIA GT630
Notebook: Intel Core i7-U 2.0GHz+NVIDIA GT735
Mac:i5 quad-core or above, video card compatible with DirectX 10，sound card, 4GB DDR3 or more
