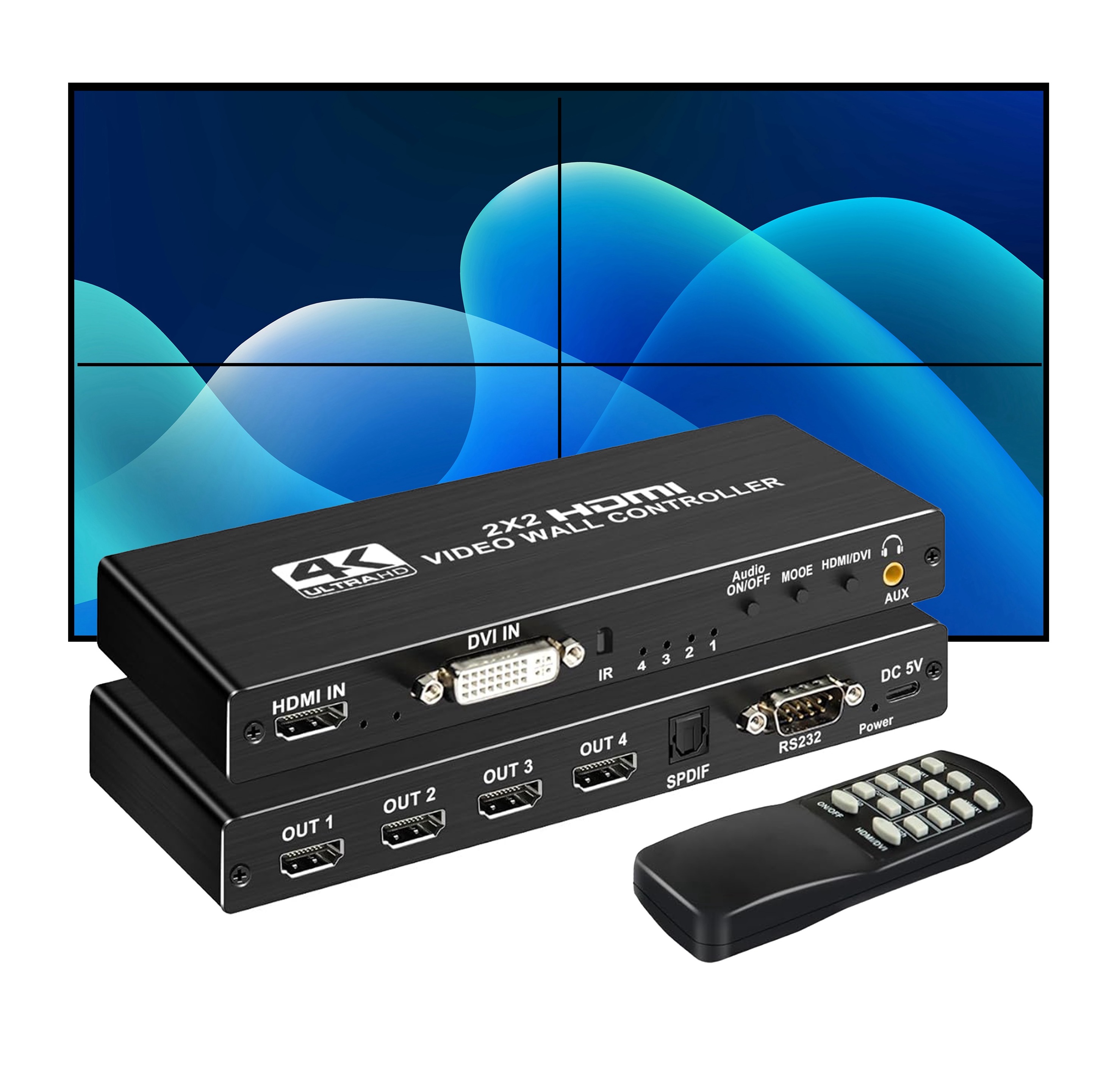

The 4K 2X2 video wall controller, support 1-way HDMI or DVI 2.0b input splitter and distributes 4 HDMI 1 HDMI output, source the to 2 main HDMI displays function is to divide a complete HDMI, DVI HD image signal into 4 blocks and assign to 4 video display unit (such as rear projection unit, LCD TV, etc.). Complete with 4 HDMI high-definition video display units to form a large dynamic image screen.
Package Content
SKU:
S-ST-HDV-202B
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Tweet about #SYONG products
Feature

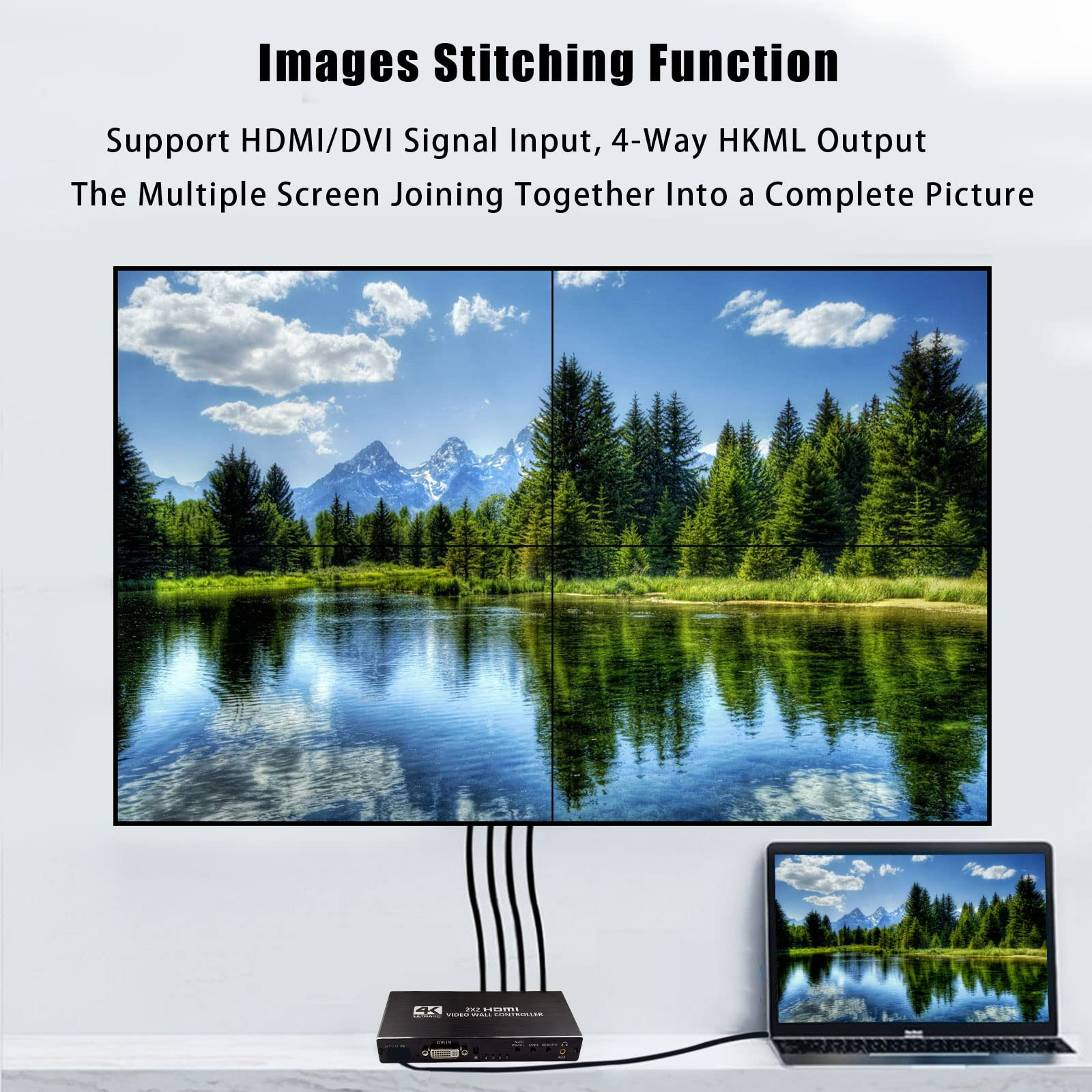

*【4K Large Screen Splicing】This 4K 2x2 video wall controller supports 1 HDMI or 1 DVI input (such as PC, laptop, DVD, etc.) and 4 HDMI outputs. The video wall splicer can split a full HDMI high-definition image signal into 4 blocks and distribute them to 4 video display units, such as rear-projection units, LCD TVs, etc.(Note: The product's memory function has been repaired, and it does not require reconfiguration after power disconnection).

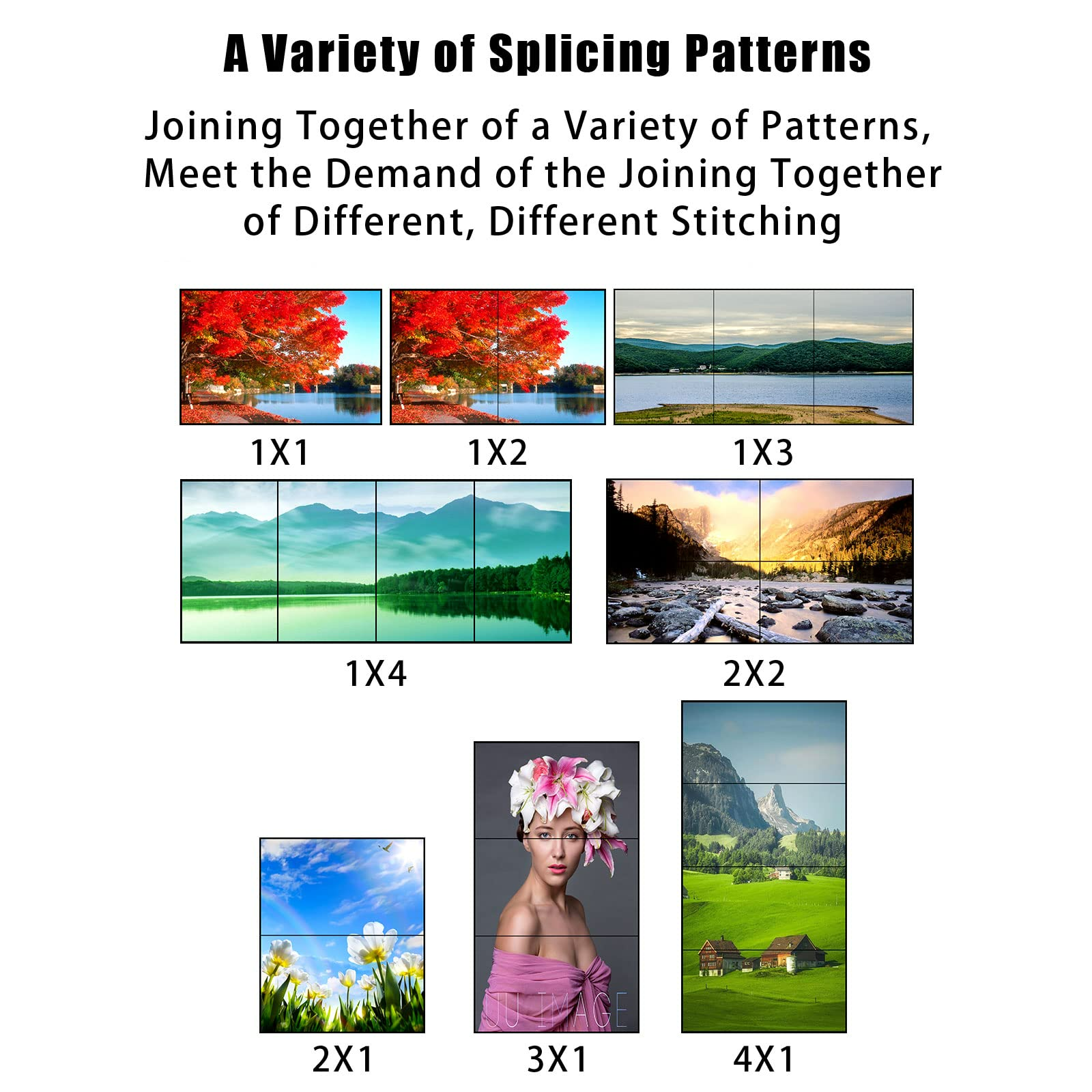

*【8 Display Modes】Multiple splicing modes: 2x2, 1x2, 1x3, 1x4, 2x1, 3x1, and 4x1 meet different splicing needs. It plays a crucial role in commercial video displays and security fields. In addition, advanced remote control through RS232 is also supported.
*【180° Screen Rotation & Edge Masking】If you use a high-definition TV as a screen, it allows you to rotate the screen 180°. Excitingly, you can install the TV in the direction of the thinnest edge. But your input device must be 1080P@60Hz. Note: 180° rotation can only be used in 2x2 mode.
*【4K@30Hz High Definition Resolution】Supports input video resolution of 3840x2160@24/30Hz, 1080P@25/30/50/60Hz and output resolution of 1080P@60Hz (per display). It restores the original appearance of the image and presents a natural and complete picture without missing any details, with realistic and clear colors.
*【Supports 5.1CH Audio Channel】The video wall controller also has a separate optical SPDIF port and 3.5mm stereo audio port that can be connected to external speakers, headphones, amplifiers, soundbar speakers, etc. It supports 5.1CH extraction mode but set the resolution of all screens to 1080p to ensure normal operation.

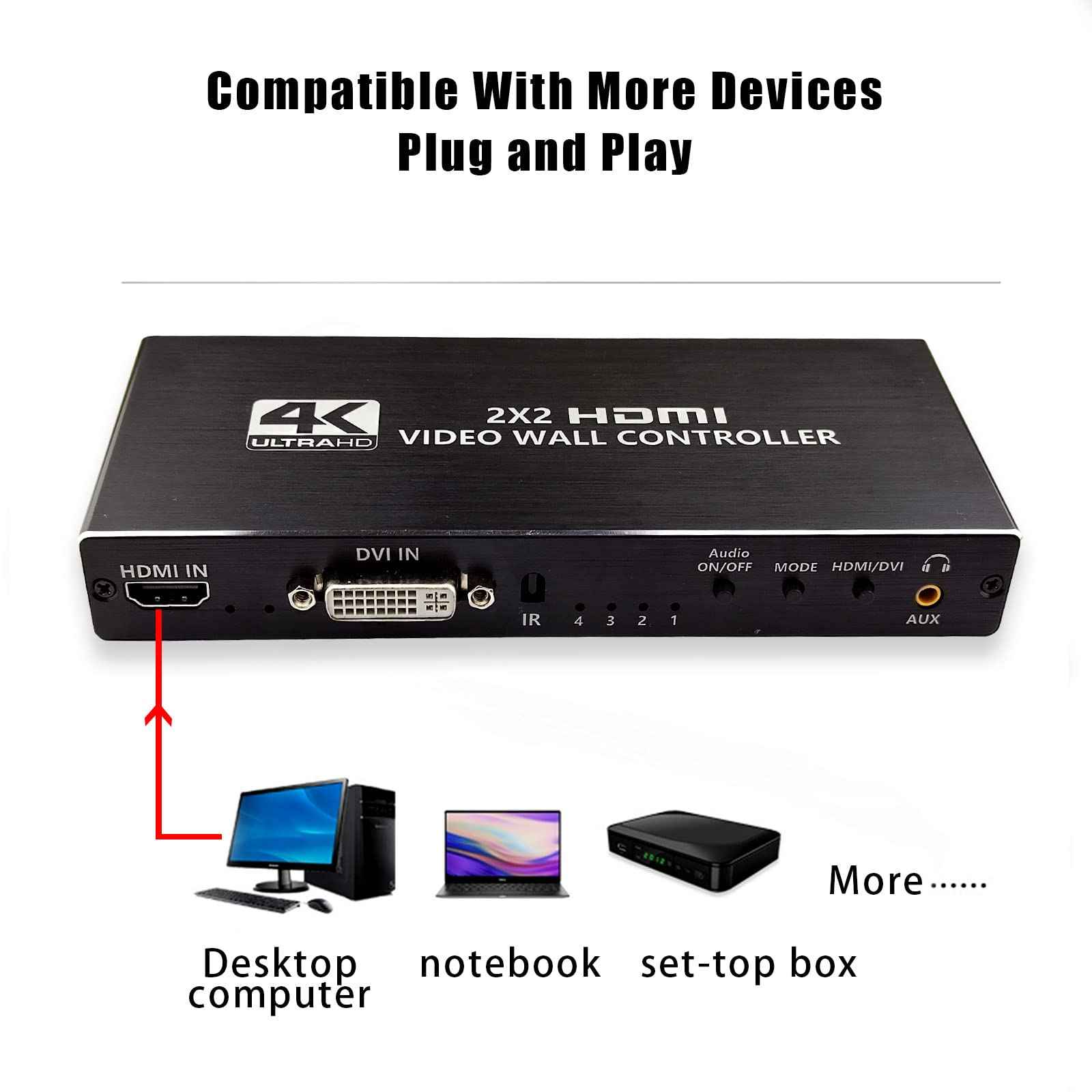

*【Easy to Set Up & Operate】Plug-and-play design, no drivers needed. This video wall controller comes with a remote control (battery not included) for convenient operation. You can also adjust directly by pressing the buttons on the controller. One-year warranty and hassle-free after-sales service.
Specs
Input
Supports one DVI input, One HDMI input.
Output
Support four HDMI output, one 3.5mm stereo output.
Support 5.1CH audio output over optical fibers. Support RS232
