4K60Hz 1 in 4 out HDMI2.0 Splitter with EDID Switch
No items found.
4K60Hz 1 in 4 out HDMI2.0 Splitter with EDID Switch
$
29
USD
Product Description
4K@60Hz HDMI Splitter 1×4 (18.2Gbps) duplicates one source to four identical displays with HDR, advanced audio support, long-distance signal regeneration, and flexible EDID switching with 16 modes for different resolution needs.
Package Content
SKU:
S-SP-4K-104C
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Tweet about #SYONG products
Feature

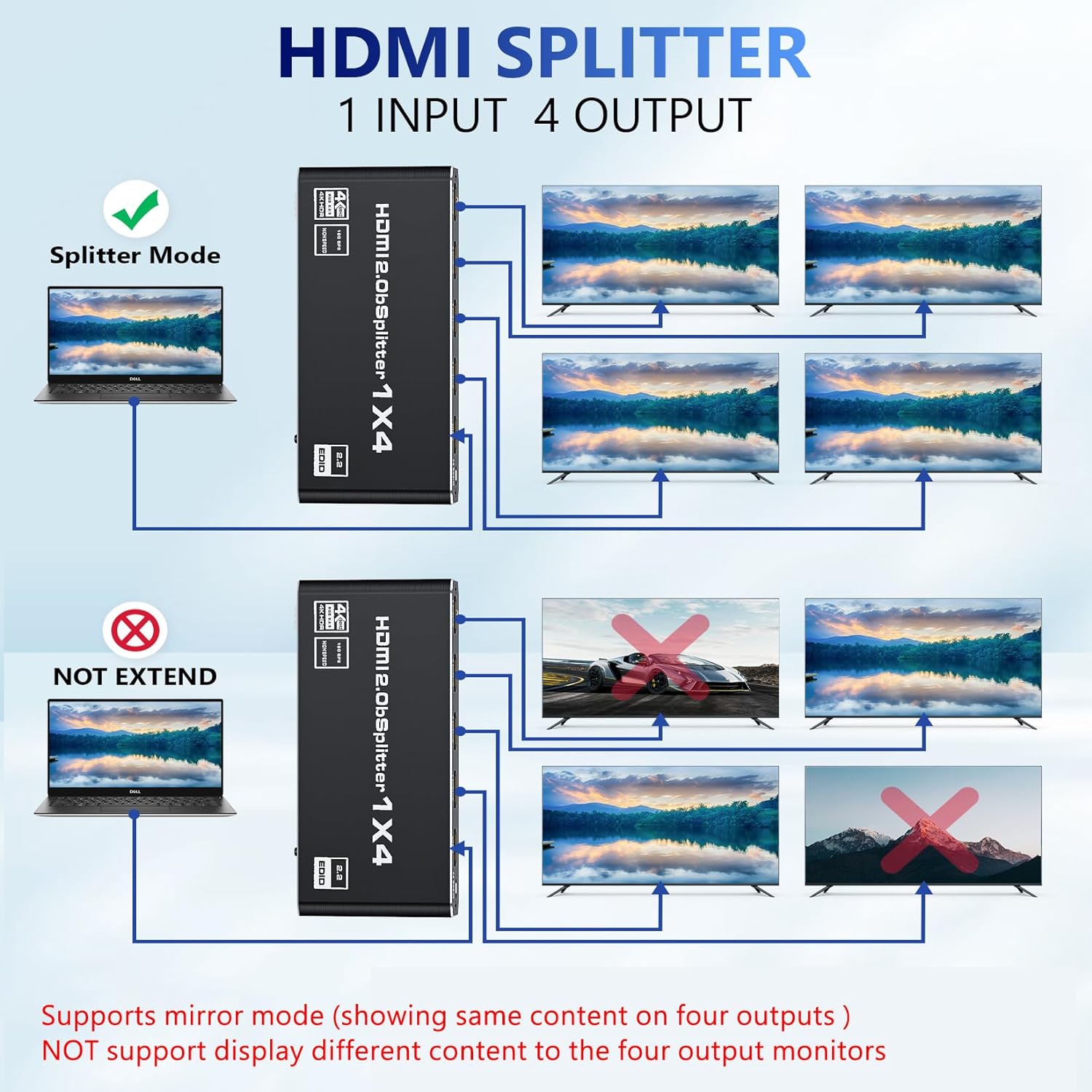

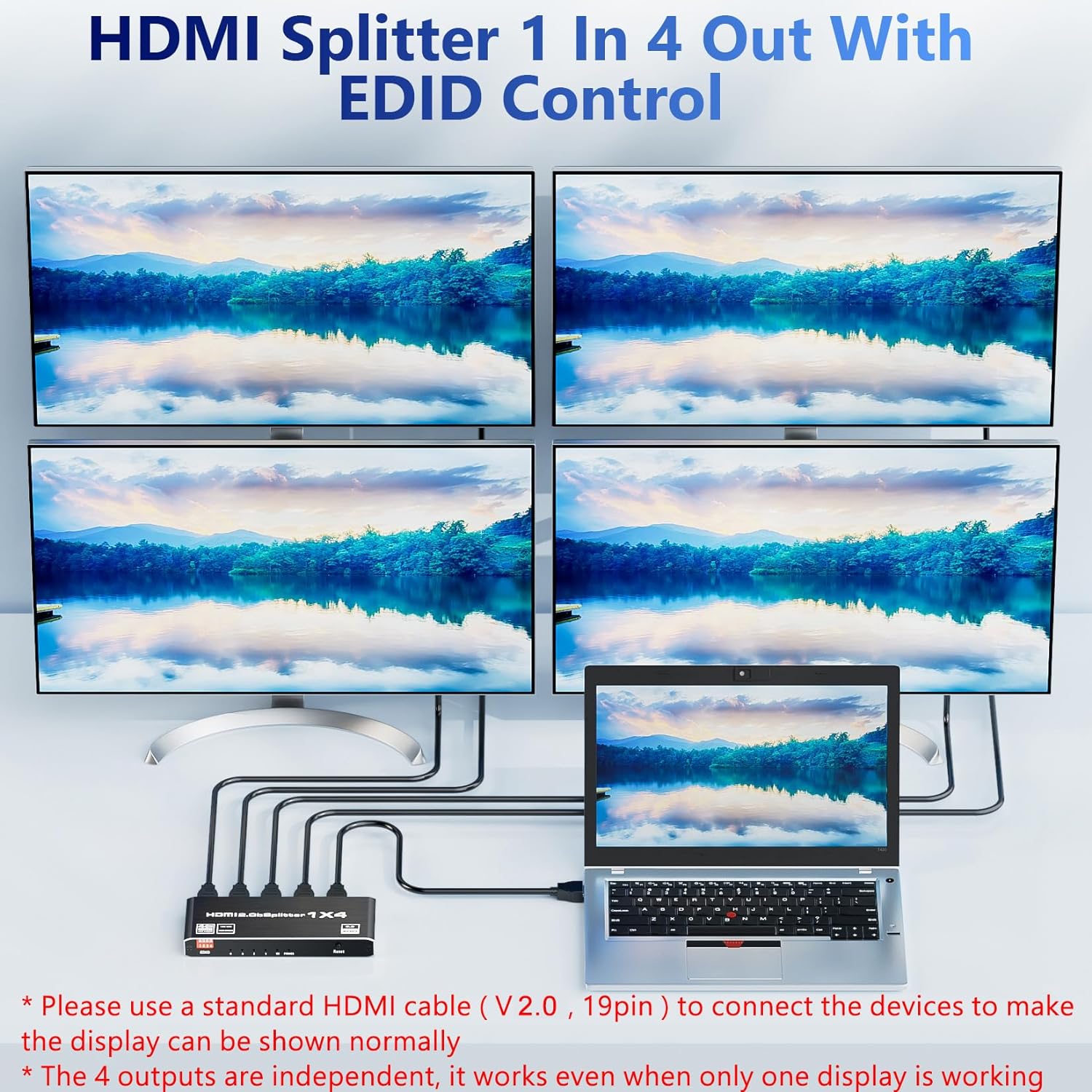

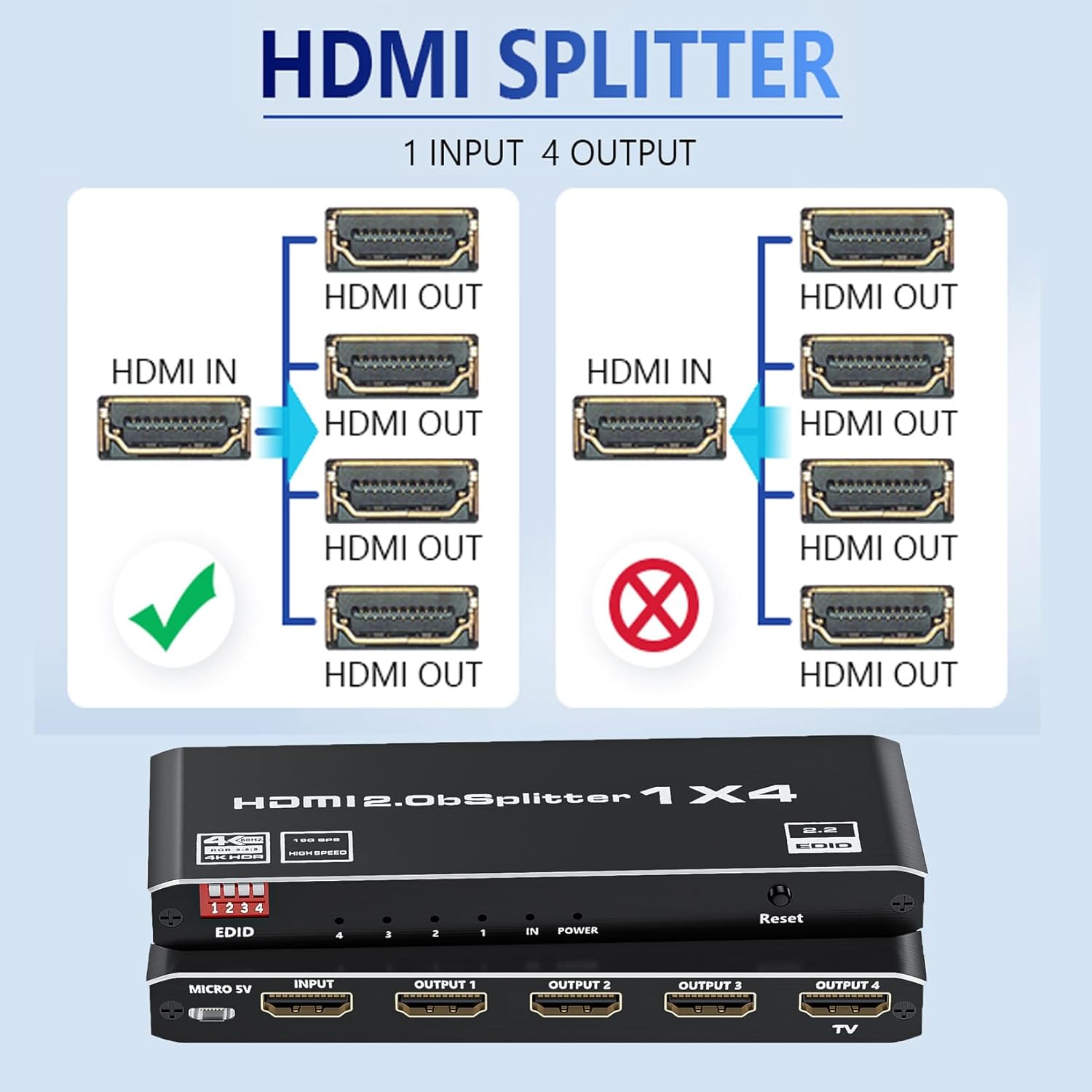

* 18Gbps Splitter HDMI 1X4: This HDMI spliter 1 in 4 out splits one input signal to four HDMI output signals. Complies with the HDMI 2.0 and HDCP 2.2 standards with 18Gbps bandwidth. 4 outputs are independent, it works even when only one display is working (⚠️Only support MIRROR mode)
* 4K HDR 8:8:8: HDMI splitter 4K mirrors four 4K@60Hz (backward also compatible) displays without any loss of video and audio. Also supports multichannel audio streams. Also support DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD Vision. Delivering breathtaking visuals and audio to you

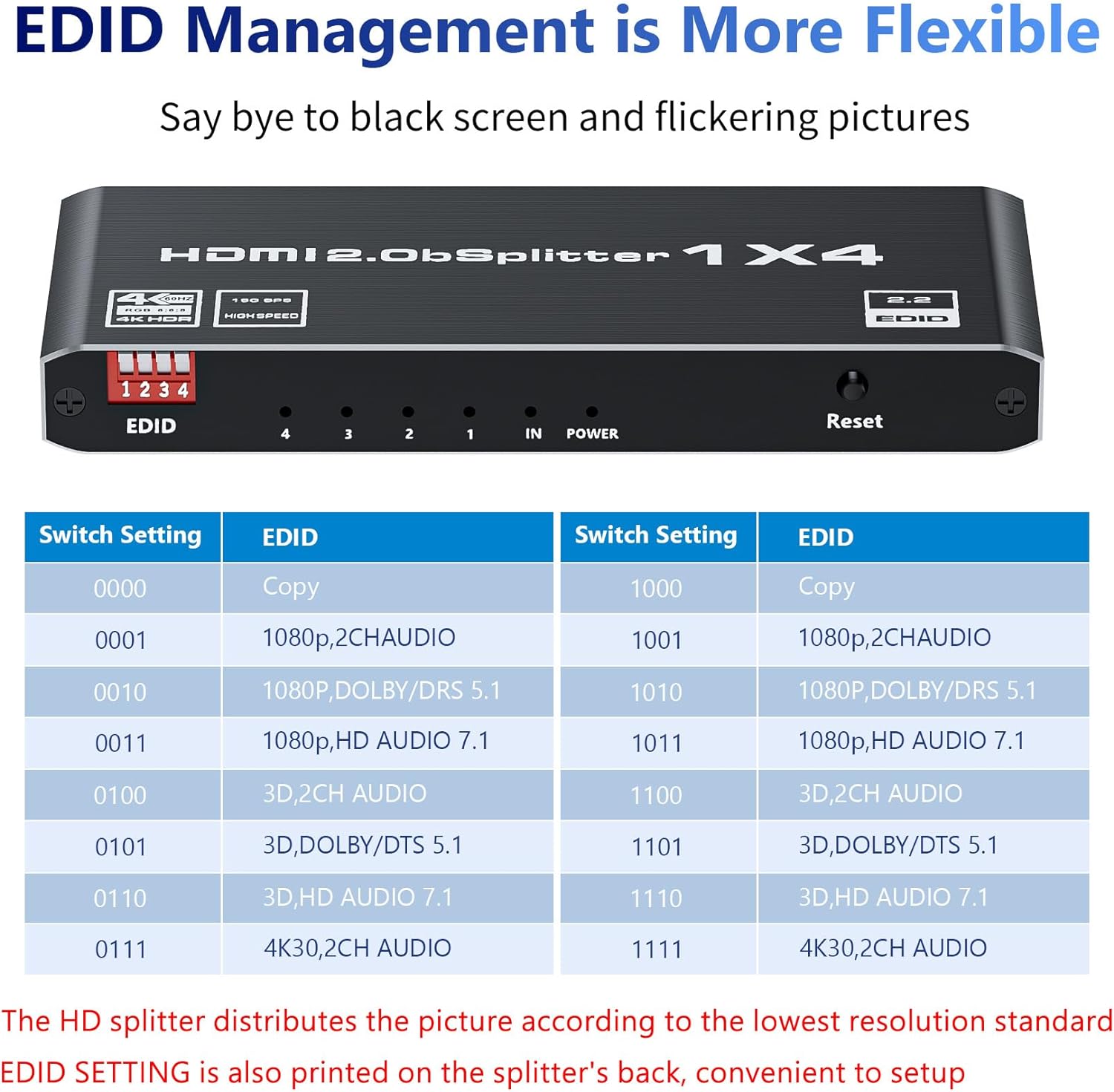

* EDID Control: Allows you to pre-setup the proper EDID setting between monitors of different resolution. With powerful compatibility and flexible adaptation in order to better work under complex application scenes

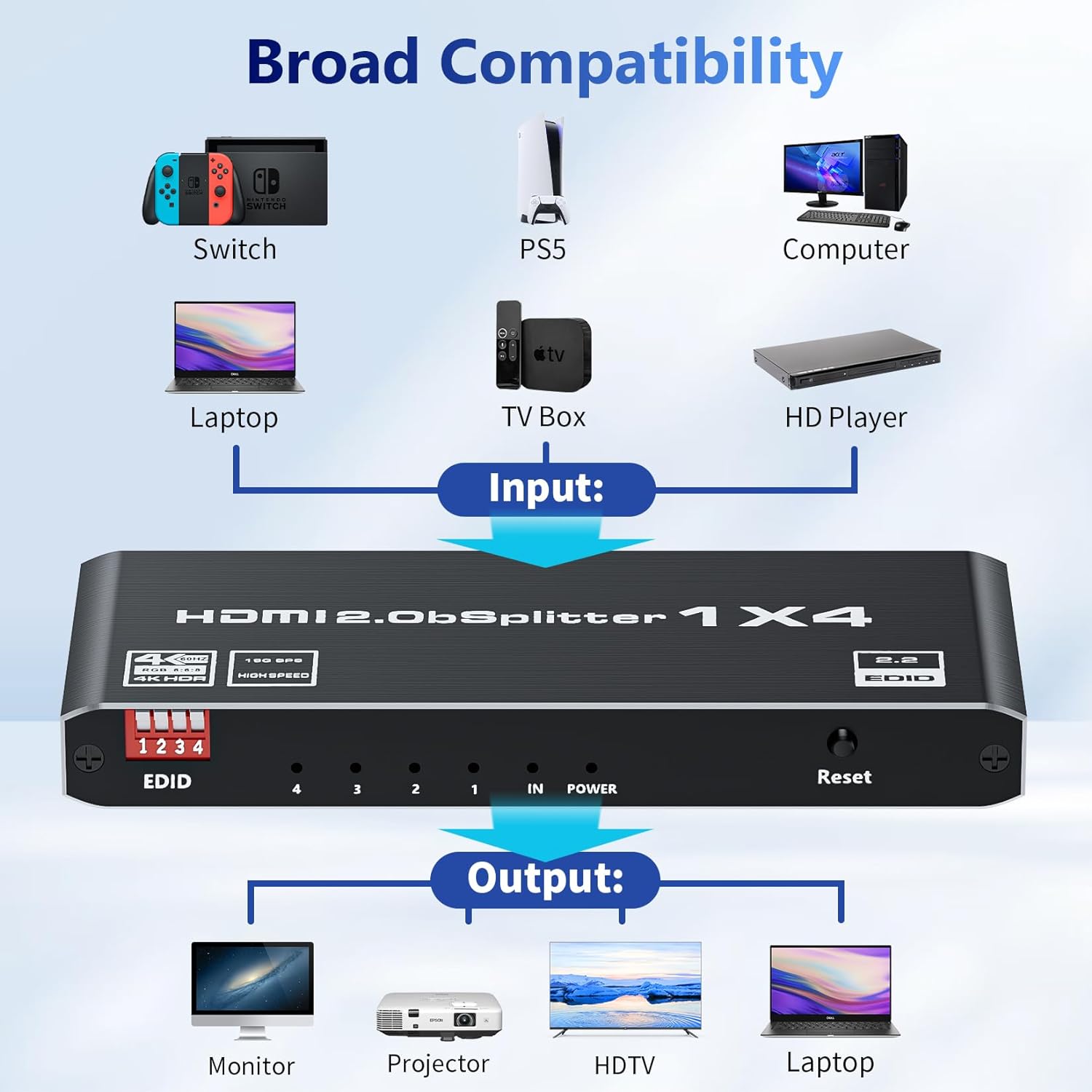

* Compatible with most HDMI devices such as Blu-ray player, TV BOX, XBOX, PS4/5, PC, Firestick, HDTV, projector, monitor, etc. Suitable for exhibition, classroom, presentation, shopping malls, gaming, conference, education, bar and home theatre, etc
* Long Distance Transmit: With AWG26 HDMI standard cable, in the situation of 1080p, the input cable can reach up to 15m, output cable distance can reach 25m; if the resolution is 4K, the input cable can reach up to 8m, output cable distance can reach 15m
Specs
HDMI version
HDMI 2.0b
HDMI resolution
up to 3840*2160/60Hz (RGB 4 4 4)
Support video color format..
24bit/deep color 30bit, 36bit
Support audio format.
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth
600MHz
Max baud rade
18.5 Gbps
Input/Output TMDS signal
0.5~1.5Volts p-p(TTL)
Input/Output DDC signal
5Volts p-p(TTL)
Input cable distance
≤10m AWG26 HDMI standard cable
Output cable distance
≤15m AWG26 HDMI standard cable
Max working current
2A
Power adapter format Input
AC (50HZ, 60HZ) 100V-240V; 100V-240V; Output : DC5V/2A
