Feature

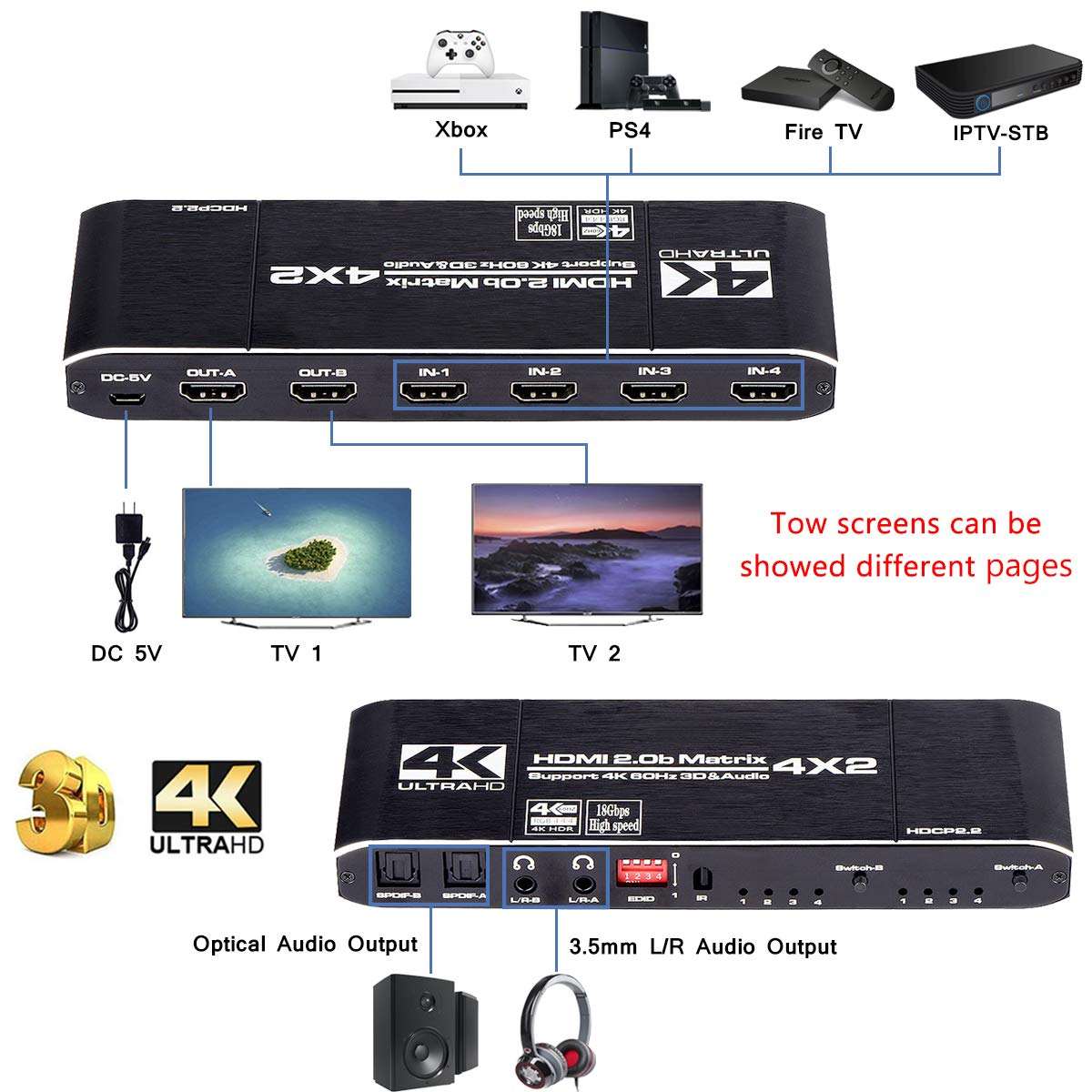

4×2 HDMI Matrix Switch: Connects 4 HDMI sources to 2 displays; supports switch/split routing for flexible setups.
4K@60Hz Ultra HD: Supports 4K@60Hz (3840×2160@60Hz), HDR, RGB 4:4:4, 3D, Ultra HD.
High Bandwidth Performance: 18.5Gbps data rate, TMDS clock up to 600MHz; deep color 8/10/12/24/32/48-bit.

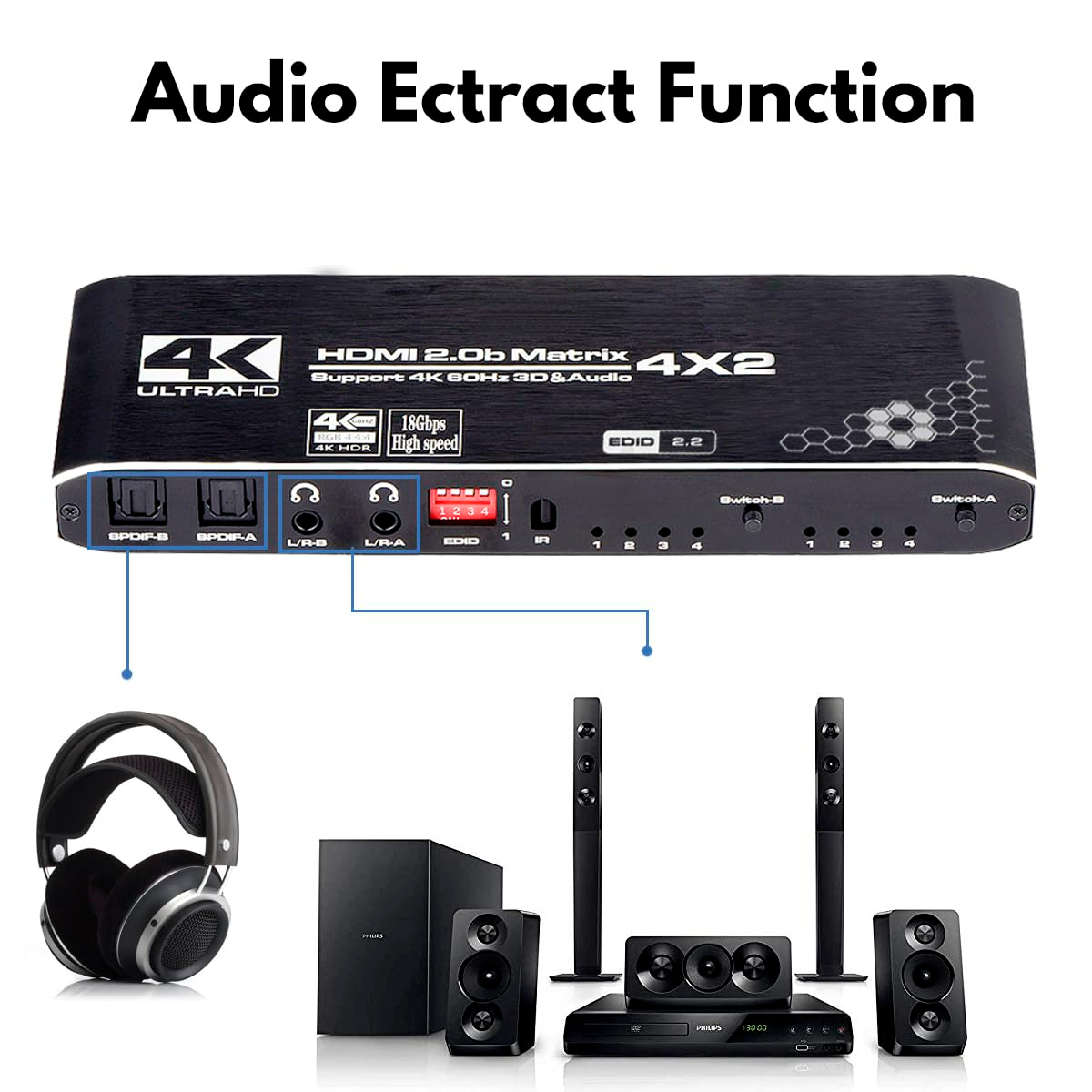

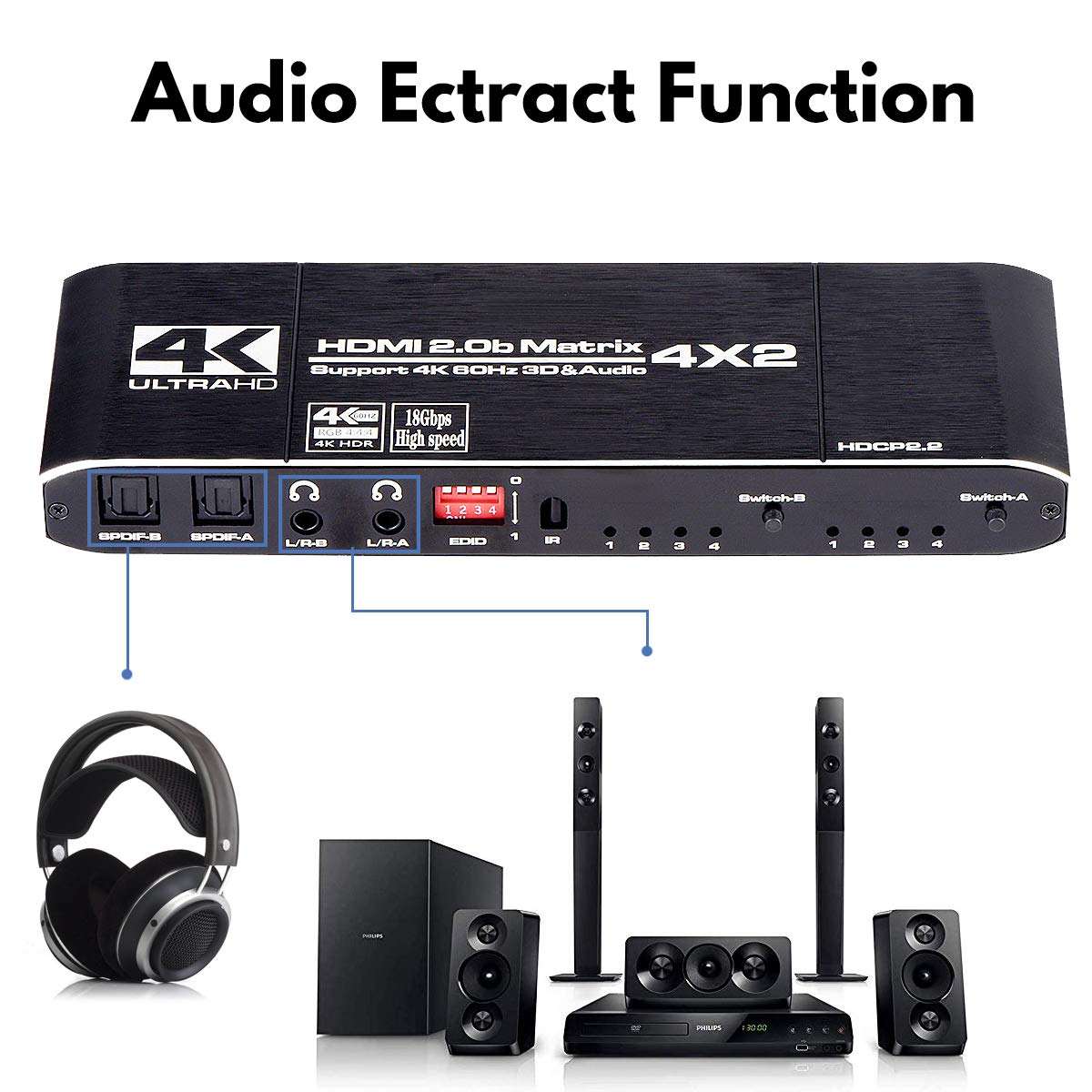

Audio Extraction: Extracts HDMI audio via 2× Toslink optical (SPDIF) + 2× 3.5mm L/R outputs; supports LPCM / Dolby / DTS 5.1.

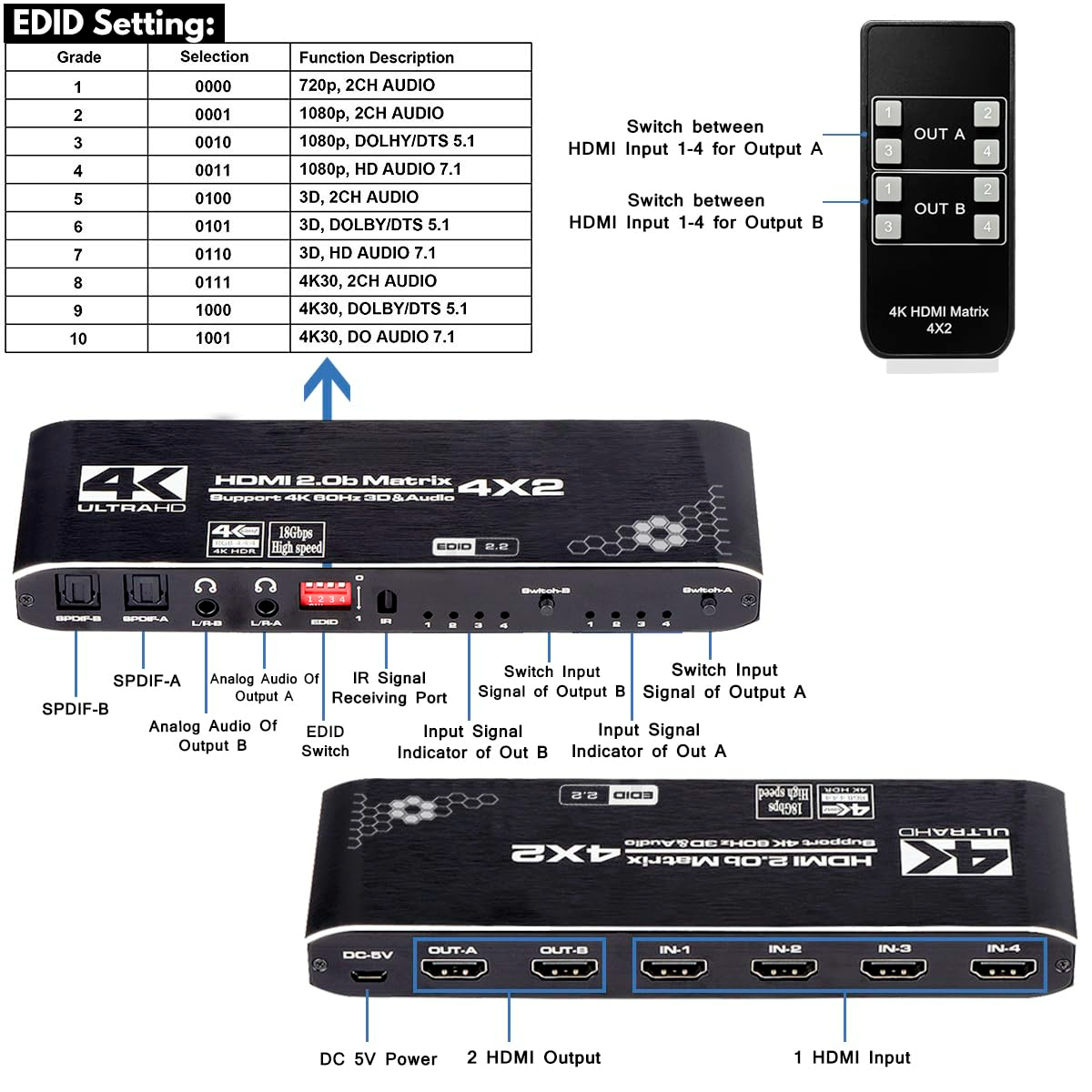

Smart EDID Management: EDID setting is based on Output A; choose the correct EDID mode for both displays, then restart the matrix after setting.
Wide Compatibility: HDMI 2.0b + HDCP 2.2; inputs for PC, PS3/PS4 Pro, Xbox/Xbox One, Nintendo Switch, Fire TV, Apple TV, etc.; outputs to HDTVs, projectors, monitors.
After-Sales Support: Responsive customer service for troubleshooting and assistance.
‍

HDMI Input	4
HDMI Outptut	2
HDMI Version	HDMI2.0b HDCP2.2
HDMI Resolution	up to 3840*2160/60Hz
Support audio format	LPCM/DTS/Dolby-AC3
Color Depth	8/10/12/24/32/48bit deep color
Operating Temperature range	(-10 to +55°C)
Operating Humidity range	.5 to 90%RH （No Condensation）
