GZ SYONG

Feature

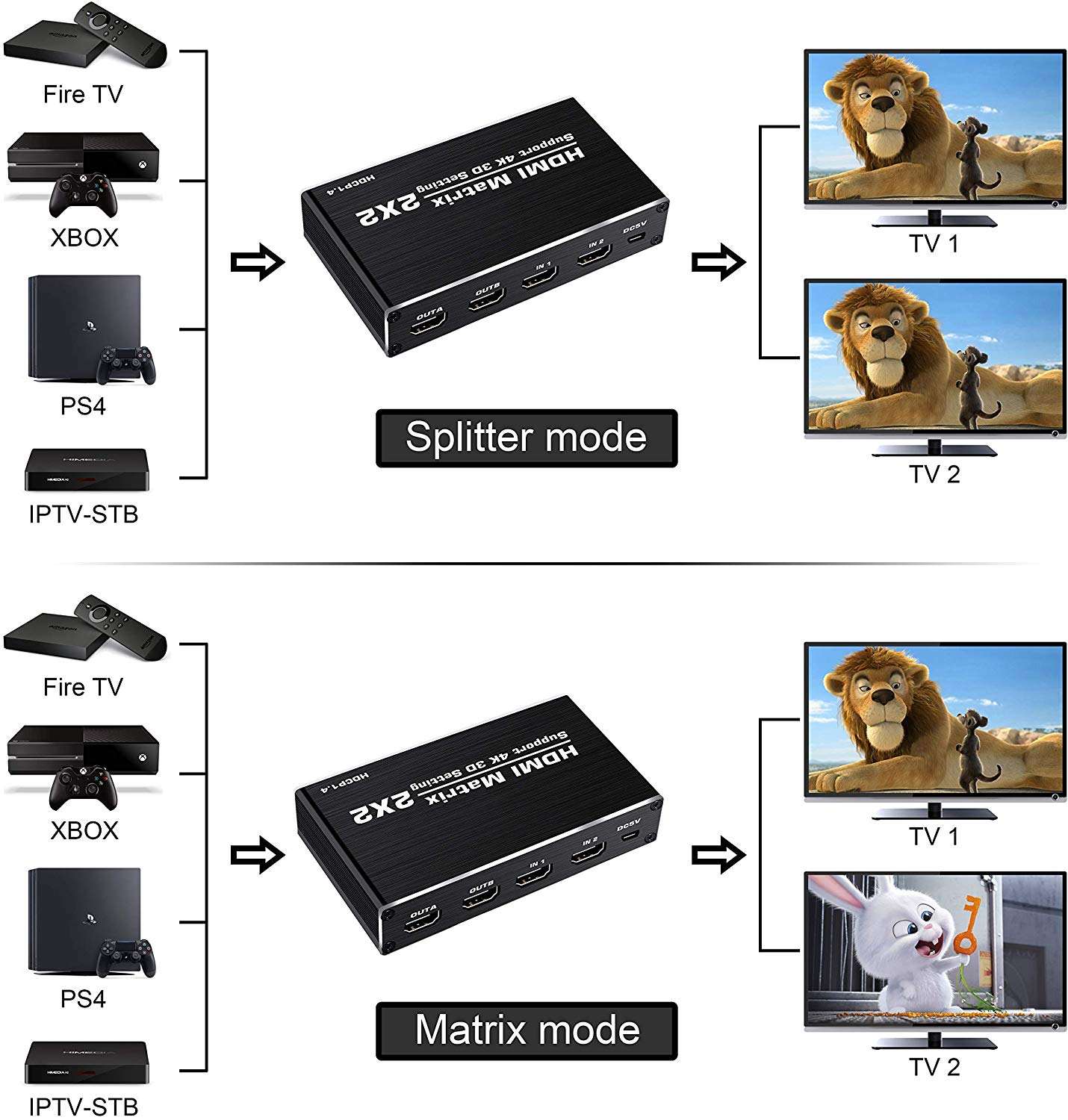

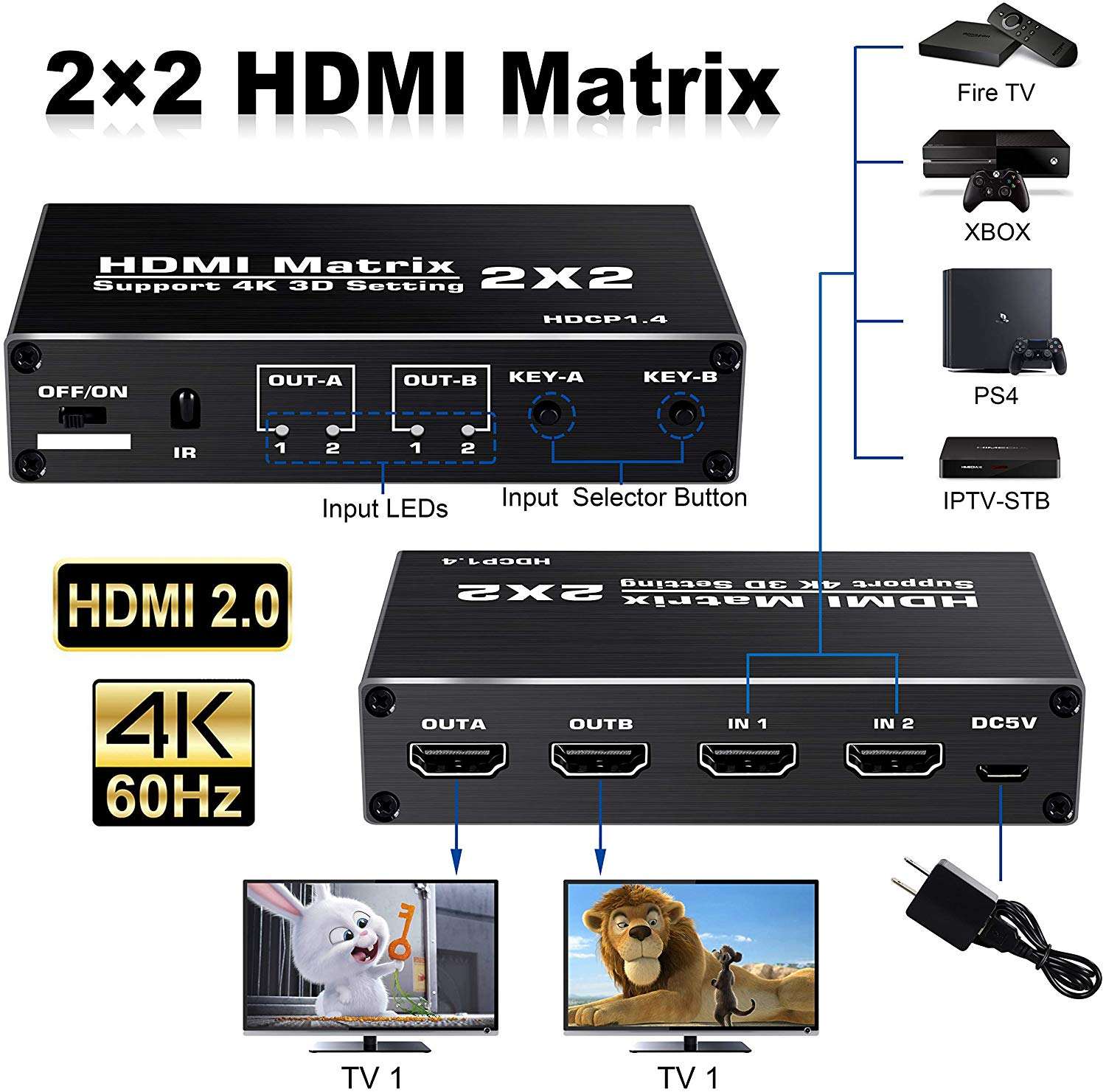

HDMI Matrix 2×2 (2 In 2 Out): Connects 2 HDMI sources to 2 displays; supports switching or splitting signals to both outputs.
Resolution Support: Up to 4K@60Hz (YUV 4:2:0), also supports 4K@30Hz, 1080P, 3D.
Standards: HDMI 1.4 / HDCP 1.4, max data rate 10.8Gbps.
Important Note: Mirror mode only (no PC/Laptop extended display). Not supported: HDCP 2.2, HDMI 1.4b / HDMI 2.0.
Audio Support: Dolby Digital, DTS, DTS-HD, DSD, Dolby TrueHD.

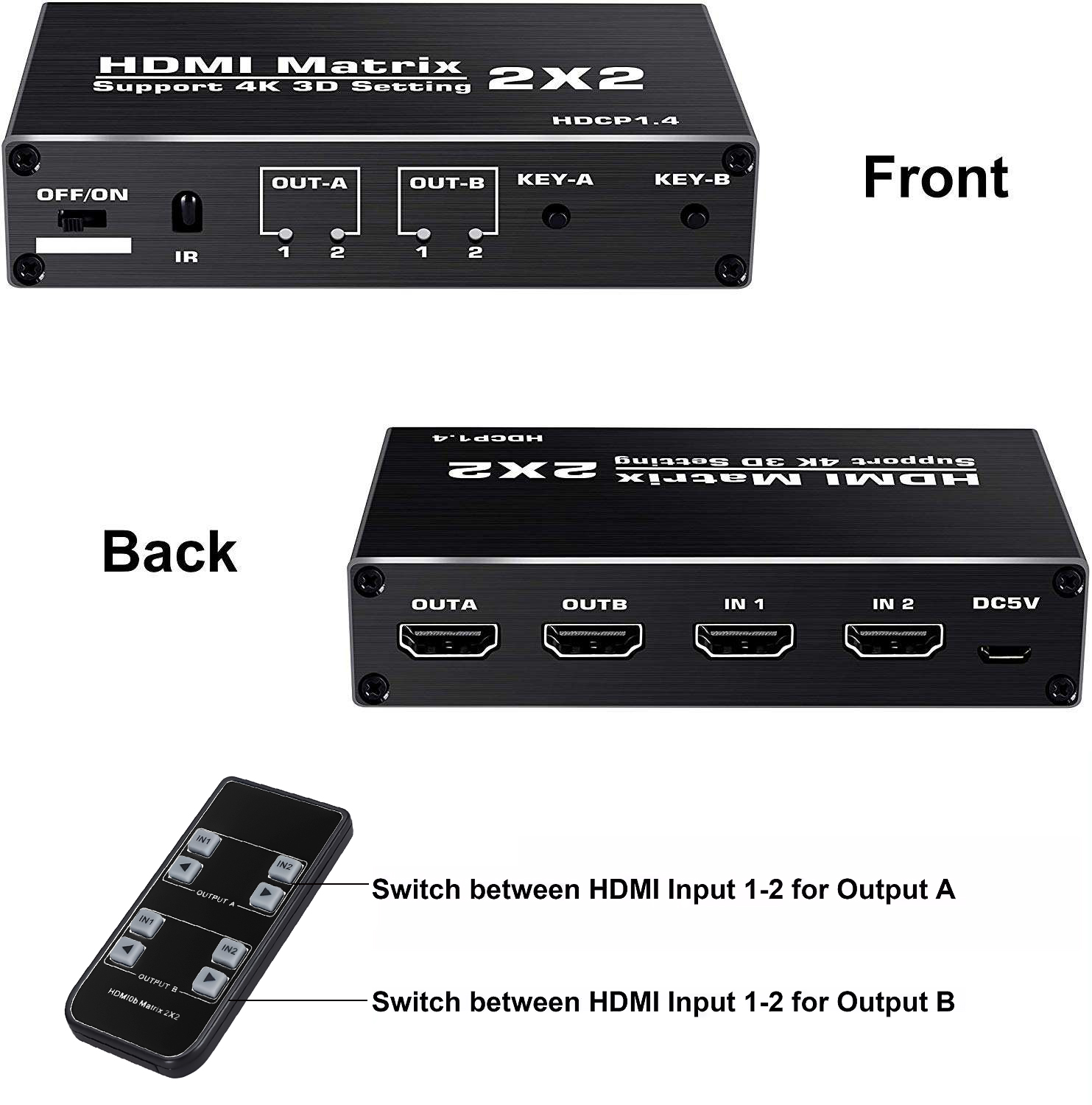

Control & Operation: IR remote + button control; plug & play with DC power; switches within ~3 seconds with LED status indication.
Compatibility & Use Cases: Works with PC, TV, projector, PS3/PS4, Xbox, Blu-ray/DVD, monitors; ideal for home theater, office, school, meetings, signage.

‍

HDMI Input	2
HDMI Ooutput	2
HDMI Version	HDMI2.0 HDCP1.4
HDMI Resolution	up to 3840*2160/60Hz YUV4:2:0
Color Depth	8/10/12/24 bit deep color
Material	Aluminum Alloy
Color	Black
Operating Temperature range	(-10 to +55°C)
Operating Humidity range	.5 to 90%RH （No Condensation）
Compatible Devices	Projector, Gaming Console, Monitor, Television, DVD Player
