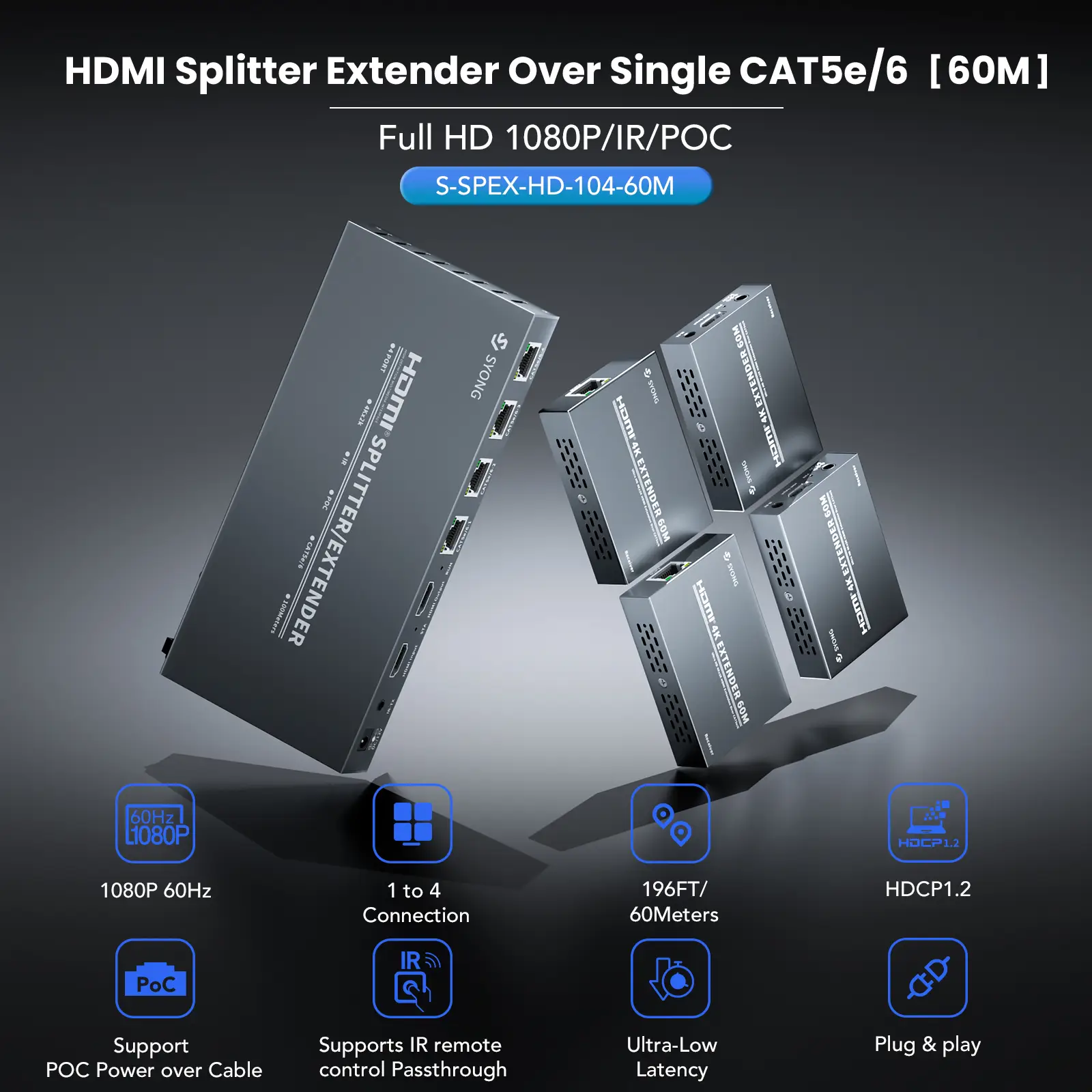

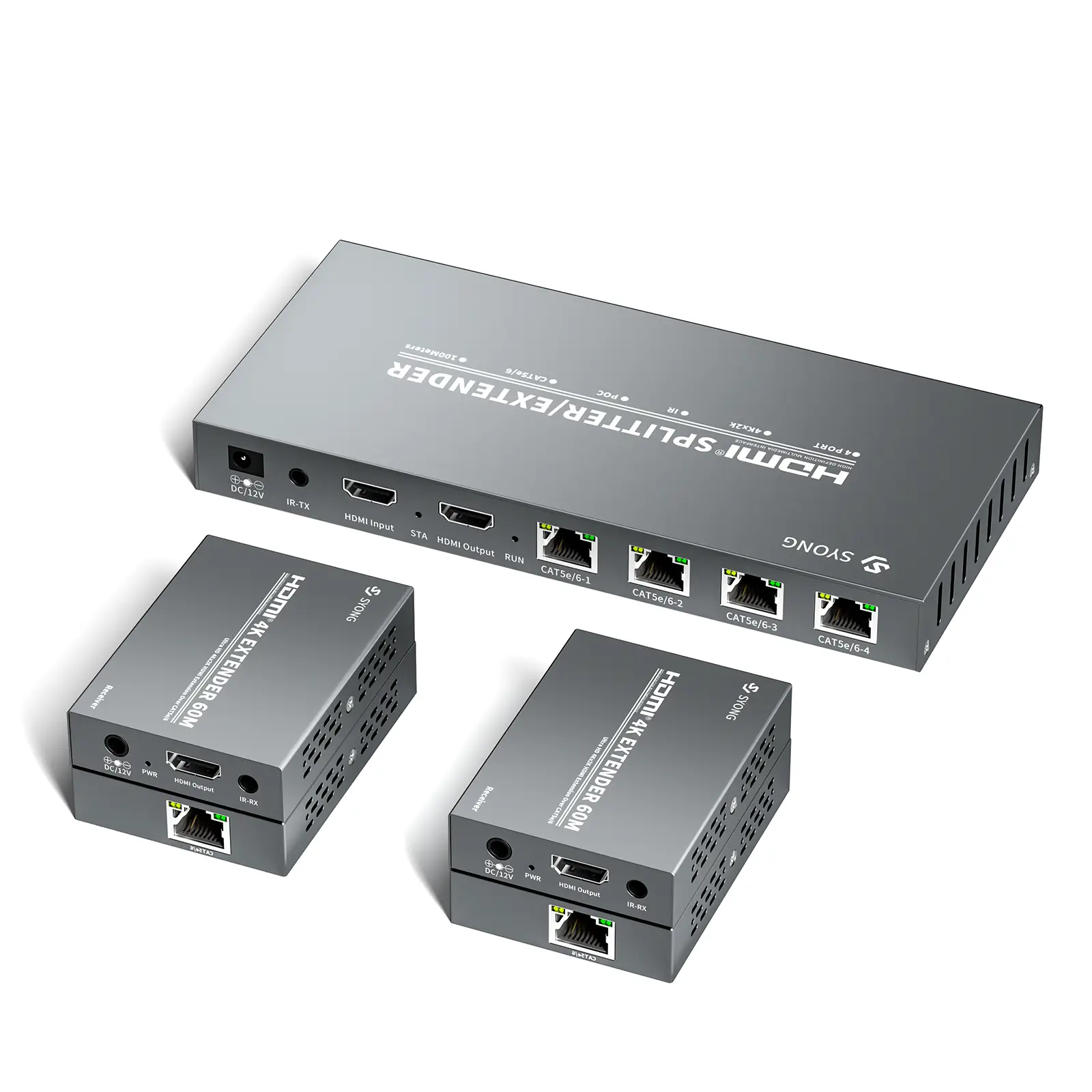

1080P 1x2 HDMI™ Extender Splitter (Loop)-60m(196ft) with one-way IR control

Feature

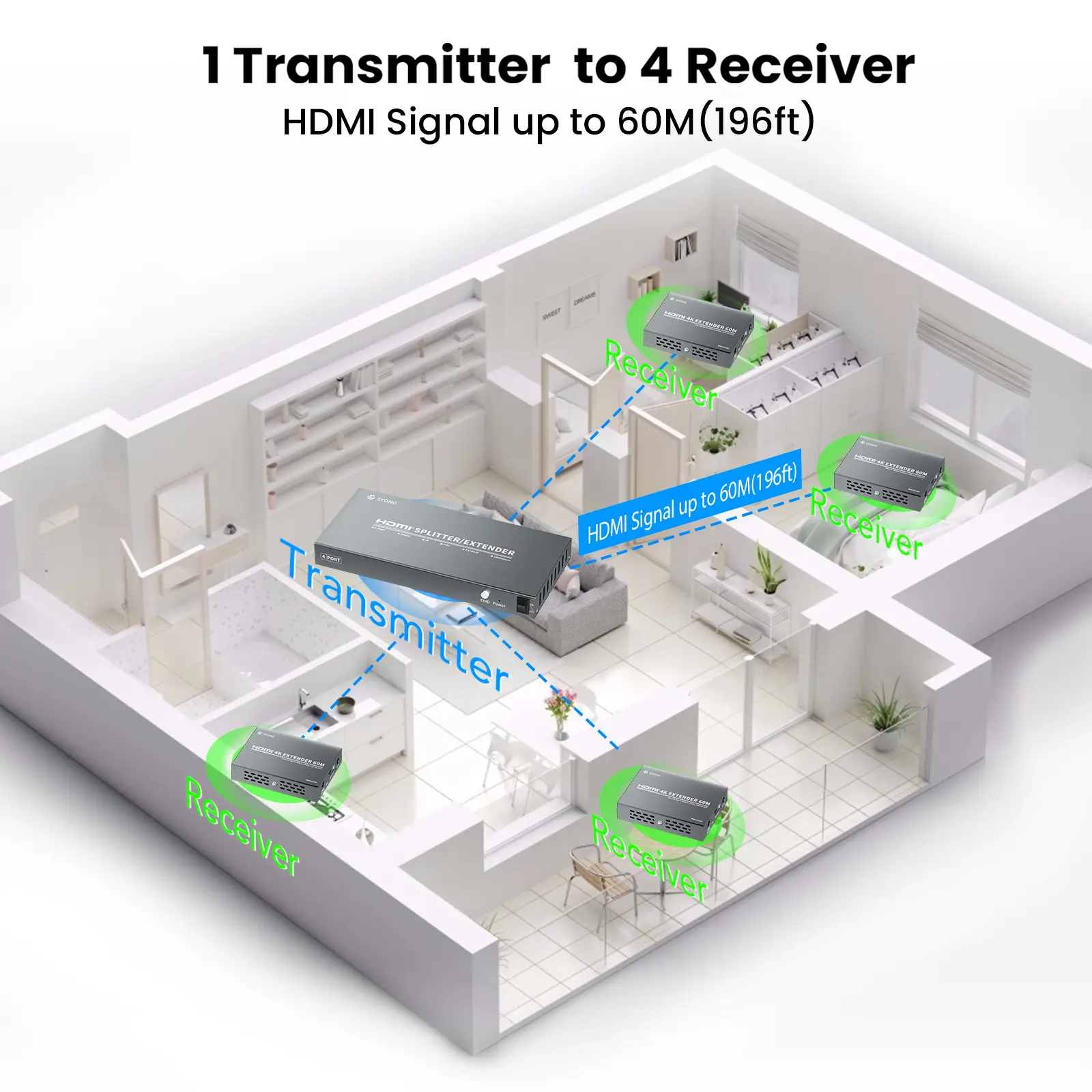

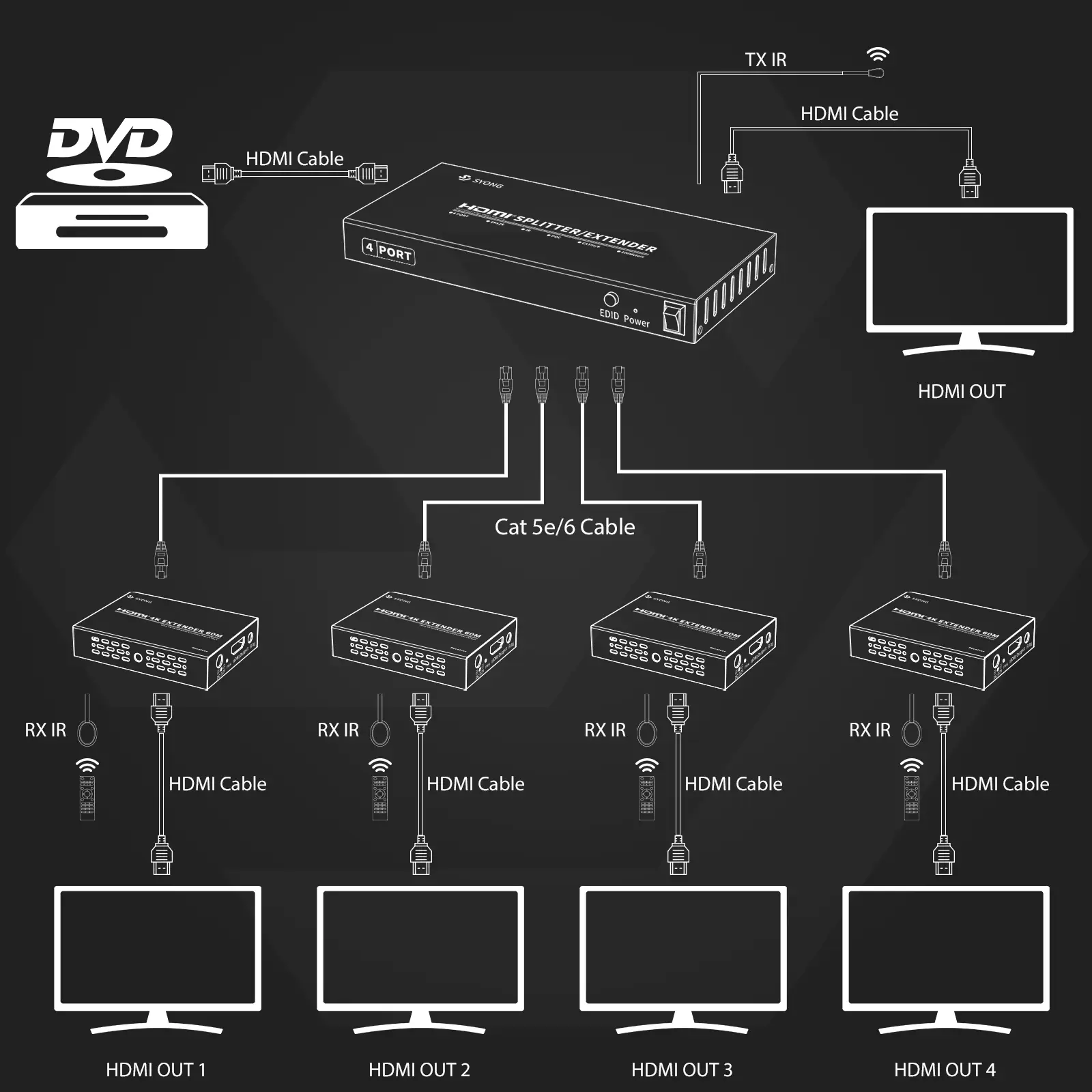

1 HDMI Input + 1 Loop Output + 4 CAT Outputs – Delivers flexible display configurations for various AV applications.
Transmission distance: CAT5e/6 or higher level RJ45 cable up to 60M.
Support HDMI1.3 and HDCP1.2 protocol.
Video format support: 1080p/720p/576p/480p.
Audio format support: TDS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.
Transmitter Supports HDMl loopout.

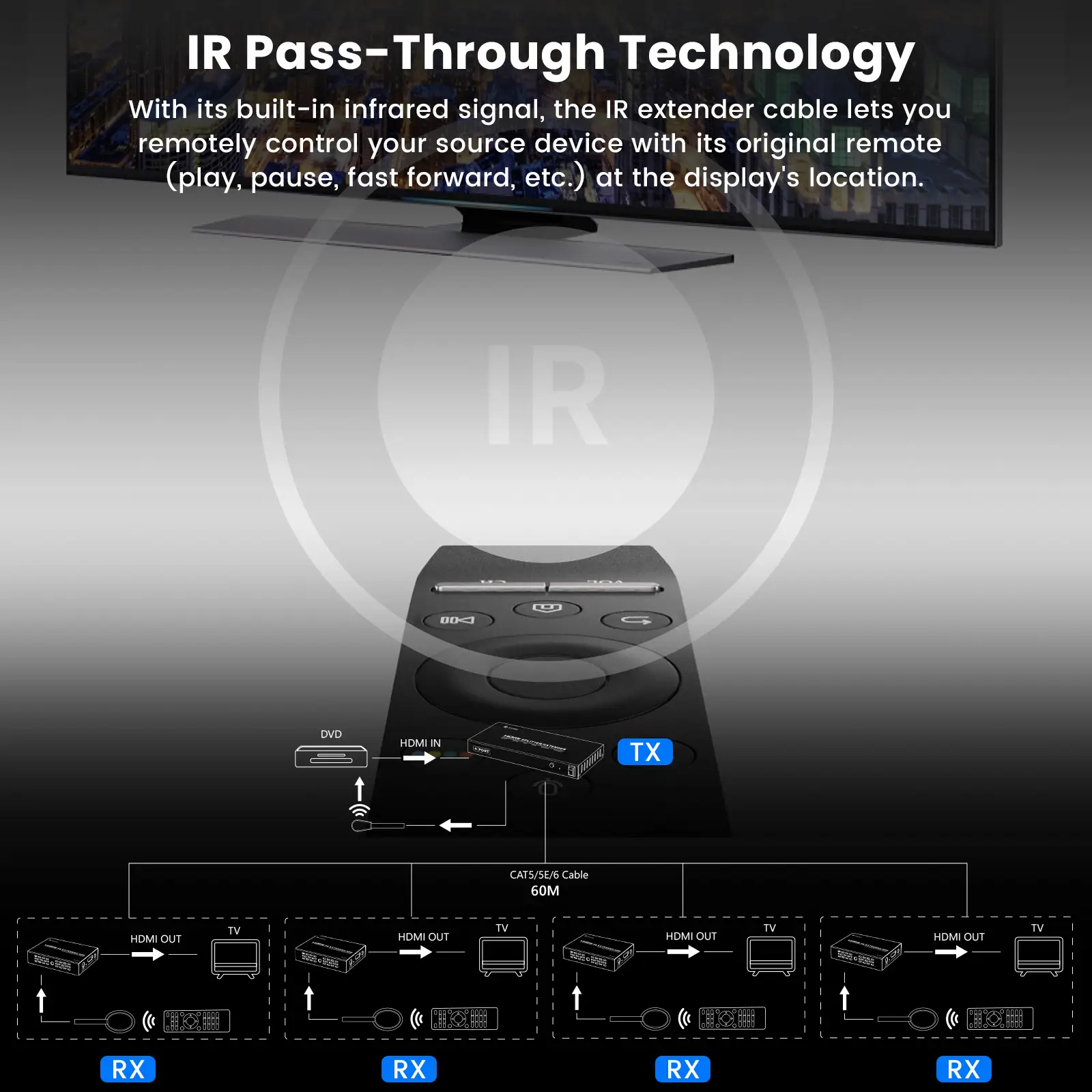

One-Way IR Pass-through – Allows for remote control of the source device from the display location.
Advanced EDID Management – Optimizes display compatibility and signal negotiation.

‍

Technical
HDMI Compliance	HDMI 1.3
HDCP Compliance	HDCP 1.2
Video Resolutions	720x480p60, 1280x1024p60, 1280x720p25/30/50/60, 1920x1080p25/30/50/60
Transmission Range	FHD 1080P (24-bit color) up to 60m (196ft)
HDMI Audio Formats	LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+

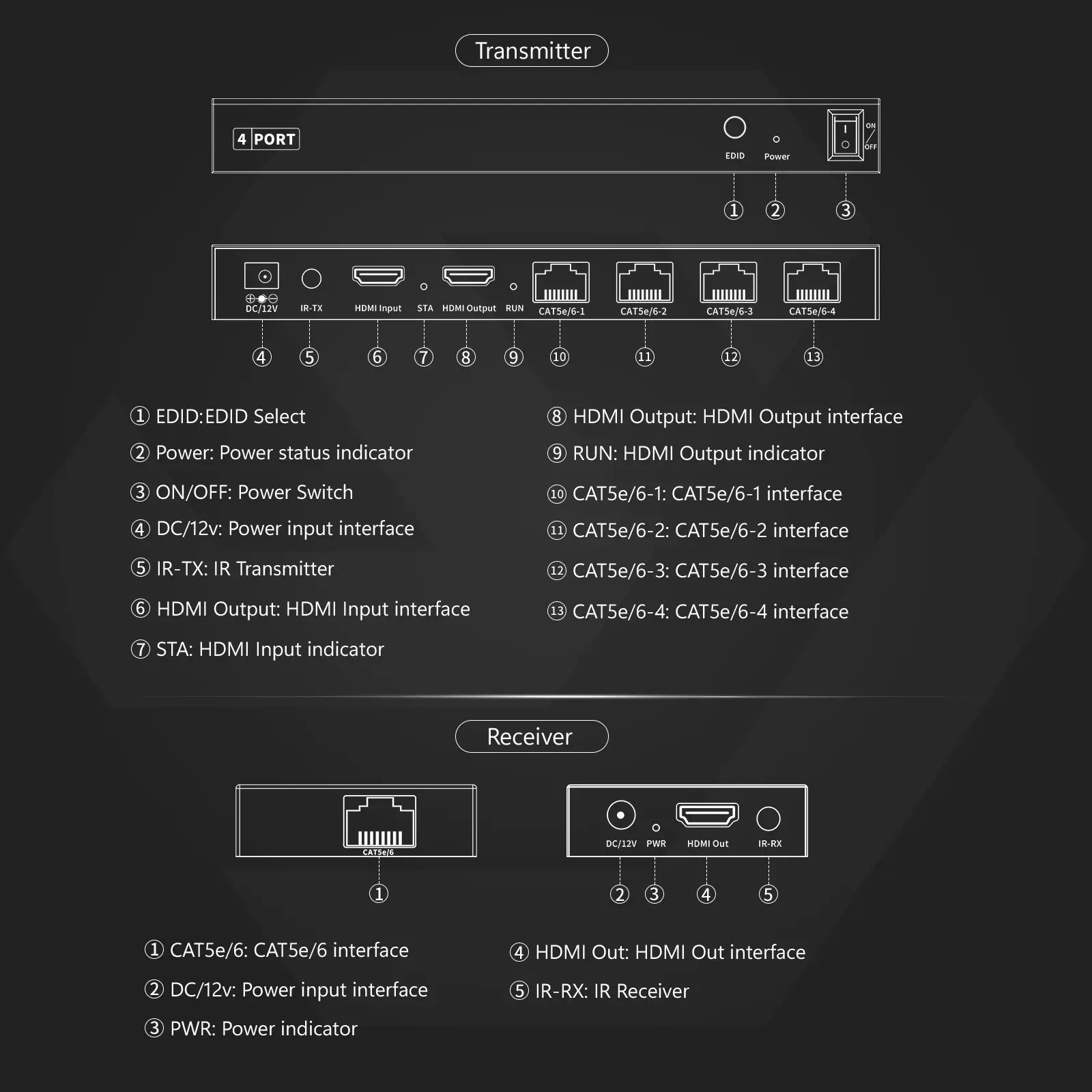

Connections
Transmitter Input	1x HDMI Type A (19-pin female)
Transmitter Output	1x HDMI Type A (19-pin female), 4x CAT (RJ45), 1 × IR OUT [3.5mm Stereo Mini-jack]
Receiver Input	1x CAT (RJ45), 1 × IR IN [3.5mm Stereo Mini-jack
Receiver Output	1x HDMI Type A (19-pin female)
Mechanical
Housing	Metal Enclosure
Color	Gray
Dimension （LxWxH）- Transmitter	200x90x22（mm）
Dimension （LxWxH）- Receiver	78.5×58×17（mm）
