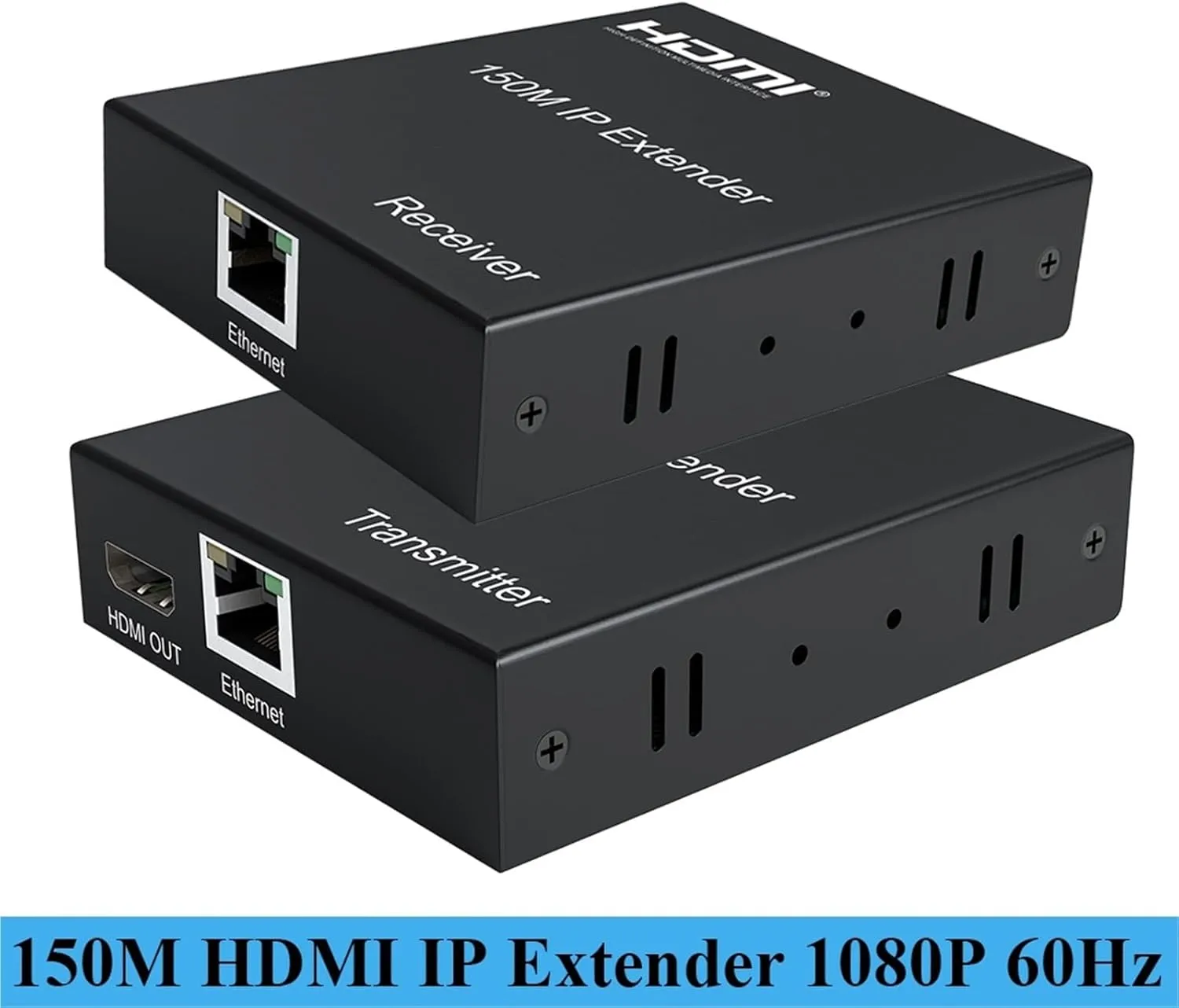

1080P HDMI 150M (492ft) Point-to-Point Extender

$ 28.00 USD

Product Description
This HDMI Extender extends HDMI signal up to 150 meters(492ft) over single CAT5e/6/7 ethernet cable, gives you a solution to transmit HDMI signals over ethernet cable so that other projects and home wiring more stable and efficient, significantly and saves your cost. Iron shell，IC AM8372+GD25Q40+RLT-8211

SKU:

S-EXT-HD-150MA

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

Tweet about #SYONG products

Feature

Support HDCP1.4 Decoding Mode MJPEG
Support point-to-point mode, point-to-multipoint mode, multipoint-to-multipoint mode and cascade connection mode；
802.3 Ethernet standard；
The design of pure hardware, plug and play, no need for additional software.

‍

Specs

Length of CAT-6 / CAT-7 cable between Rx and TX	Up to 150 meters
HDMI Input	480P/720P/1080P
Support audio input	DTS-HD
HDMI Output	480P/720P/1080P
Support audio output	DTS-HD
Max bandwidth	165MHz
Max baud rate	1.65GbpS x 3
Input video signal	0.5-1.5 volts p-p
Output DDC signal	5volts P-P ( TTL)
Input HDMI cable distance	≤15m AWG26 HDMI standard cable
Output HDMI cable distance	≤20m AWG26 HDMI standard cable
TX Max working current	500mA
RX Max working current	500mA
Power adapter format Input	AC ( 50HZ , 60HZ ) 100V-240V ; Output : DC5V / 1A
Operating Temperature/Humidity	0℃-45℃/10%-80%RH(no condensation)
Storage Temperature/Humidity	-10℃-70℃/5%-90%RH(no condensation)
Dimension ( L x W x H )	937921mm
