1080P HDMI 60M EXTENDER BY Cat5e

Feature

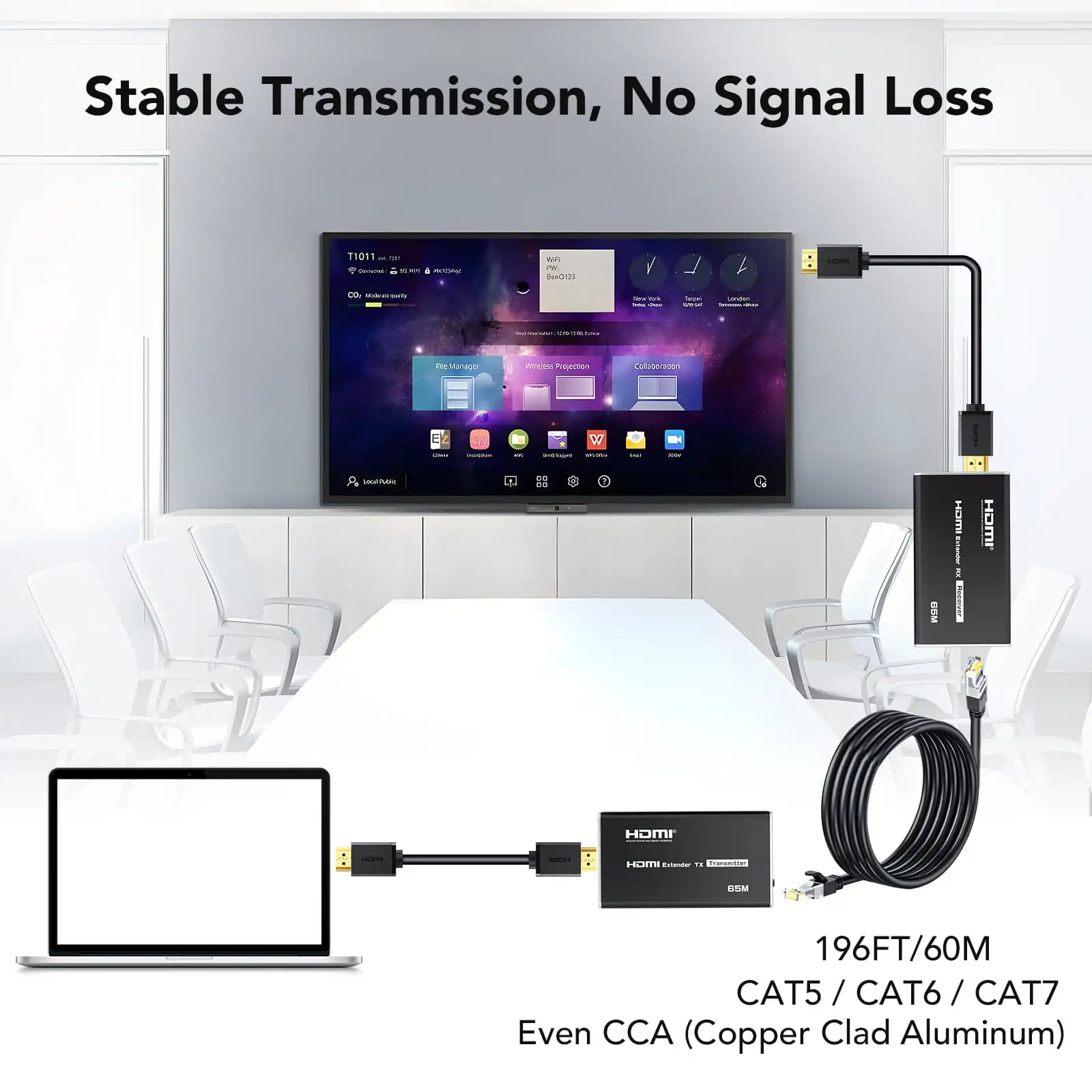

60M HDMI Extender: The RJ45 Ethernet extender can transmit HDMI 1080p signal to above 60 Meters/ 196ft by connecting Cat5e/6/7. Ideal for home, office, outdoor/ indoor scenes
1080P Full HD: Support video resolution up to 1080p@60Hz, HDMI 1.3 and HDCP 1.2 complaint. Cat5e/ 6/ 7 above calbe is needed to pair the transmitter and receiver
EDID Emulation: The HDMI over cat6 supports HDMI 1.4 & HDCP 1.4. Also support EDID emulations, which will auto identify the resolution and display, no need to re-setup manually
Wide Compatibility: Able to connect with the PC, DVD player, X box, PS4, PS5, TV box etc. Can be widely used in video conference, education, churches, classrooms, meeting rooms, projects, games, multimedia home theater etc
‍

Length of Cat5e / CAT-6 / CAT-7 cable between Rx and TX	Up to 60/65/65 meters
HDMI Input	24 / 50 / 60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Support audio input	DTS-HD
HDMI Output	24 / 50 / 60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Support audio output	DTS-HD
Max bandwidth	165MHz
Max baud rate	165GbPS
Input video signal	0.5-1.5 volts p-p
Output DDC signal	5volts P-P ( TT1L)
Input HDMI cable distance	≤15m AWG26 HDMI standard cable
Output HDMI cable distance	≤20m AWG26 HDMI standard cable
TX Max working current	500mA
RX Max working current	500mA
Power adapter format Input	AC ( 50HZ , 60HZ ) 100V-240V ; Output : DC5V / 1A
Operating Temperature range	(-15to + 55 C)
Operating Humidity range	5to 90 % RH ( No C ondensation)
Dimension ( L x W x H )	79x44x23 ( mm )
