2 Ports Bi-directional 8K HDMI Switch

$ 6.66 USD

Product Description

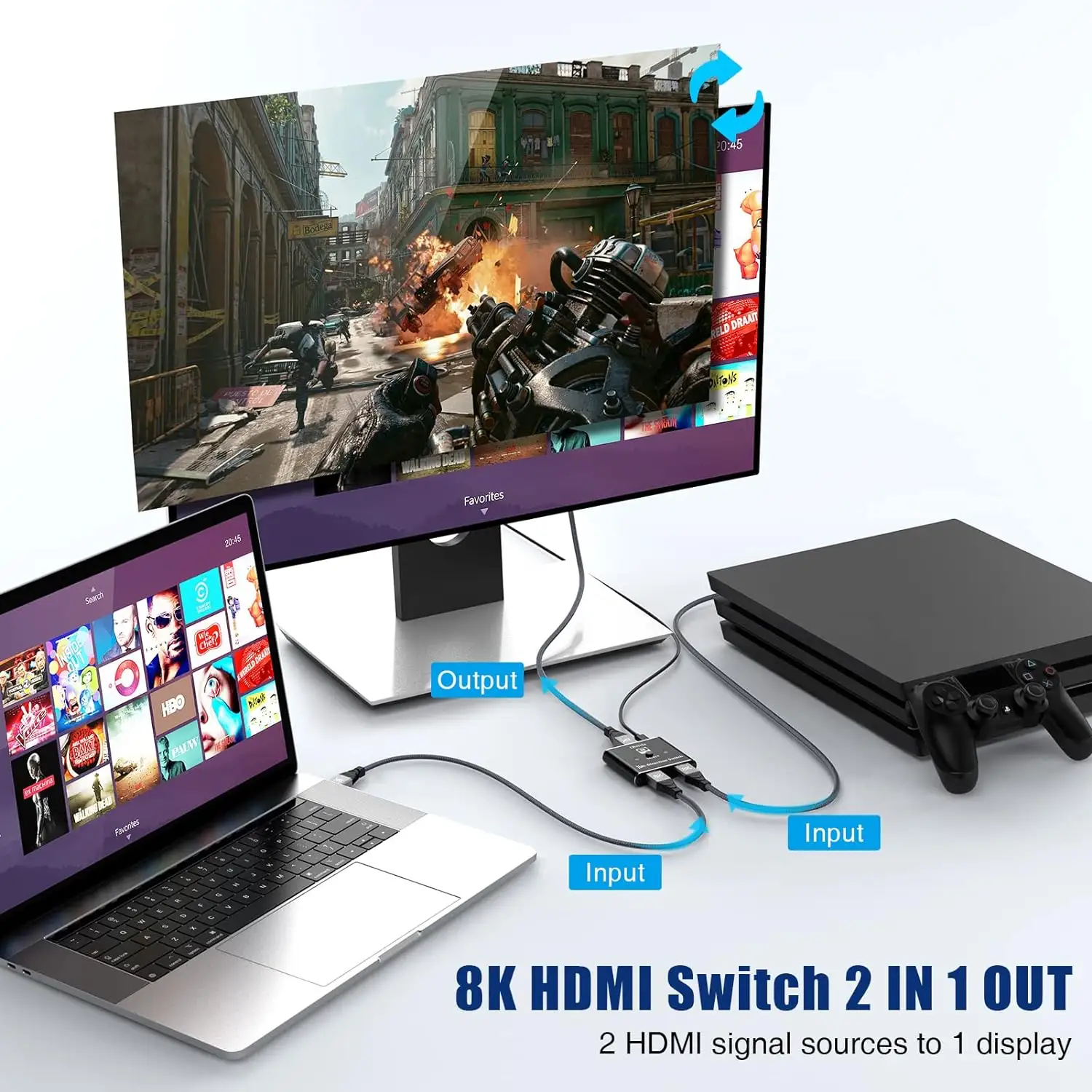

The 8K HDMI 2.1 Switch can seamlessly connect 2 HDMI signal sources to 1 display, or 1 HDMI signal source to 2 display (*CANNOT display simultaneously). It can also be used as a HDMI switch or as a HDMI splitter. No signal delay and loss.

SKU:

S-SW-8K-201B

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

Feature

Resolution Support: 8K@60Hz; 4K@165Hz/144Hz/120Hz; 2K@240Hz; 1080P@240Hz
Bandwidth: Up to 48Gbps
Gaming/Video Features: VRR, Dynamic HDR, Chroma 4:2:0 / 4:2:2 / 4:4:4, Dolby Vision
Compatibility: HDCP 2.2/2.3, CEC
Cable Requirement (for 8K/high refresh): Use HDMI 2.1 cable
Cable Length Guidance: Copper HDMI input ≤ 10ft, output ≤ 10ft (26AWG recommended); fiber HDMI output up to 33ft
Switching Method: One-button manual switch (“Select” button), non-auto switching
Power/Setup: No external driver or power, plug & play
Status Indication: LED indicators show the active port
Use Case: Switch between two HDMI source devices for work and entertainment

HDMI Version	HDMI 2.1
Mode	HDMI Switch: 2 IN 1 OUT HDMI Splitter: 1 IN 2 OUT (Cannot display simultaneously)*
Supported Resolution	8K@60Hz, 4K@165Hz/144Hz/120Hz, 2K@240Hz, 1080P@240Hz
Supported Audio Formats	DTS-HD / Dolby TrueHD / LPCM 7.1 / DTS / Dolby-AC3 / DSD
Max Bandwidth	330MHz
Max Data Rate	48Gbps
TMDS Signal (I/O)	0.5–1.5V p-p (TTL)
DDC Signal (I/O)	5V p-p (TTL)
Max Input Cable Length	≤ 3m (AWG24 HDMI standard cable)
Max Output Cable Length
Operating Temperature	-15°C to +55°C
Operating Humidity	5%–90% RH (Non-condensing)
Dimensions (L × W × H)
Weight	71.4g
