4K 2x3 HDMI Video Wall Controller with SPDIF & 3.5mm Audio Port
No items found.
In Stock
Strict Quality Control
1-Year Product Warranty
4K 2x3 HDMI Video Wall Controller with SPDIF & 3.5mm Audio Port
$ 89.00 USD
Product Description

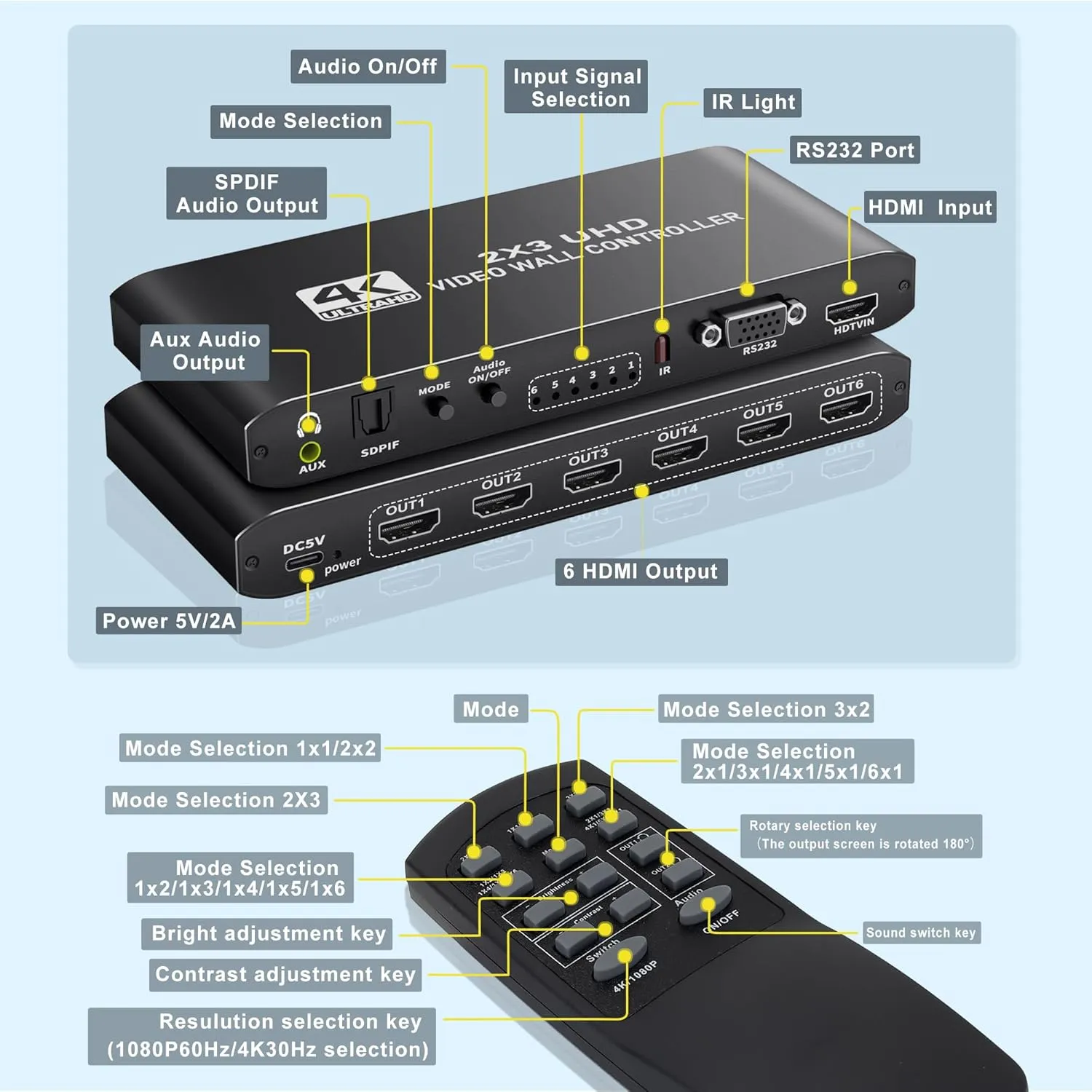

6-Output HDMI Video Wall Controller powers professional LCD splicing walls with 14 adjustable modes (up to 6 screens), 4K@30Hz input/output (HDMI 1.4, HDCP 1.4), IR/RS232 control, plus 180° rotation & edge mask and SPDIF/3.5mm audio out for seamless digital signage.
Package Content
Weight
410
g
Dimensions
4
cm
x
21.7
cm
x
13.2
cm
Made in
China
SKU:
S-ST-HDV-203
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Tweet about #SYONG products
Feature

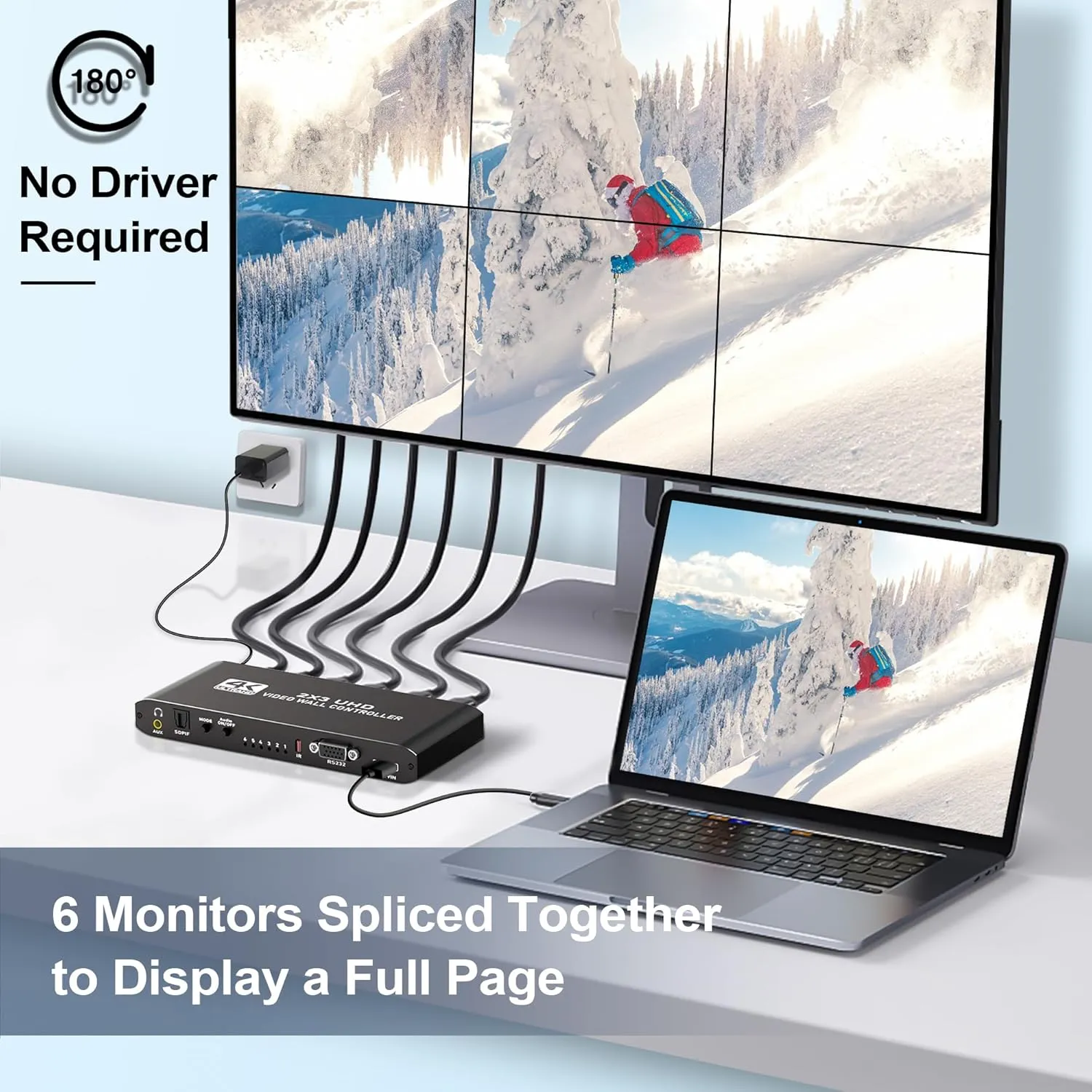

HDMI Video Wall Controller: links HDMI video wall processor distributes one HDMI input signal (DVD, TV Box, Xbox, PC, etc.) to 6 HDMI output displays simultaneously. Easily create dynamic video walls and digital signage with professional LCD splicing screens. Note: Please use professional video wall monitors instead of regular TVs for best performance.
14 Adjustable Display Modes: Supports up to 6 displays with 14 flexible splicing modes: 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, 2x1, 2x2, 2x3, 3x1, 3x2, 4x1, 5x1, 6x1. Effortlessly switch display modes using the included IR remote or RS232 advanced control.
4K@30Hz Input & Output: Supports HDMI 1.4 and HDCP 1.4, with both input and output resolutions up to 4K@30Hz (3840x2160p@24/30Hz, 1920x1080p@60Hz). Equipped with SPDIF and 3.5mm audio outputs for connecting external speakers, amplifiers, or soundbars. For best performance, ensure all connected displays support the same resolution.
180° Rotation & Edge Mask: Supports 180° rotation for Output 1 and Output 2, ideal for adjusting screens to reduce thick bezels and achieve a seamless display effect. Note: The rotation function is recommended for 2x2 display setups with resolutions up to 4K@30Hz.
Specs
Input
Supports one DVI input or HDMI input.
Output
Support four HDMI output, one 3.5mm stereo output.
Support 5.1CH audio output over optical fibers. Support RS232
