4K 350m/1150ft WIRELESS HDMI™ Transmitter and Receiver for SLR Camera support 1-to-4

Feature

With high-gain dual antennas, the transmission distance can reach up to 1150FT/43500Meters.
The transmission channel automatically matches between 2.4G and 5G frequency.
Minimal latency of ≤0.1s.4、Support local loop out for audio and video.
The Loop out feature enables output of up to 4K resolution at a refresh rate of 30Hz.

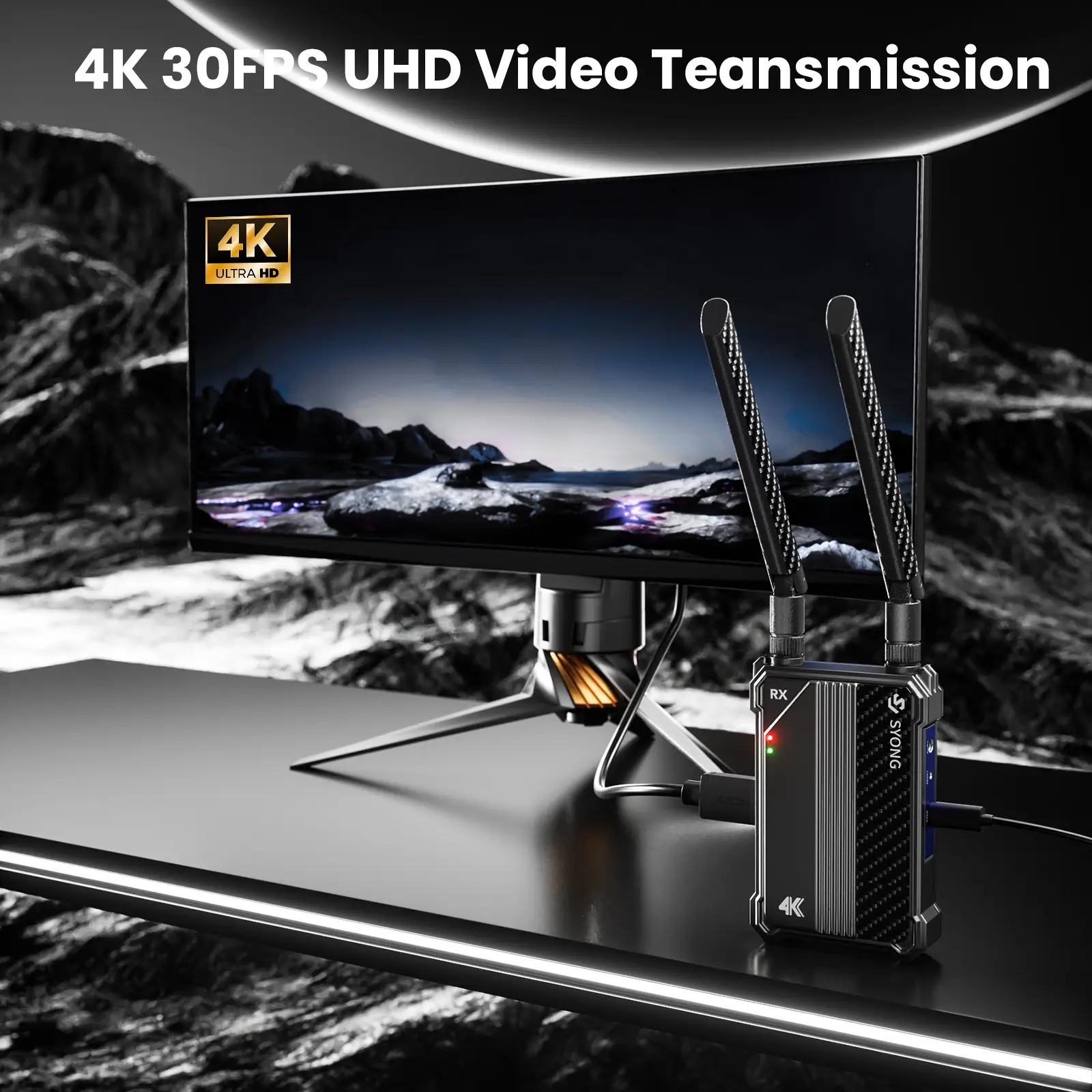

The receiver is equipped with two output ports, also supporting up to UHD 4K@30Hz resolution.‍
Plug and play, no installation program required.
Enhanced with 4K transmission, this device allows for one transmitter and four receivers.
Support hot/cold shoe expansion (1/4 Screw Hole).
Low power consumption, fast heat dissipation.

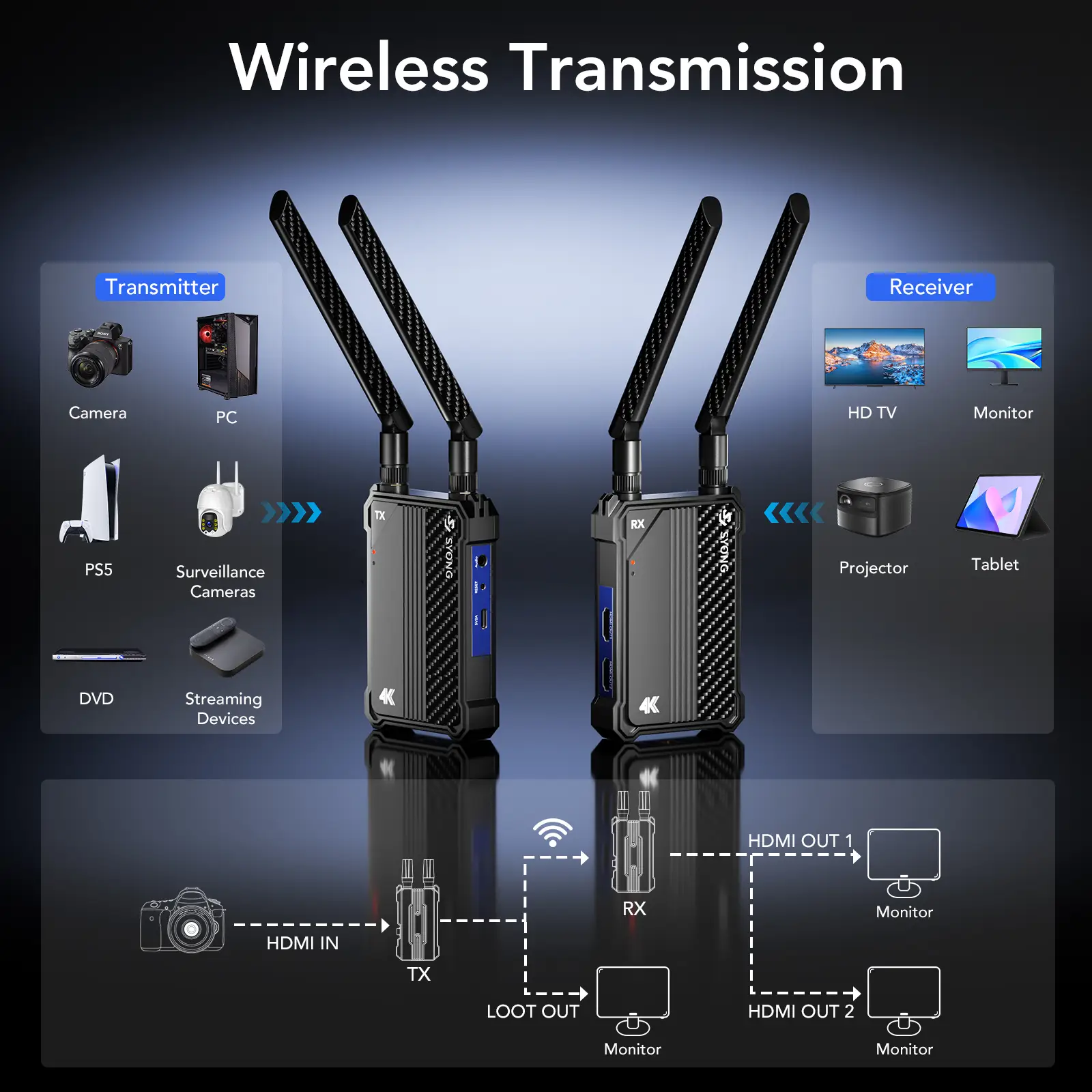

Transmitter input compatible with various devices including TV set-top box, laptop, digital camera, camcorder, and HDMl devices like PS4/5 game console.
Receiver compatible with TV, display, projector,live stream switcher and more.
The product has undergone certification from HDMI, TELEC, SRRC, as well as FCC, CE, ROHS and IC.

Technical
HDMI Compliance	HDMI 1.4
HDCP Compliance	HDCP 1.3
Video Resolutions	720x480p60, 1280x1024p60, 1280x720p25/30/50/60, 1920x1080p25/30/50/60, 3840x2160p30, 4096x2160p30
Latency	0.1S（test data when 4K30 signals are transmitted in a laboratory）
Transmission Range	400M/1312FT (1TX TO 1RX, Barrier-free and Interference-free)
	1 TX to 1RX: 1150ft/300m
	1 TX to 2RXs: 492ft/1500m
	1 TX to 3RXs: 393ft/120m
	1 TX to 4RXs: 165ft/50m
	(test data in an open, interference-free outdoor environment)
Operating frequency	2.4G/5.8Ghz
Modulation mode	802.11a/b/g/n/ac
Antenna Gain	8dBi
Color Depth	8-bit
HDMI Audio Formats	AAC/FLAC / APE / AMR / OgqVorbis / VQF/RealAudio / WMA / MIDI/ MPEG-4 / MP3 / MPEG / AIFF/WAVE/ CD
ESD Protection	±8kV (air-gap discharge) / ±4kV (contact discharge)
Connections
Transmitter Input	1x HDMI Type A (19-pin female), 1x USB-C 5V Power
Transmitter Output	1x HDMI Type A (19-pin female)- LoopOut
Receiver Input	1x USB-C 5V Power
Receiver Output	1x HDMI Type A (19-pin female) x2, 3.5mm Audio Out
Mechanical
Housing	ABS Enclosure
Color	Black \| IKB
Dimension （LxWxH）- Transmitter	(mm)
Dimension （LxWxH）- Receiver	(mm)
Weight	TX: 339g / RX: 339g
Power Supply	Input: AC100–240V 50/60Hz Output: USB-C 5V/2A (US/EU standards, CE/FCC/UL certified)
Power Consumption	5W (Typical)
Operation Temperature	32–104°F / 0–40°C
Storage Temperature	–4–140°F / –20–60°C
Relative Humidity	20–90% RH (no condensation)
