4K 3x3 HDMI/USB-C Video Wall Controller with SPDIF & 3.5mm Audio Port

$ 169.00 USD

Product Description

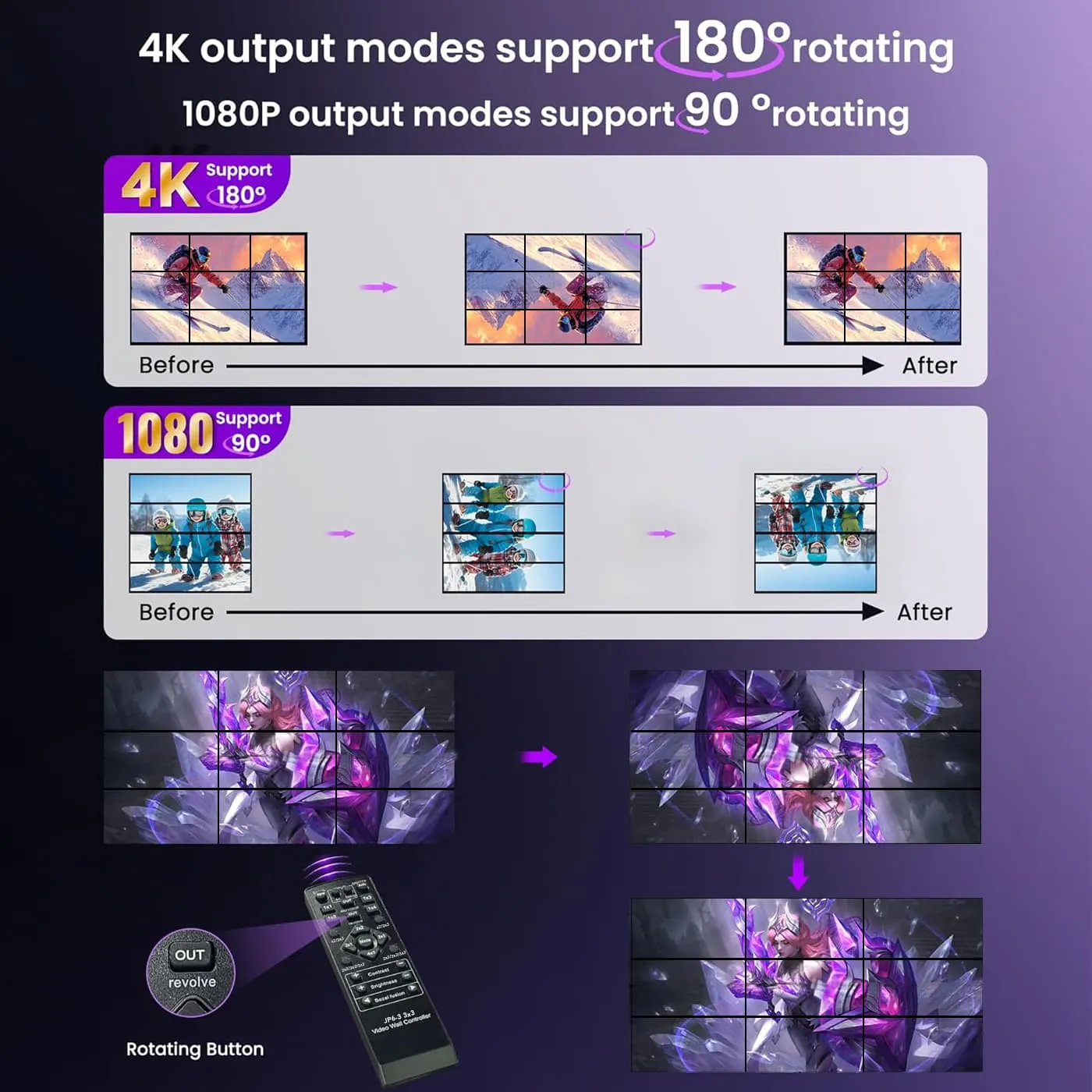

4K 3×3 Video Wall Controller splits one HDMI/DVI/USB-C source into 9 HDMI outputs with up to 4K@30Hz, supports multiple splicing layouts plus 90°/180°/270° rotation (≤1080P@60Hz), offers optical PCM audio out, and features a metal, gold-plated, plug-and-play design with IR remote/button control.

SKU:

S-ST-HDV-303B

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

Feature

The 4K 3X3 video wall controller, support 1-way HDMI/DVI/USB-C input and 9 HDMi output， function is to divide a complete HDMI, DVI HD image singal into 9 blocks and assign to 9 video display unit （such as rear projection unit, LCD TV，etc.）. Complete with 9 HDMI high-definition video display units to form a large dynamic image screen.
Supports one DVl input or HDMl input or USB input
Input support HDMI1.4, HDCP1.4.
Input format: RGB/YUV 24bit；
Output format: RGB4:4:4 24bit.
Support 3X3 stitching, easy operation, plug and play；
Input support 1920x1080P 25/30/50/60Hz,3840x2160P30HZ
Support for nine HDMI outputs
Supports PCM audio output over optical fibers.
Output support 4K/30Hz 1080P/60Hz；
Supports RS232
Supports remote control
DC12V /2A power supply

Input	Supports one DVI input, One Type-C or HDMI input.
Output	Support four HDMI output, one 3.5mm stereo output.
	Support 5.1CH audio output over optical fibers. Support RS232
	Supports one DVI input or HDMI input.
Support HDMI Input resolution	1920x1080P 25/30/50/60Hz,3840x2160P 24/30HZ.
Support HDMI Output resolution	1920x1080P
Support Input video color format	RGB/YUV24bit
Support Ouput video color format	RGB444 24bit.
Power supply	DC5V / 2A
