HDMI Matrix Switch 2 in 2 Out Switcher Splitter Box with IR Remote Control
No items found.
In Stock
Strict Quality Control
1-Year Product Warranty
HDMI Matrix Switch 2 in 2 Out Switcher Splitter Box with IR Remote Control
$ 30.00 USD
Product Description
2×2 HDMI Matrix (HDMI 1.4/HDCP 1.4) switches or splits 2 sources to 2 displays in mirror mode, supports up to 4K@60Hz (YUV 4:2:0) / 10.8Gbps with IR+button control and Dolby/DTS audio pass-through (no extend, no HDCP 2.2).
Package Content
Weight
278
g
Dimensions
3.6
cm
x
14.5
cm
x
12.5
cm
Made in
China
SKU:
S-SP-MAT-202
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Tweet about #SYONG products
Feature

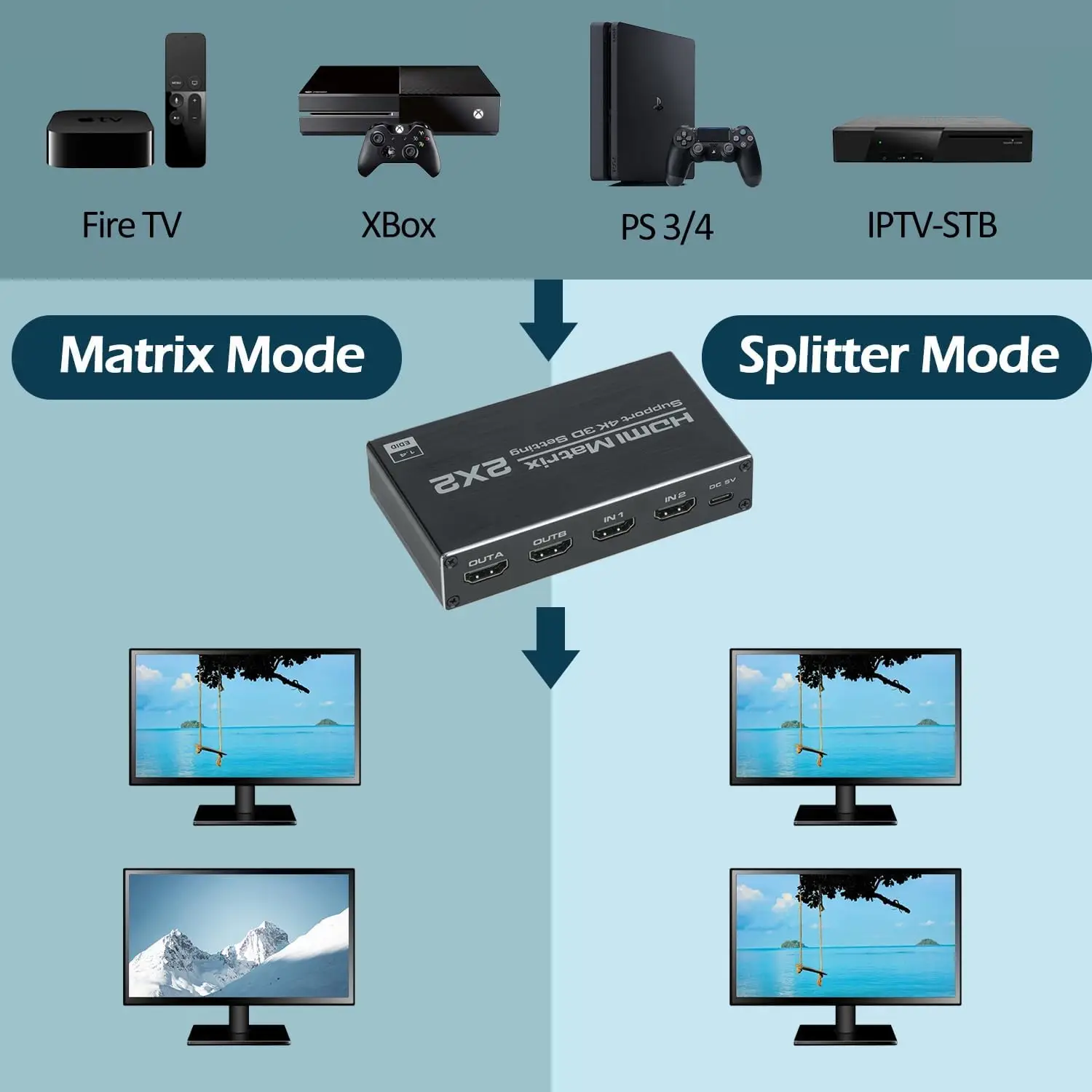

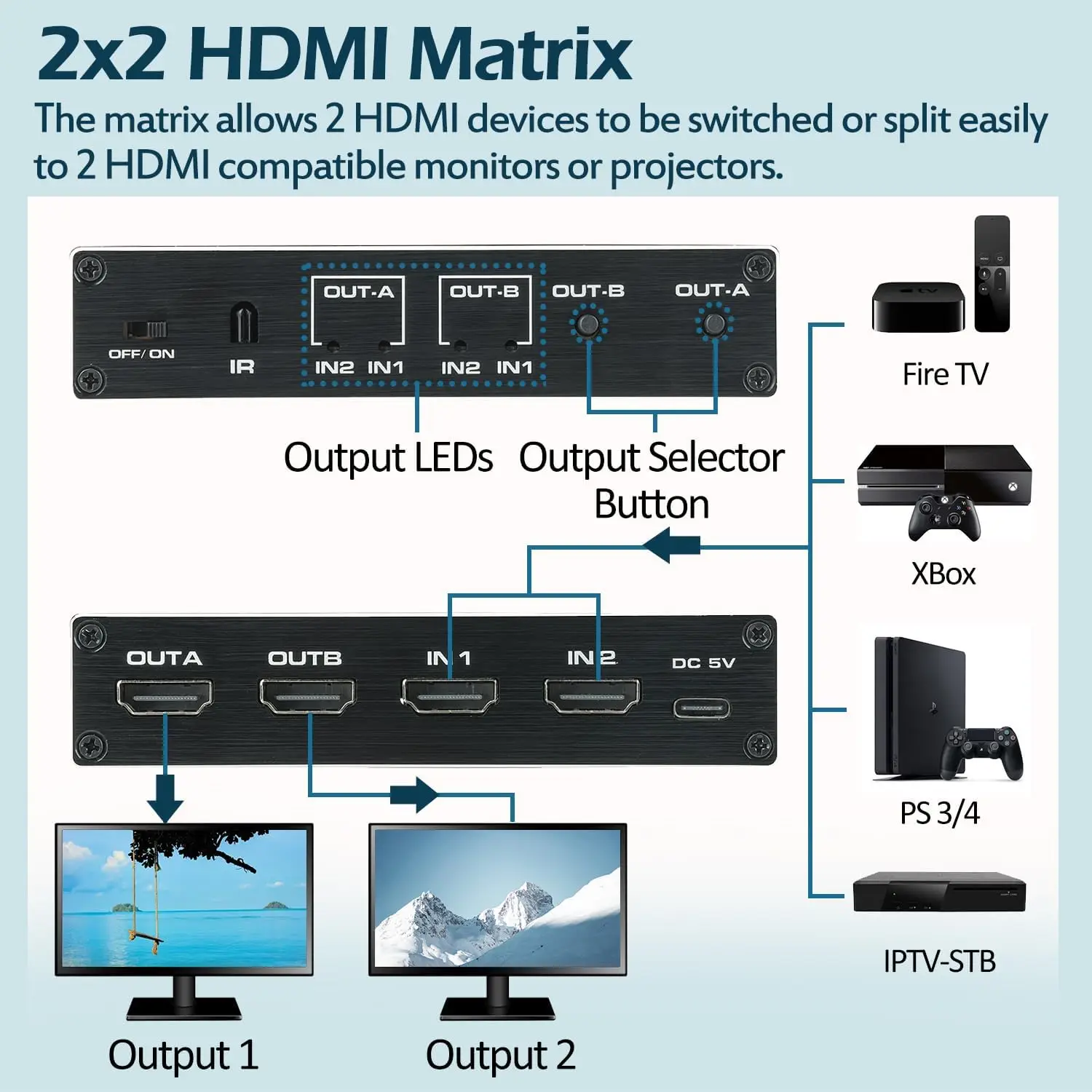

HDMI Matrix 2×2 (2 In 2 Out): Connects 2 HDMI sources to 2 displays; supports switching or splitting signals to both outputs.
Resolution Support: Up to 4K@60Hz (YUV 4:2:0), also supports 4K@30Hz, 1080P, 3D.
Standards:HDMI 1.4 / HDCP 1.4, max data rate 10.8Gbps.
Important Note:Mirror mode only (no PC/Laptop extended display). Not supported:HDCP 2.2, HDMI 1.4b / HDMI 2.0.

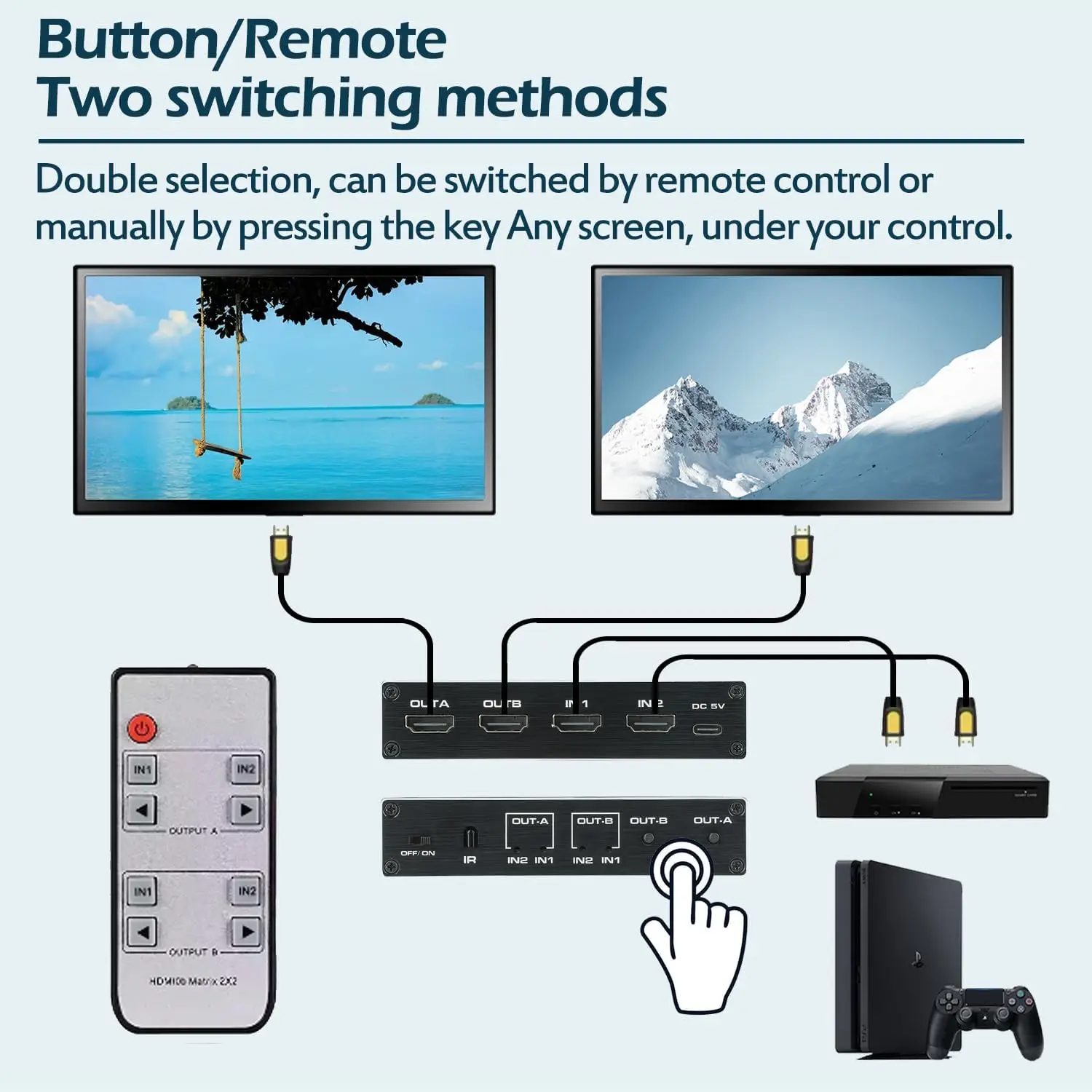

Control & Operation: IR remote + button control; plug & play with DC power; switches within ~3 seconds with LED status indication.
Compatibility & Use Cases: Works with PC, TV, projector, PS3/PS4, Xbox, Blu-ray/DVD, monitors; ideal for home theater, office, school, meetings, signage.
Specs
HDMI Input
2
HDMI Ooutput
2
HDMI Version
HDMI2.0 HDCP1.4
HDMI Resolution
up to 3840*2160/60Hz YUV4:2:0
Color Depth
8/10/12/24 bit deep color
Max Bandwidth
600MHZ
Max Baud Rate
3.4Gbps
Input cable distance
≤8m AWG26 HDMI 2.0 standard cable
Output cable distance
≤8m AWG26 HDMI 2.0 standard cable
Max working current
500mA
Power Adapter Format
Input: AC （50HZ, 60HZ） 100V-240V Output: DC5V/1A
Material
Aluminum Alloy
Color
Black
Operating Temperature range
(-10 to +55°C)
Operating Humidity range
.5 to 90%RH （No Condensation）

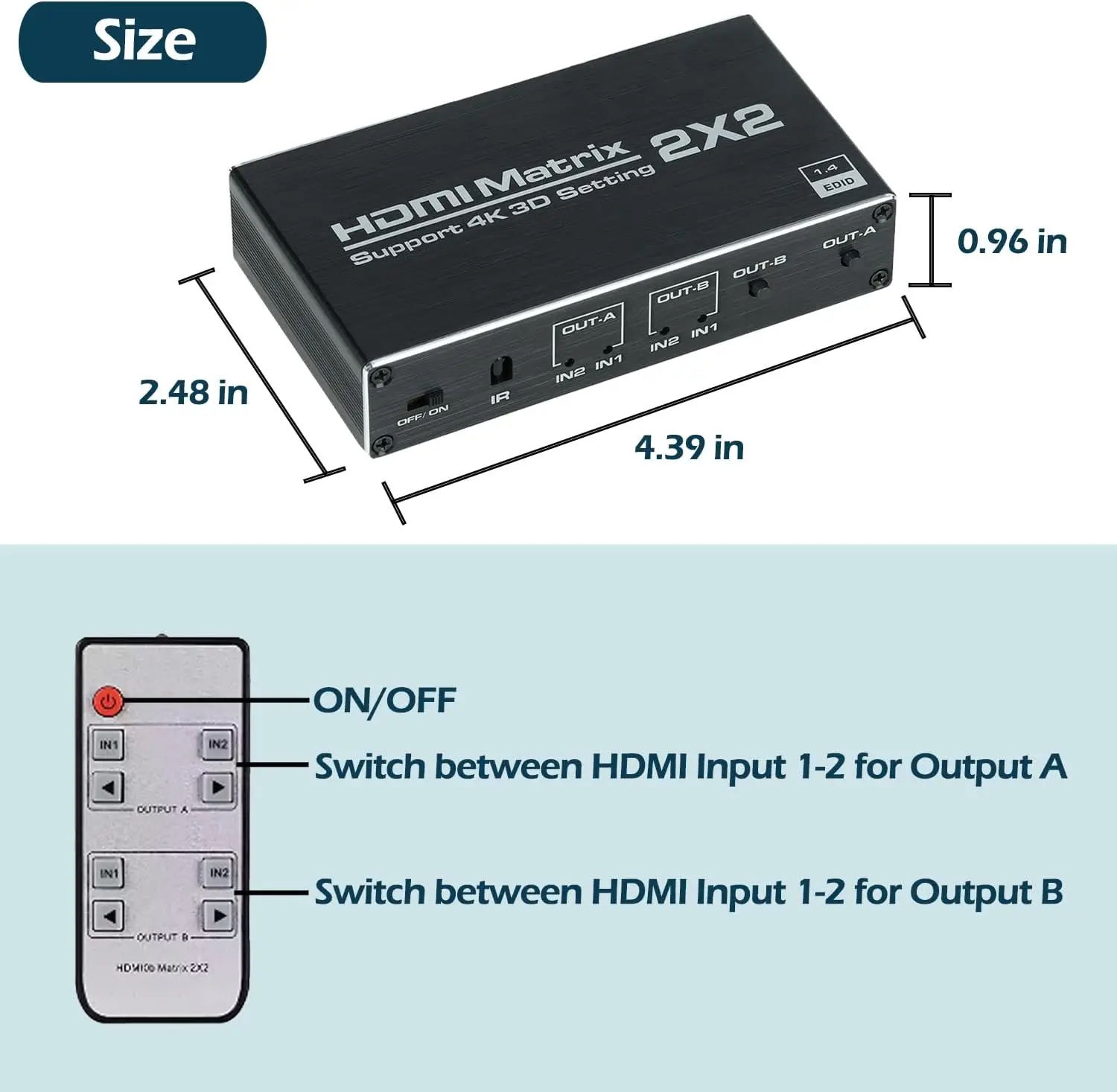

Dimension (L x W x H)
11.2*6.3*2.5(cm)
Weight
260g
Compatible Devices
Projector, Gaming Console, Monitor, Television, DVD Player
