4K HDMI2.0b Audio Extractor Converter

Feature

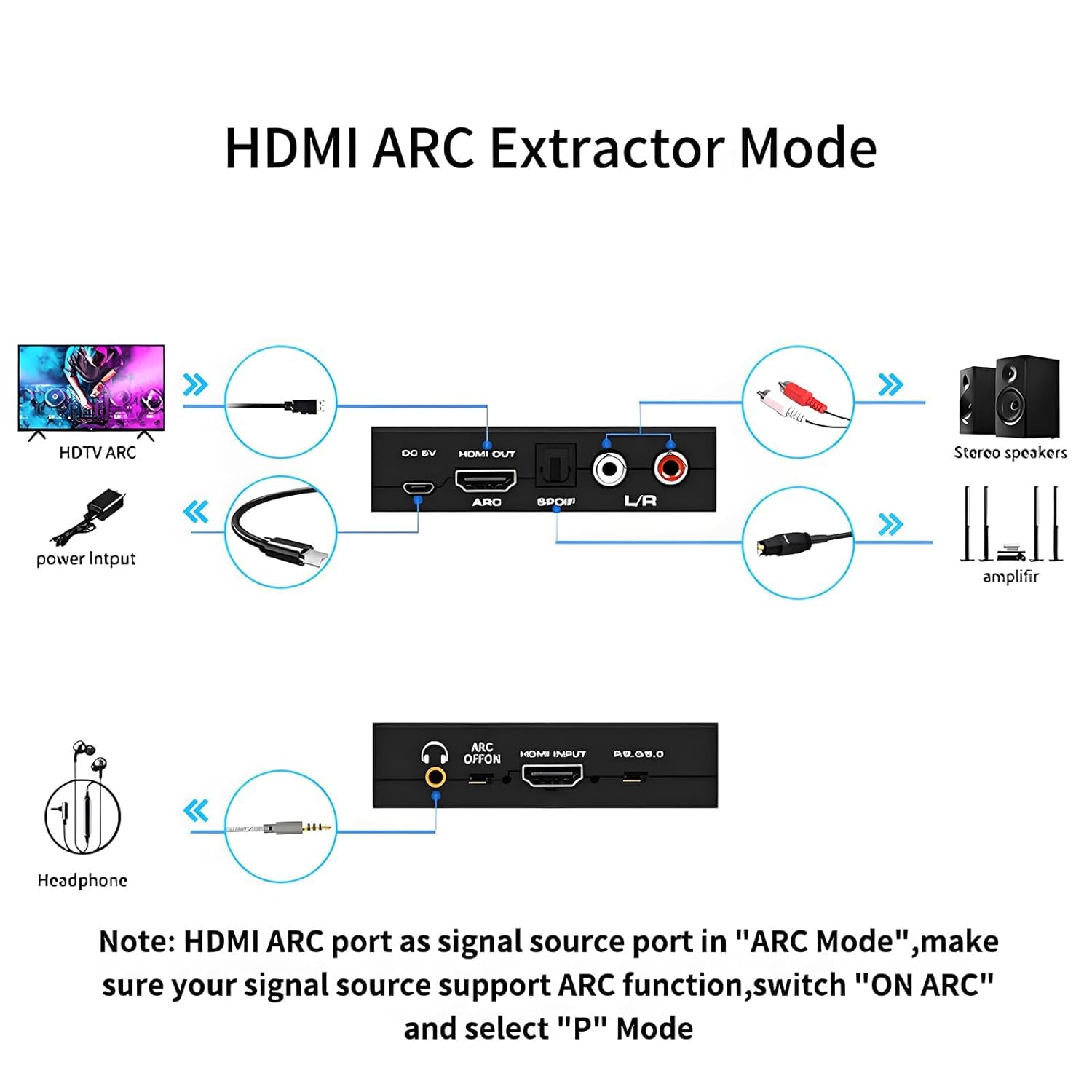

HDMI ARC Audio Extractor: Supports 4K@60Hz, HDCP 2.2, and various audio formats.

Optical Fiber and 3.5mm Stereo Audio Output: Provides high-quality audio for multiple devices.

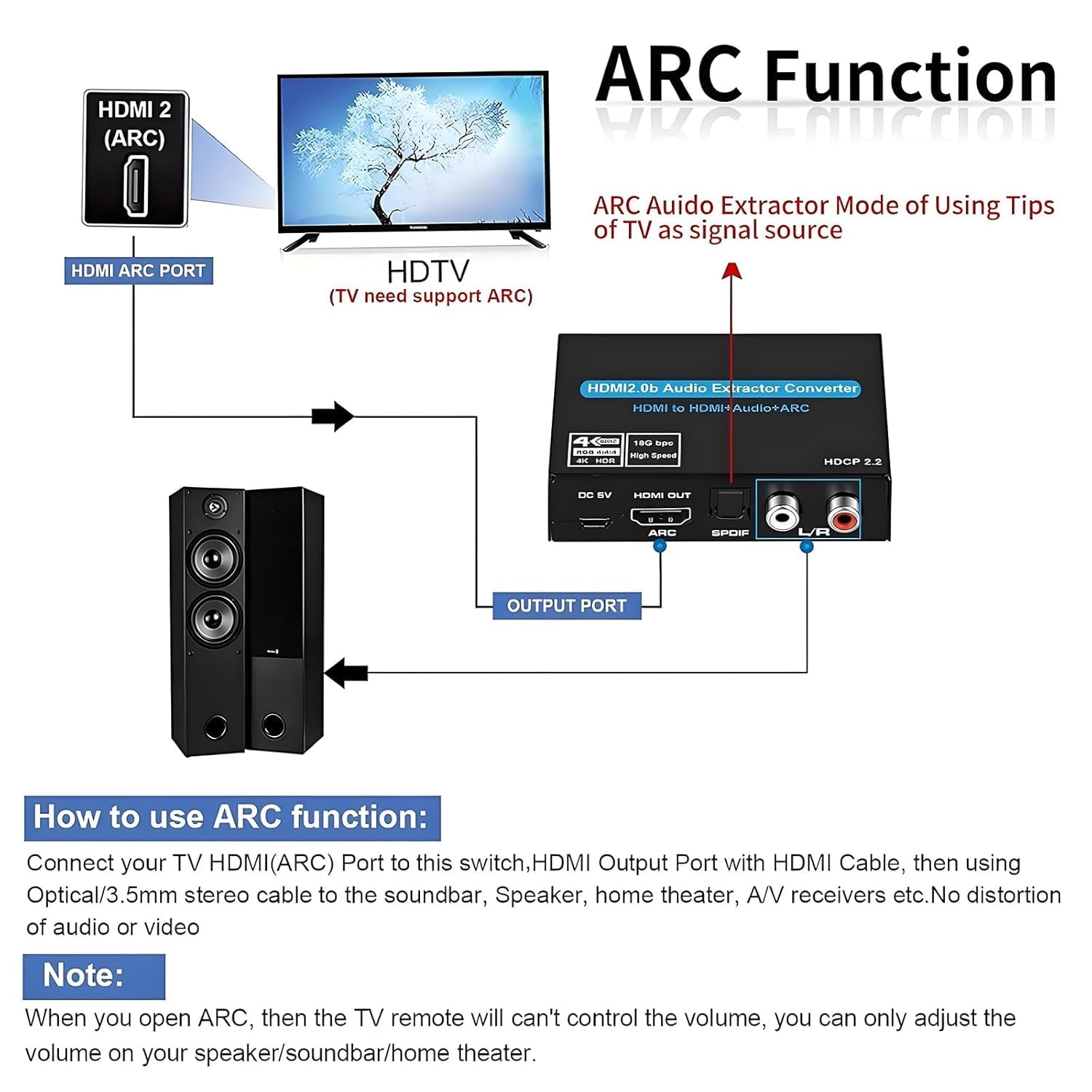

ARC Function: Allows seamless audio transmission to external sound systems for an immersive experience.

High Compatibility: Supports X-BOX, PS-4 PRO, ROKU, APPLE TV, Samsung, LG, and Sony.

No Signal Loss: Ensures the output HDMI maintains the same resolution as the input.

HDMI Resolution	4K2K / 3D / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Video Color Format	24-bit / Deep Color 30-bit / 36-bit
Audio Format	DTS-HD / Dolby TrueHD / LPCM 7.1 / DTS / Dolby AC3 / DSD
Max Bandwidth	520MHz
Max Data Rate	18Gbps
TMDS Signal	0.5–1.5V p-p (TTL)
DDC Signal	5V p-p (TTL)
Input Cable Distance	≤10m AWG26 HDMI standard cable
Output Cable Distance	≤10m AWG26 HDMI standard cable
Max Working Current	350mA
Power Supply	Input: AC 100–240V (50/60Hz); Output: DC 5V
Operating Temperature	-15°C to +55°C
Operating Humidity	5%–90% RH (No Condensation)
Dimensions (L × W × H)	70 × 60 × 24 mm
Weight	70g
