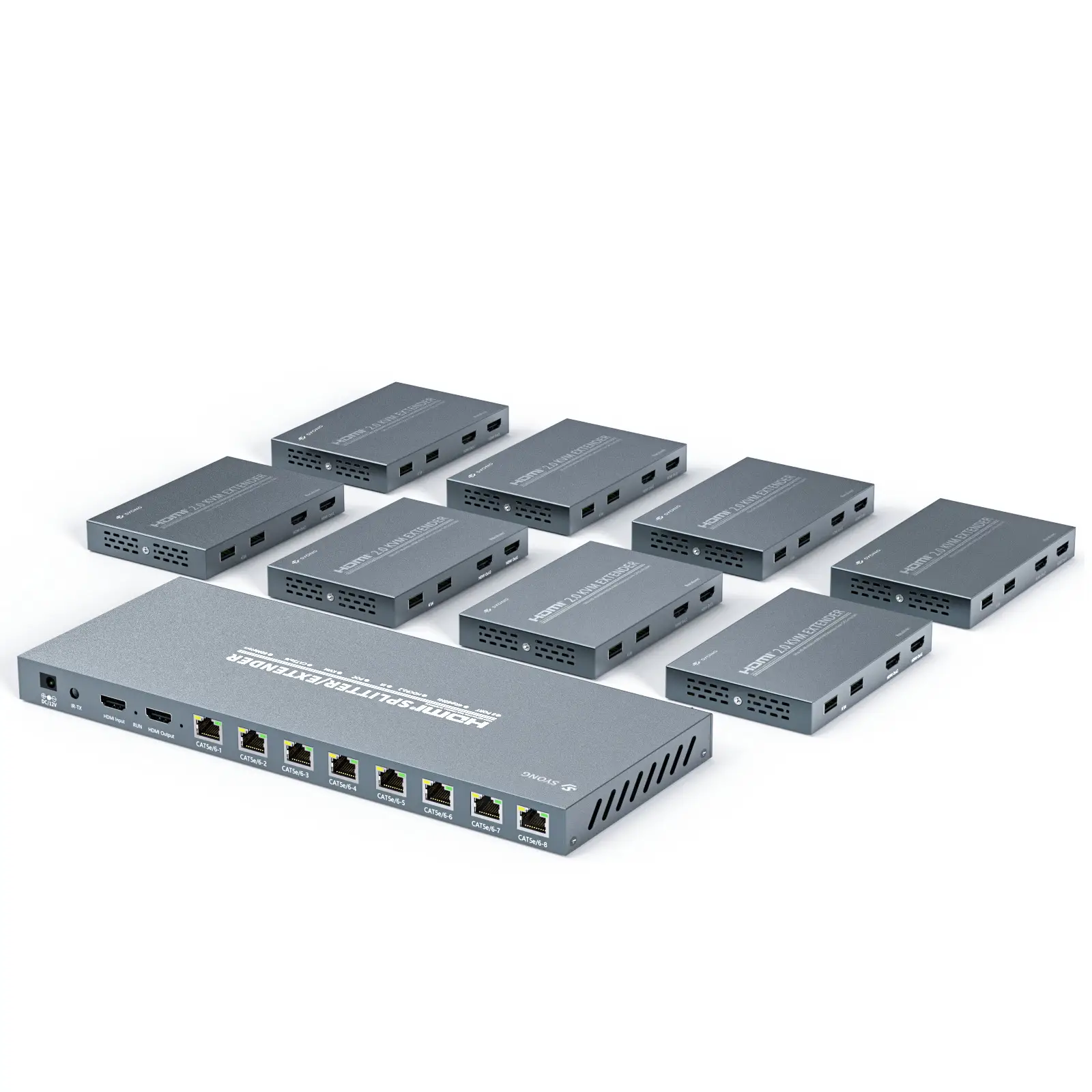

4K60Hz 1x8 HDMI™ KVM USB Extender Splitter (Loop)-60m(196ft) with one-way IR control

Feature

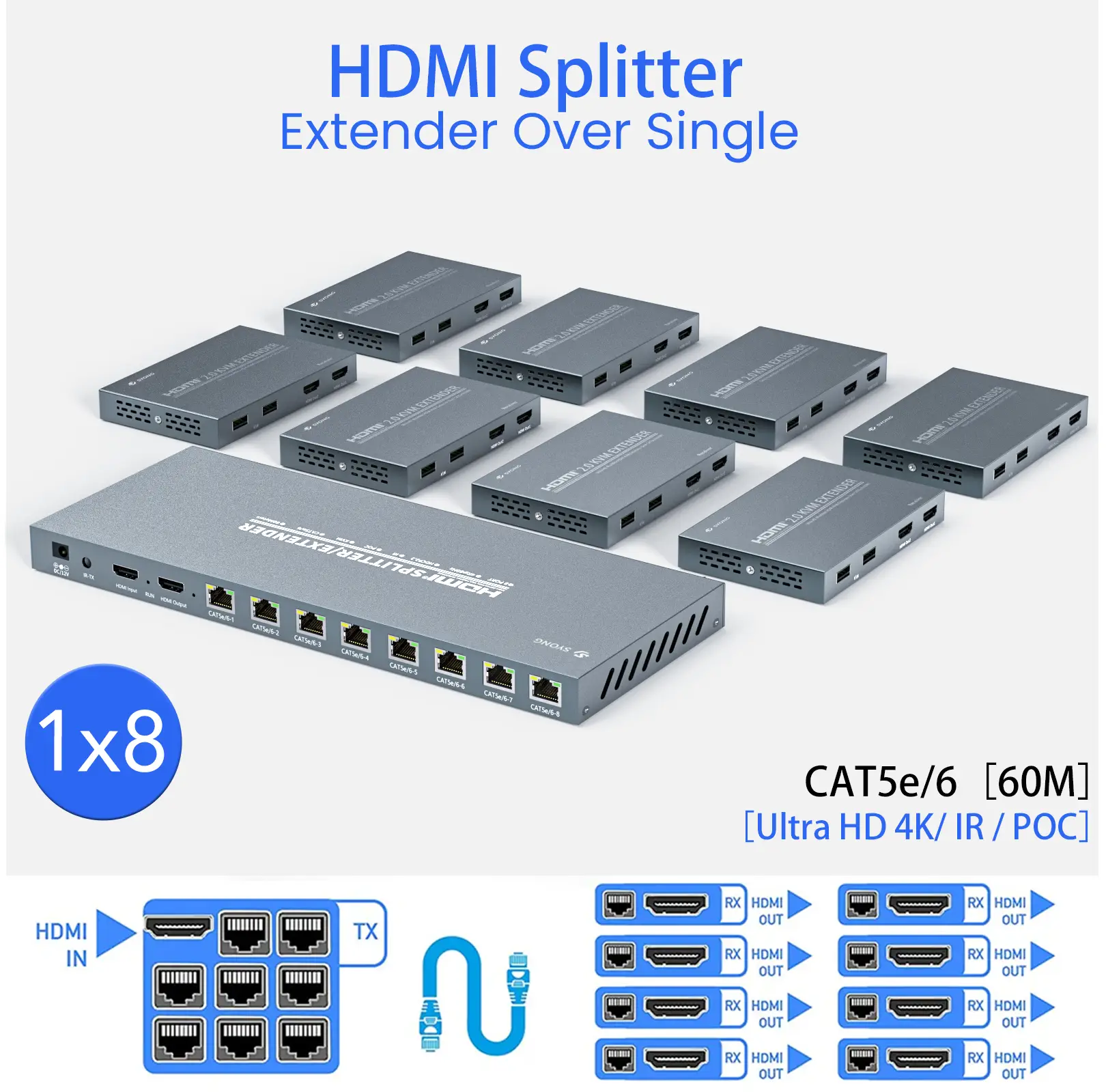

1 HDMI Input + 1 Loop Output + 8 CAT Outputs – Delivers flexible display configurations for various AV applications.

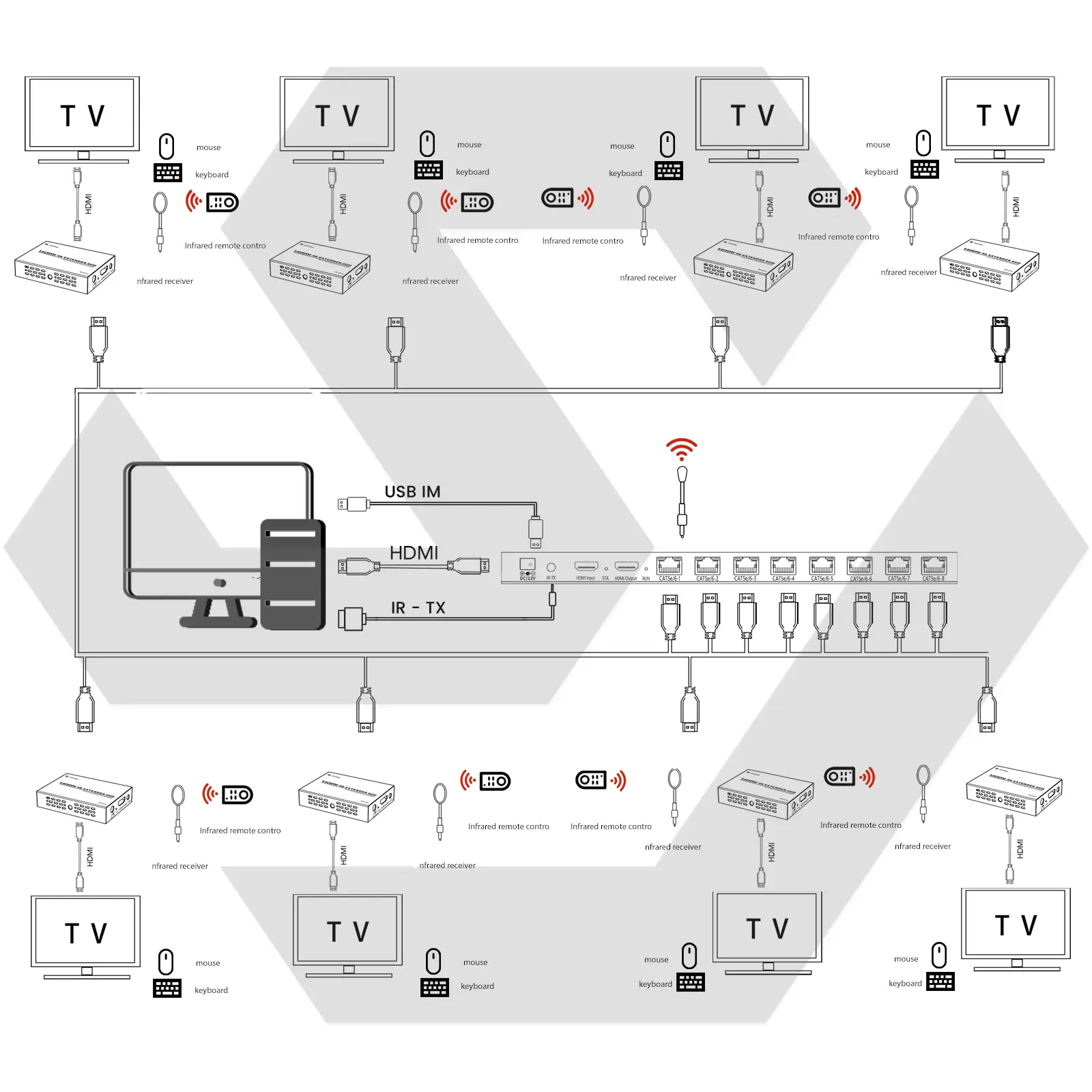

One HDMl+USB input signal split into 8 x HDMl+KVM output over CAT5e/6 RJ45 cable.
Transmission distance: CAT5e/6 or higher level RJ45 cable up to 60M.‍
Support HDMI2.0 and HDCP2.2 protocol.
Video format support: 4K@60Hz/4K@30Hz/1080p/720p/576p/480p.‍
Audio format support: TDS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.‍
Transmitter Supports HDMI loopout.
Support EDID select.
Each receiver supports synchronous output for two HDMi display devices.
ach receiver supports independent audio extraction.
Compatible with different brands of keyboards/mouse.

‍

Technical
HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2
HDCP Compliance	USB 2.0
Video Resolutions	4096x2160p30/60
Transmission Range	UHD 4K (24-bit color) up to 60m (196ft)
Color Depth	8-bit
HDMI Audio Formats	LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+
Connections
Transmitter Input	1x HDMI Type A (19-pin female), USB Type A (female)
Transmitter Output	1x HDMI Type A (19-pin female), 4x CAT (RJ45), 1 × IR OUT [3.5mm Stereo Mini-jack]
Receiver Input	1x CAT (RJ45), 1 × IR IN [3.5mm Stereo Mini-jack
Receiver Output	1x HDMI Type A (19-pin female), , USB Type A (female) x 2
Mechanical
Housing	Metal Enclosure
Color	Gray
Dimension （LxWxH）- Transmitter	277x110x25(mm)
Dimension （LxWxH）- Receiver	108×73×17(mm)
Weight	TX: g / RX: g
Power Supply	Input: AC100–240V 50/60Hz Output: DC 12V/3A (US/EU standards, CE/FCC/UL certified)
Power Consumption	18W (Max)
Operation Temperature	32–104°F / 0–40°C
Storage Temperature	–4–140°F / –20–60°C
Relative Humidity	20–90% RH (no condensation)
