4K60HZ 65m/213ft HDMI KVM USB Extender support POC

Feature

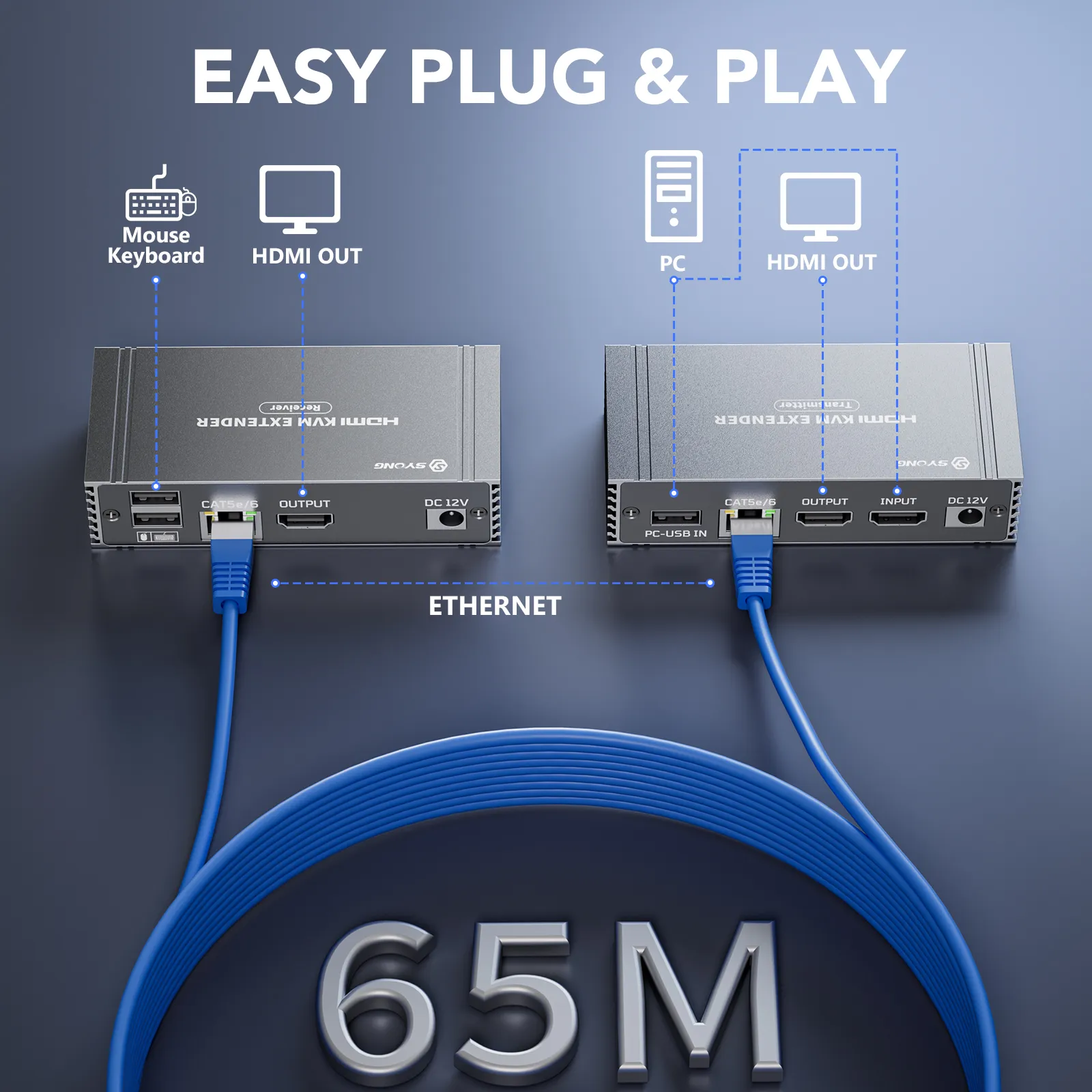

Extend uncompressed 4Kx2K60Hz and 2 USB signals (keyboard and mouse) up to 100 meters over CAT6, CAT6A cables and up to 213ft / 65m over CAT5 cable
Transmit video, analog stereo, power, and USB 2.0 signals

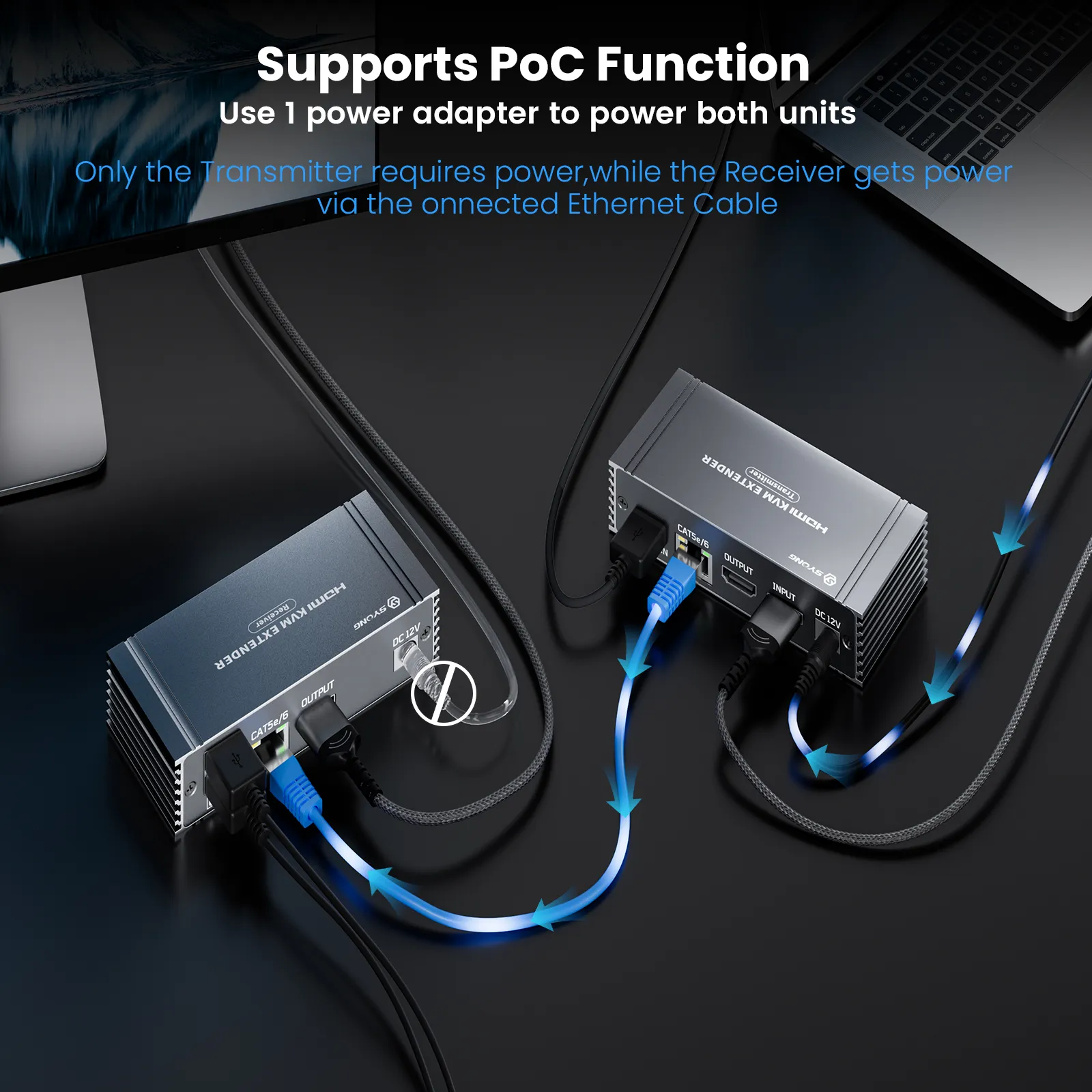

With integrated 12V PoC, only one power supply is needed to power both units
HDMI 2.0, HDCP 2.2, USB2.0

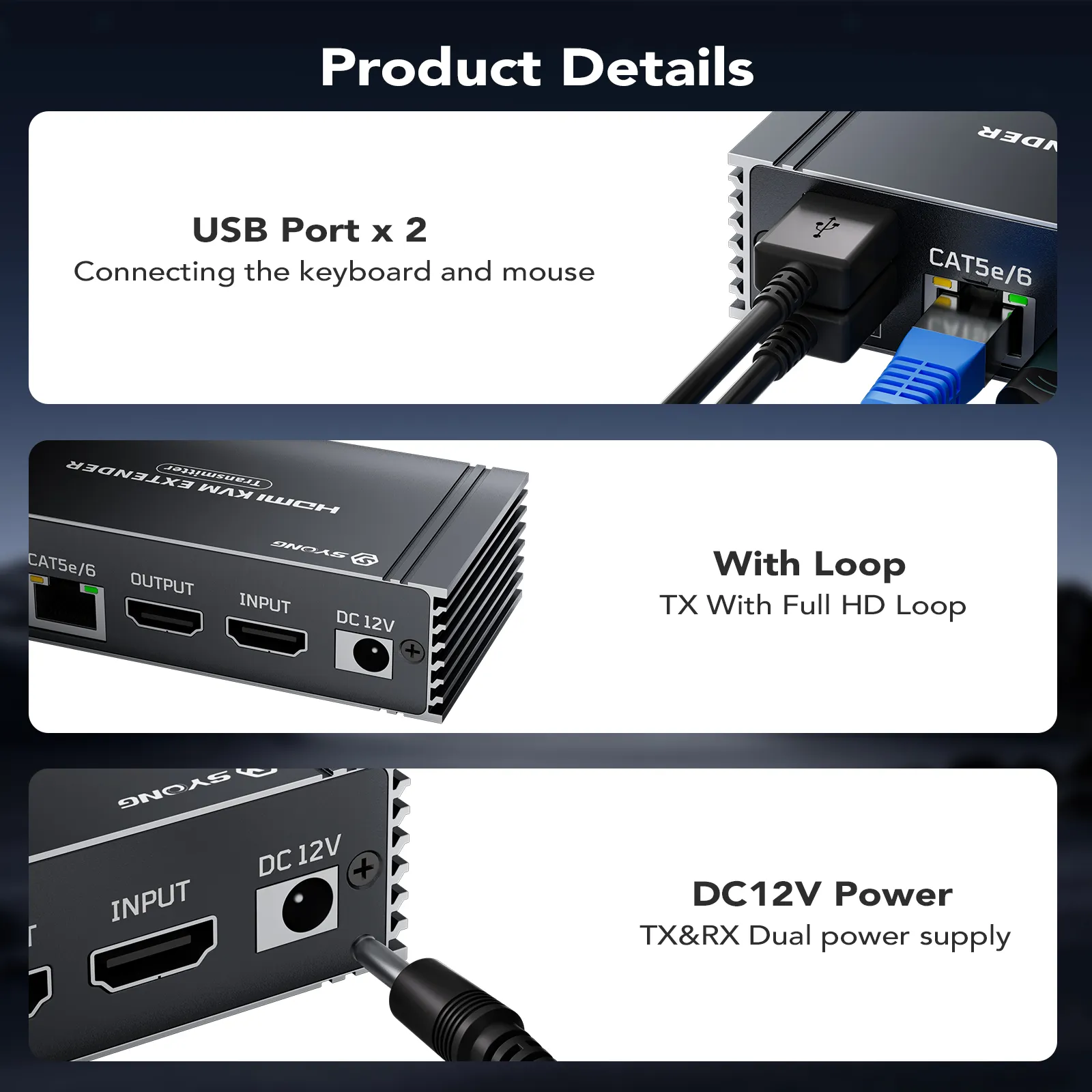

Two USB Type-A inputs for keyboard, mouse, or additional peripherals
Support local loop-out live video for flexible monitoring options, easily know the content of the remote HDMI input signal you transmitted
Features two movable mounting tab for flexible installation, making it suitable for virtually any setup and scenario.

‍

Technical
HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2
USB Compliance	USB 2.0
Video Resolutions	720x576p50, 720x480p60, 640x480p60/75, 800x600p60/75, 1024x768p60/75, 1280x1024p60, 1680x1050p60, 1280x720p25/30/50/60, 1920x1080p25/30/50/60, 4K@30/60Hz
Transmission Range	UHD 4K@60Hz (24-bit color) up to 65m (213ft)
Color Depth	8-bit
HDMI Audio Formats	LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+
ESD Protection	±8kV (air-gap discharge) / ±4kV (contact discharge)

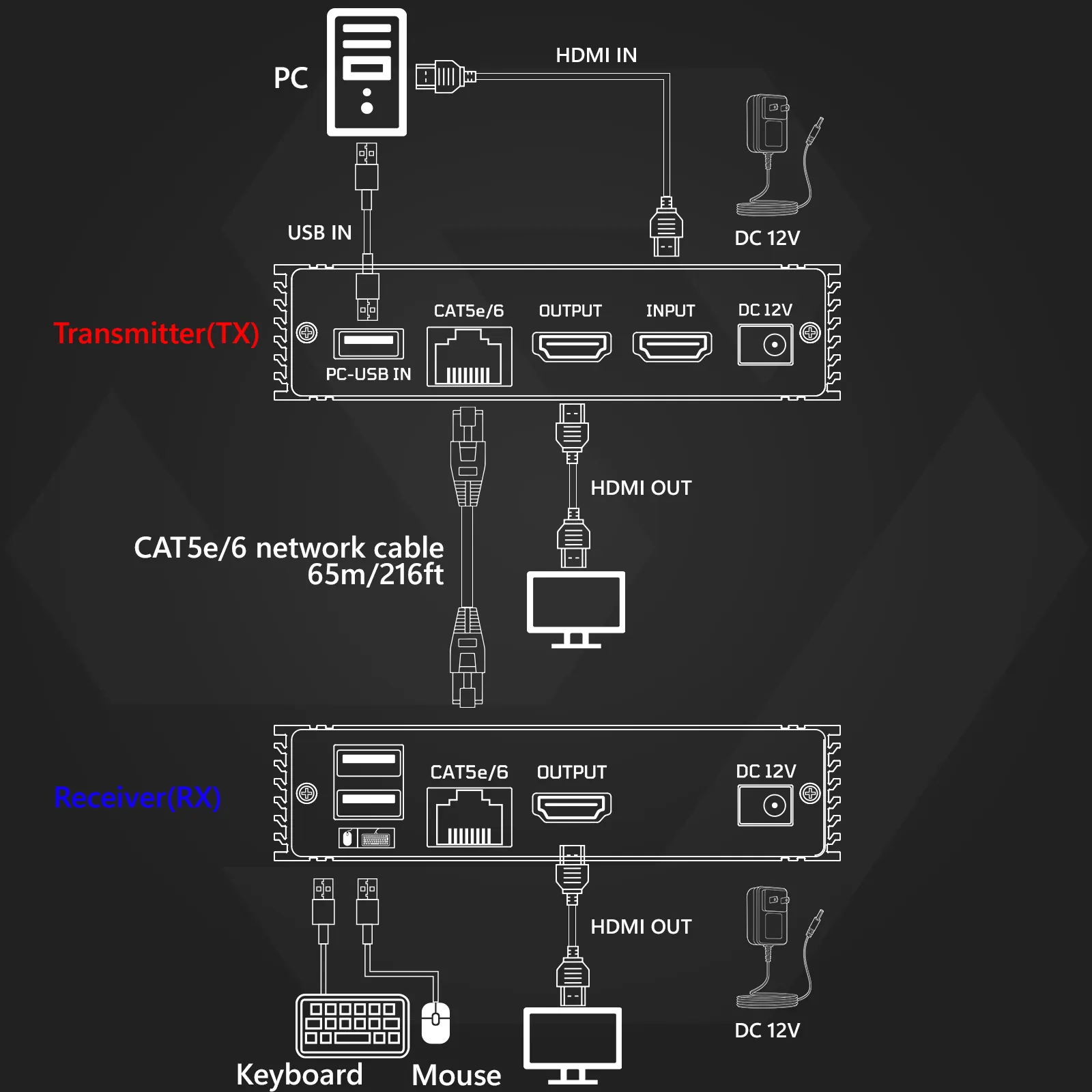

Connections
Transmitter Input	1x HDMI Type A (19-pin female), 1x USB-B (USB B type)
Transmitter Output	1x HDMI Type A (19-pin female), 1x CAT (RJ45)
Receiver Input	1x CAT (RJ45)
Receiver Output	1x HDMI Type A (19-pin female), 2x USB-A (USB A type)
Mechanical
Housing	Aluminum Enclosure
Color	Space Gray
Dimensions	140mm (W) × 145mm (D) × 52mm (H)
Weight	TX: 120g / RX:120g
Power Supply	Input: AC100–240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	TX: 1.92W (Max) / RX: 1.68W (Max)
Operation Temperature	32–104°F / 0–40°C
Storage Temperature	–4–140°F / –20–60°C
Relative Humidity	20–90% RH (no condensation)
