4K60Hz HDMI2.0 Matrix Switch 2 in 2 Out Switcher Splitter Box with SPDIF and 3.5mm Audio Output

Feature

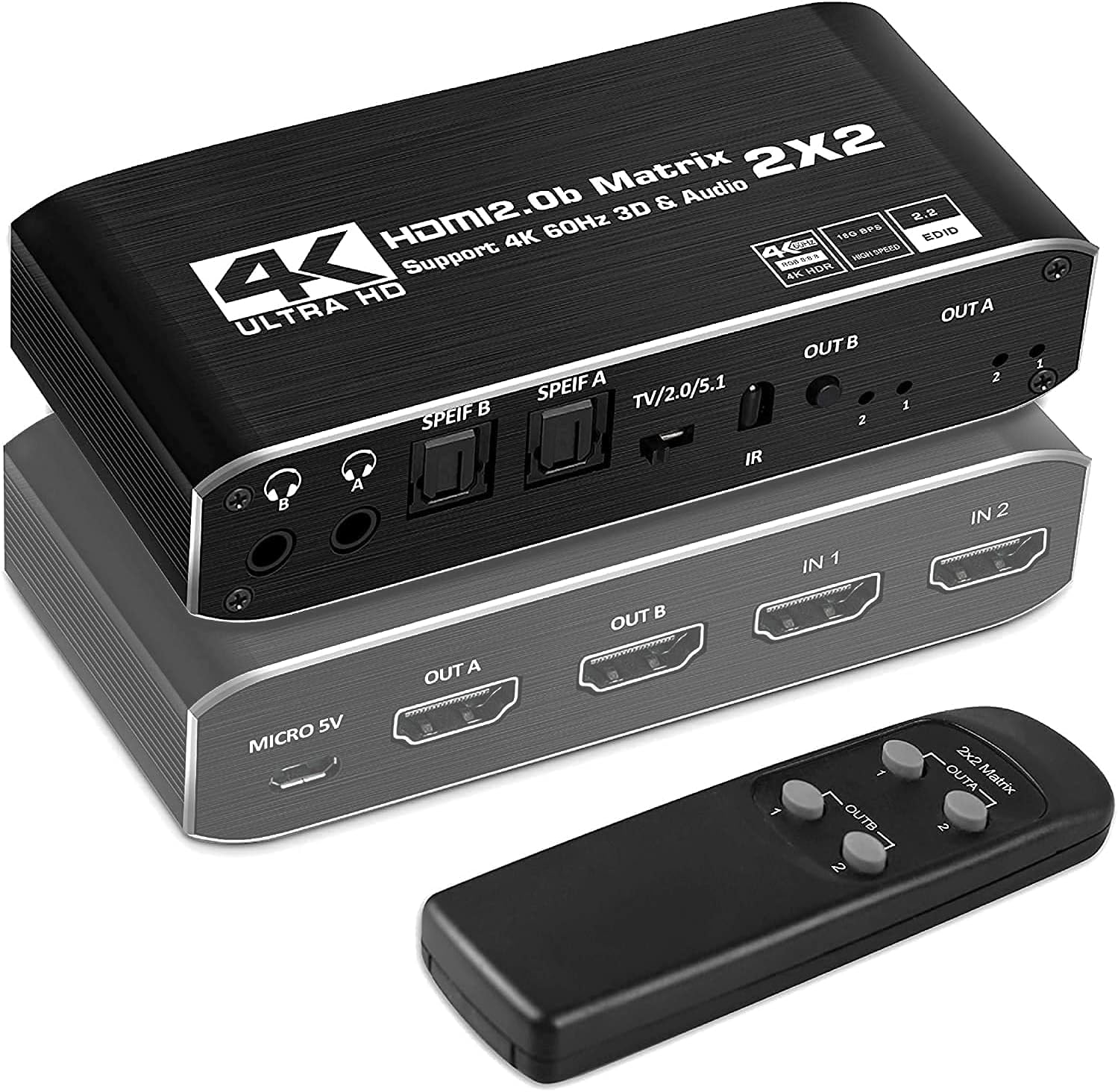

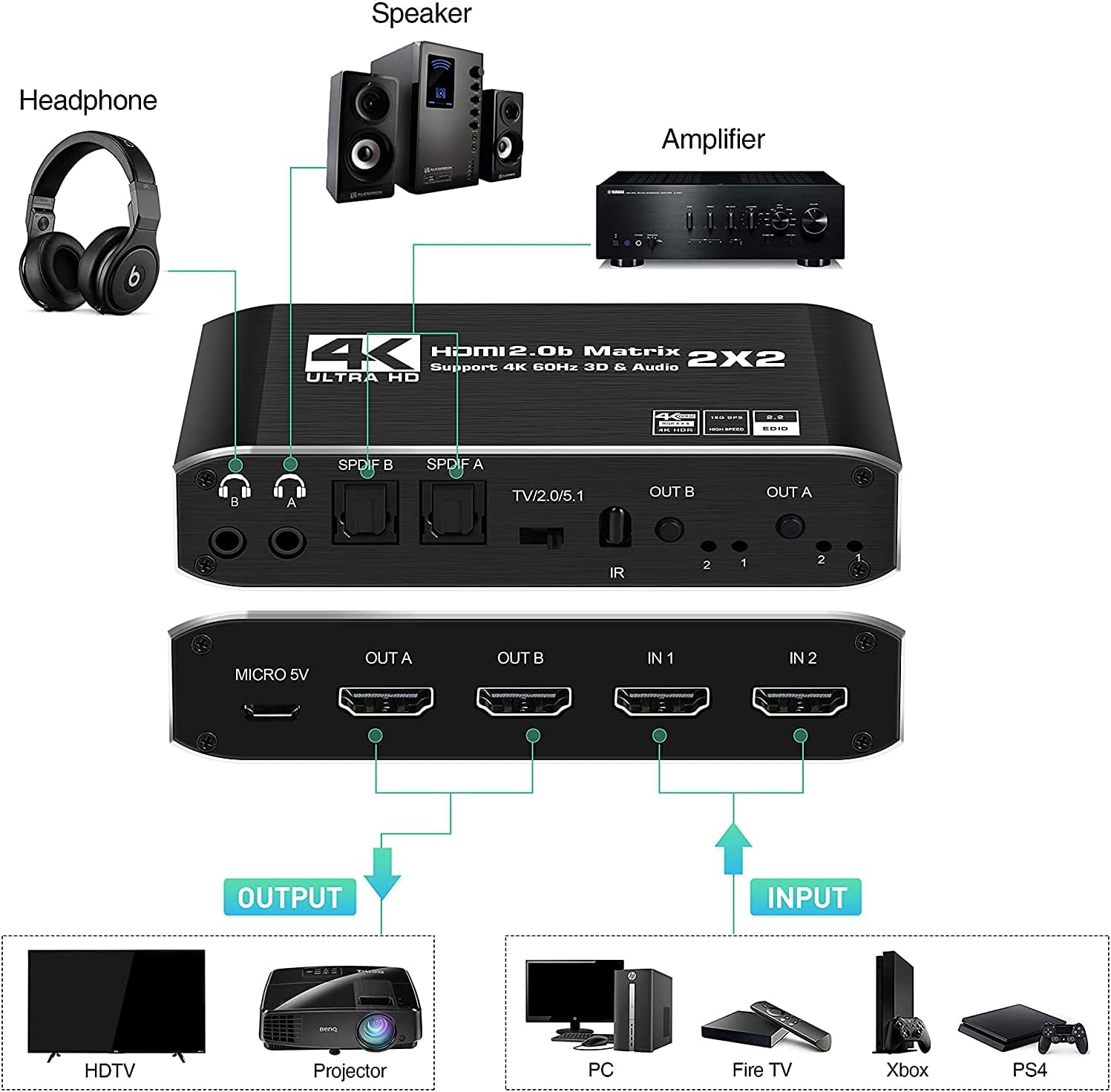

HDMI Matrix Switch 2 Inputs & 2 Outputs 4K HDMI Matrix supports 2 HDMI sources to 2 displays at up to 4K@60Hz. It features HDMI audio extraction via Toslink SPDIF or 3.5mm audio output, and supports IR remote control. Ideal for home theater, office, school, meeting room, hotel, and commercial applications.
High-Quality Transmission Supports resolutions up to 4K@60Hz with built-in auto equalization and amplification for stable, lossless transmission. Compliant with HDMI 2.0b, HDCP 2.2, HDR, 3D, RGB 4:4:4, Deep Color, and supports LPCM / Dolby / DTS 5.1 audio, EDID management, and 18Gbps bandwidth.
Wide Compatibility Compatible with most HDMI devices, including Fire TV, Apple TV, PS3/4/5, Xbox, MacBook, PC, Blu-ray player, IPTV, media box, projector, Roku, and Chromecast.

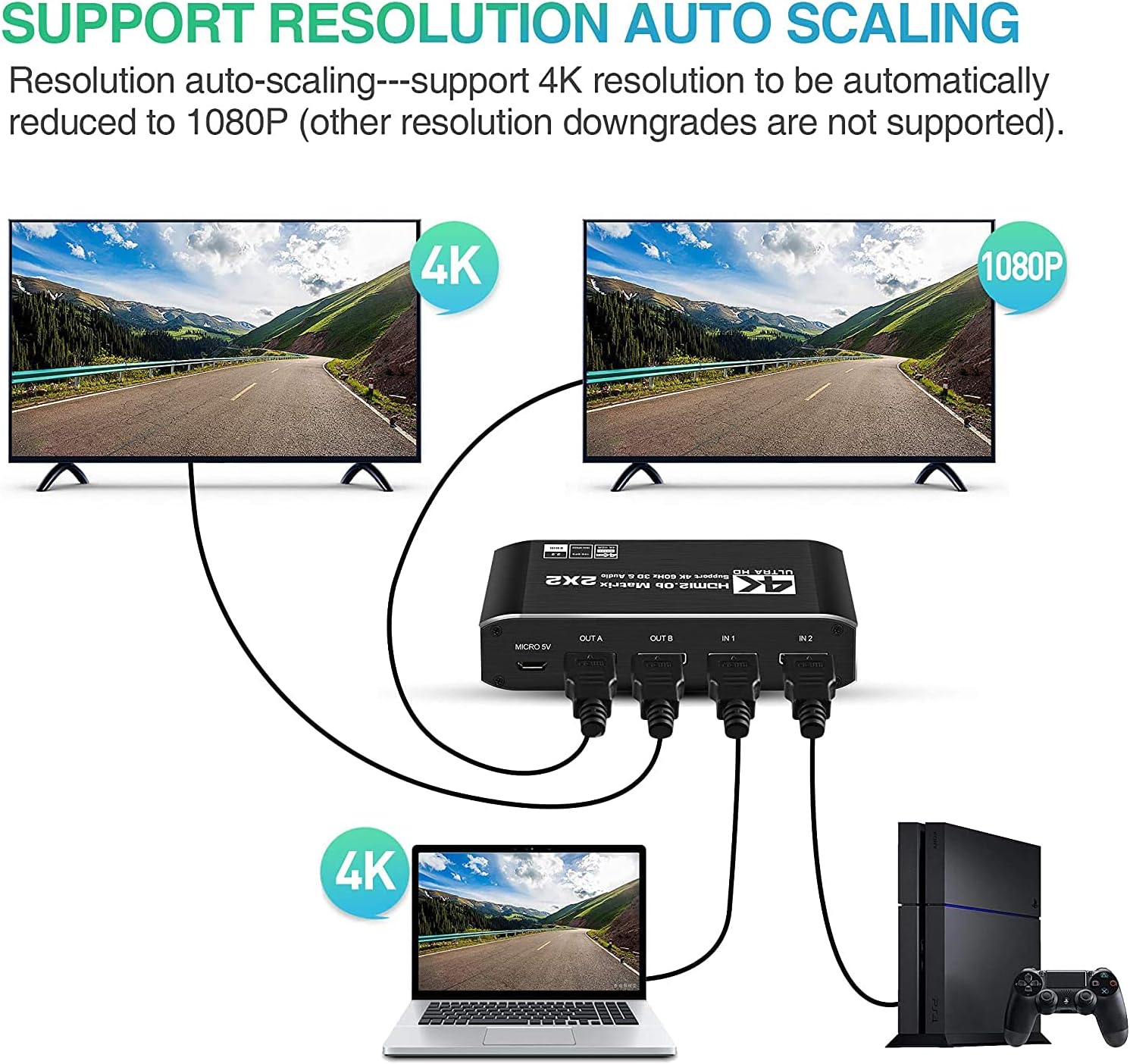

Auto Downscaling & Easy Use Supports 4K to 1080p downscaling for mixed-resolution displays. Plug and play design allows switching via button or remote in under 3 seconds, with LED indicators showing active ports.

HDMI Input	2
HDMI Ooutput	2
HDMI Version	HDMI2.0 HDCP1.4
HDMI Resolution	up to 3840*2160/60Hz YUV4:2:0
Color Depth	8/10/12/24 bit deep color
Max Bandwidth	600MHZ
Max Baud Rate	3.4Gbps
Input cable distance	≤8m AWG26 HDMI 2.0 standard cable
Output cable distance	≤8m AWG26 HDMI 2.0 standard cable
Max working current	500mA
Power Adapter Format	Input: AC （50HZ, 60HZ） 100V-240V Output: DC5V/1A
Material	Aluminum Alloy
Color	Black
Operating Temperature range	(-10 to +55°C)
Operating Humidity range	.5 to 90%RH （No Condensation）
Dimension (L x W x H)	11.26.32.5(cm)
Weight	260g
Compatible Devices	Projector, Gaming Console, Monitor, Television, DVD Player
Certificate	CE FCC RoHS
