5 in 1 out 4k60HZ Ultra-thin HDMI Switch

Feature

5 In 1 Out HDMI Switch: Connect up to 5 HDMI sources to 1 display and switch inputs easily—no repeated plugging/unplugging.
4K@60Hz Performance: Supports 4K@60Hz, 4K×2K, 1080P, 3D, HDR, and 18Gbps bandwidth;
HDMI V2.0 Compliance: Compatible with HDMI 2.0/1.4 and HDCP 2.2/1.4. (Recommend HDMI 2.0 cable, AWG26–28, up to 2m in + 2m out.)‍

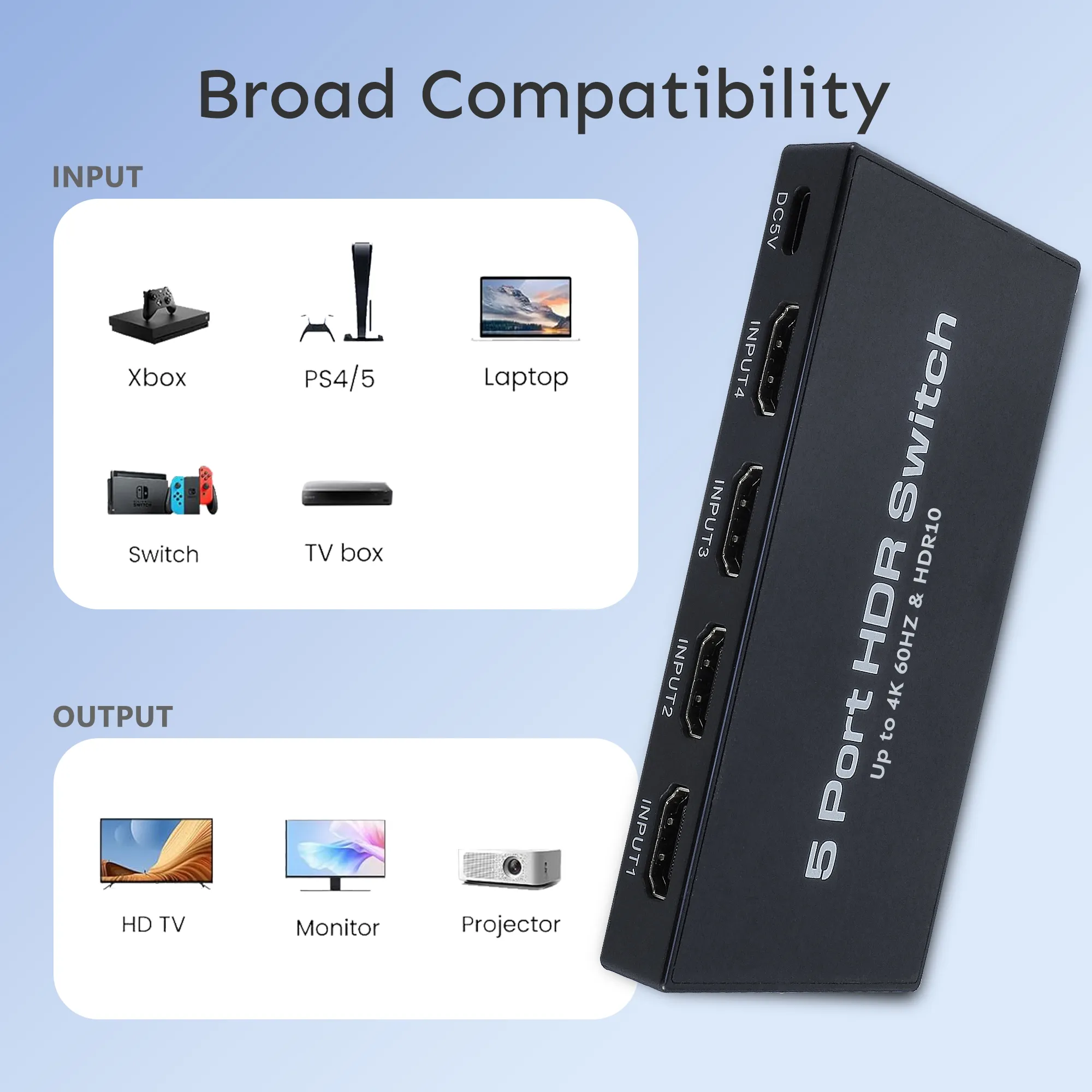

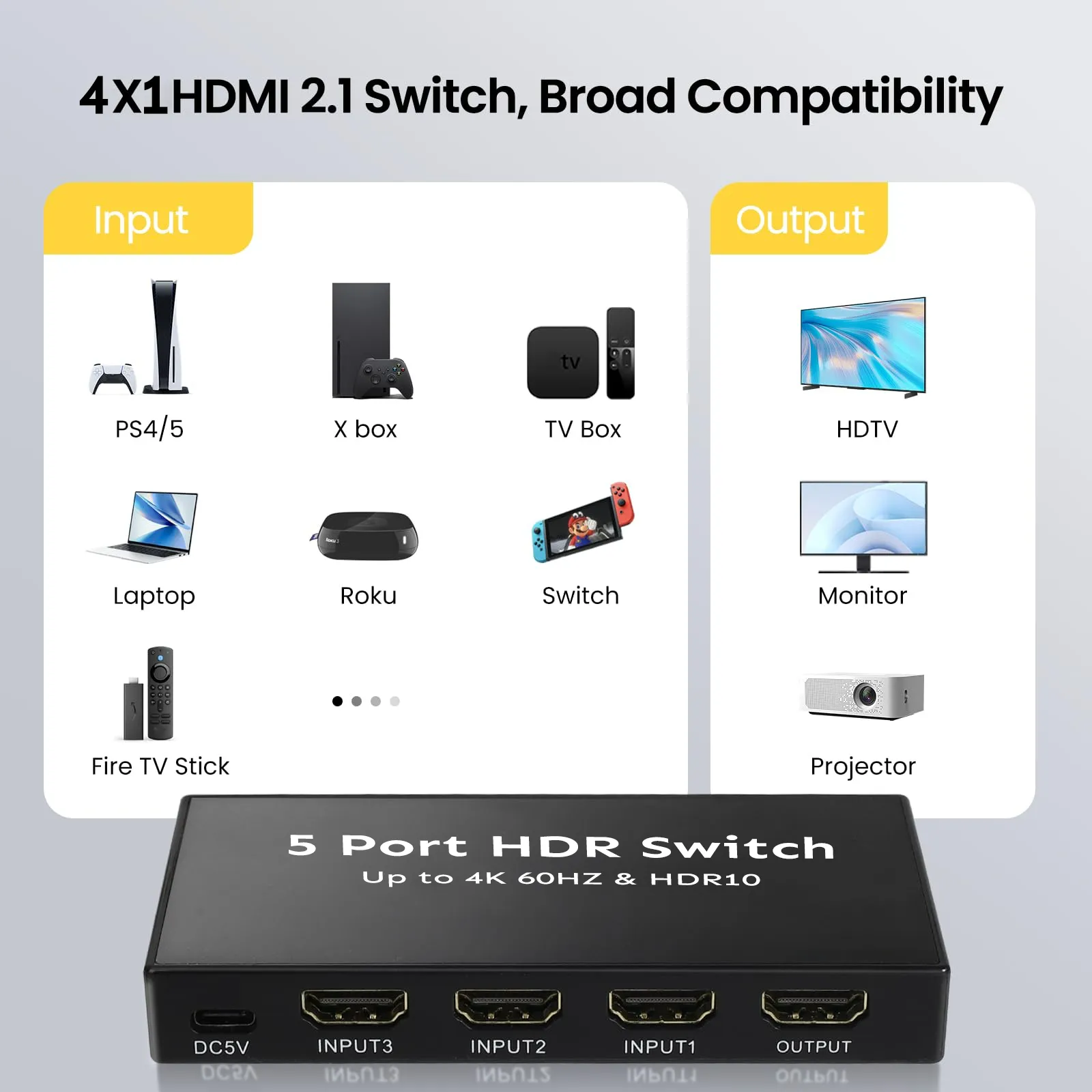

Wide Compatibility: Inputs work with Fire Stick, Xbox, PS4/PS5, Blu-ray player, Nintendo Switch; output to HDTV or projector.‍

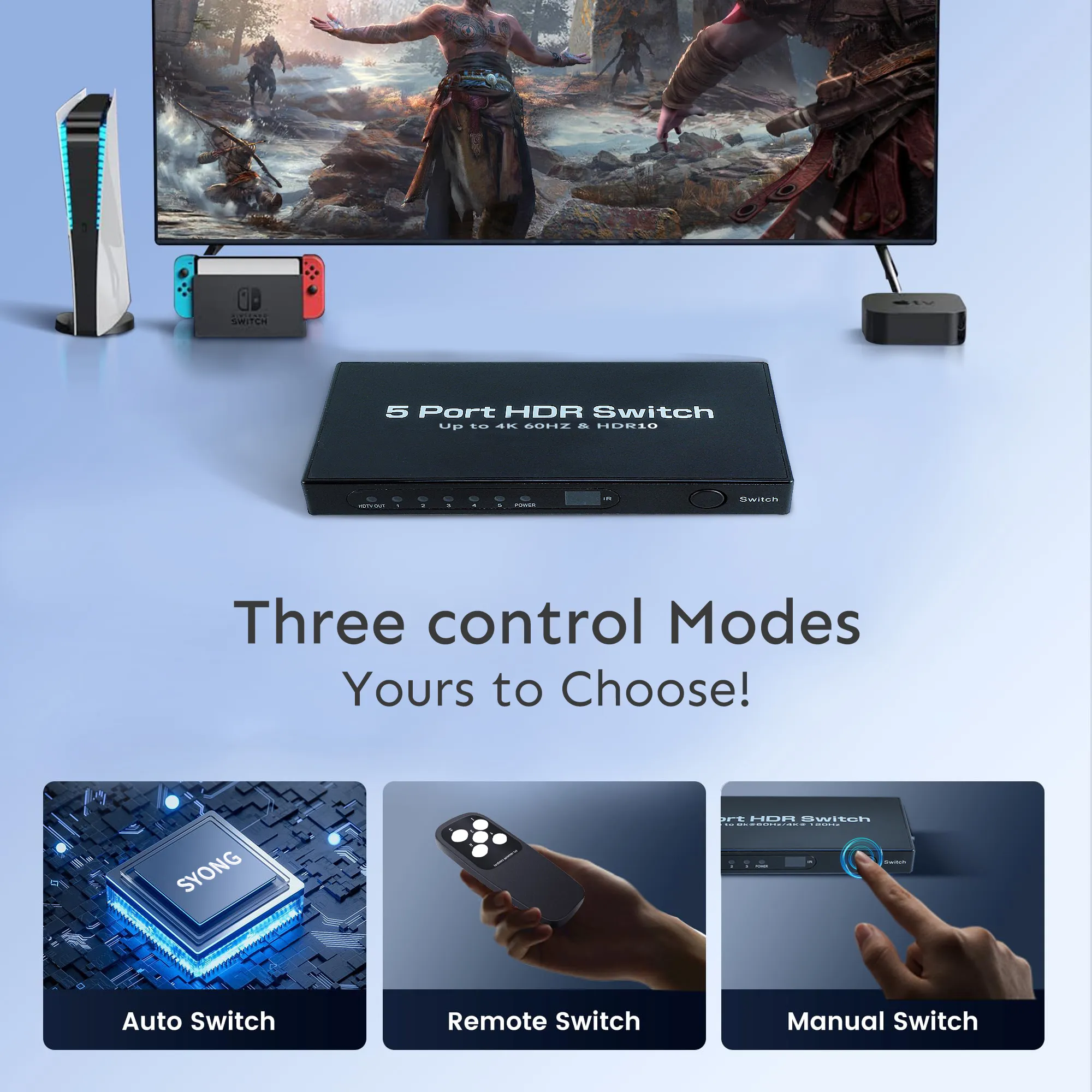

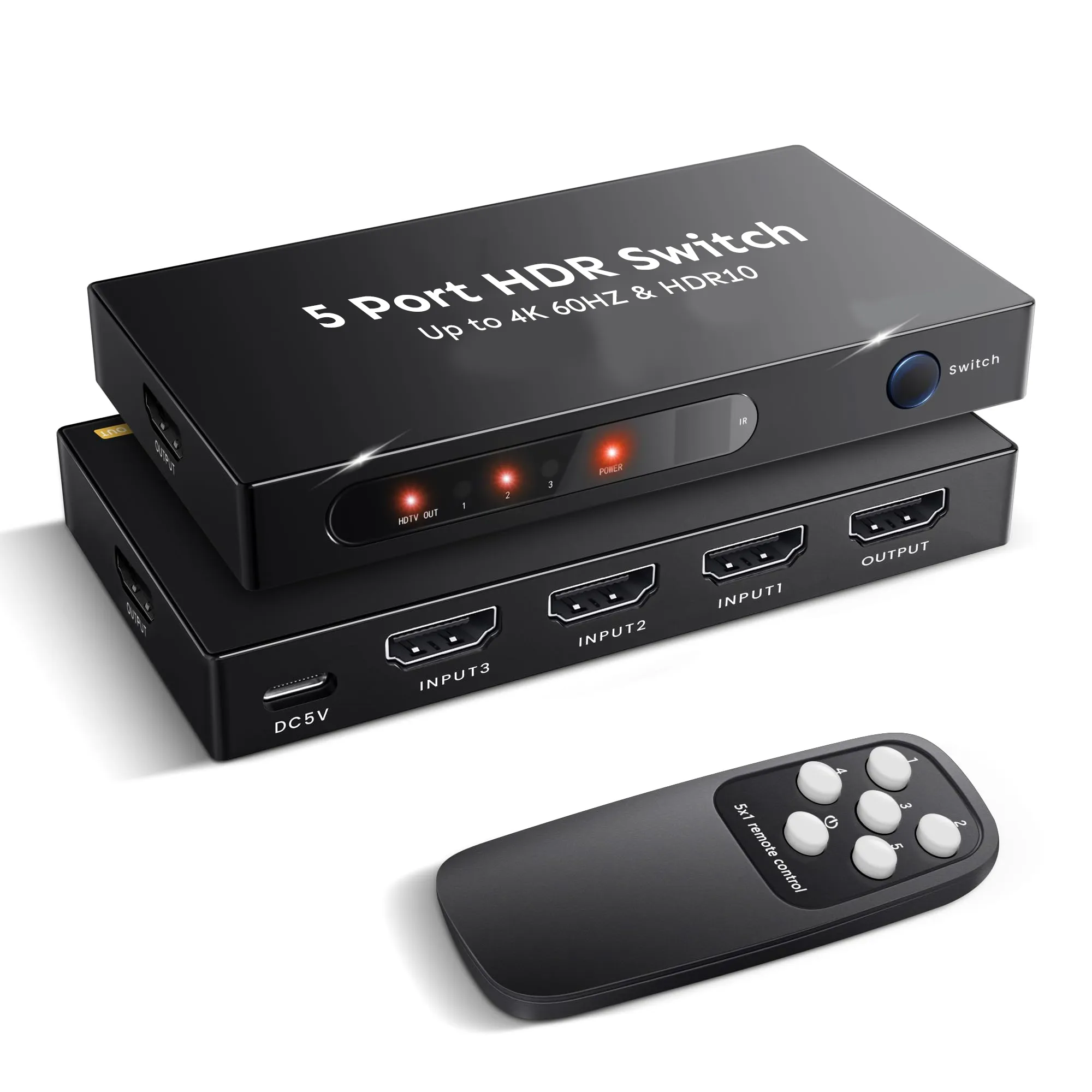

Auto + Manual Switching: Supports auto switching, button switching, and remote control switching for flexible operation.‍
Stable Transmission: Built-in IC chip ensures smooth 18Gbps signal; USB-powered design improves stability and reduces frame/image drop (USB cable included).

‍

HDMI Version	HDMI 2.0b
HDMI Version	HDCP 2.2
Mode	4-in-1-out 4K Ultra-Thin HDMI Switch
Supported Resolution	Up to 4K@60Hz
Supported Audio Formats	DTS:X / Dolby Atmos / Dolby Digital / DTS-HD / Dolby TrueHD / LPCM 7.1 / Dolby AC3 / DSD HD (HBR) / PCM
Max Bandwidth	330MHz
Max Data Rate	18Gbps
TMDS Signal (I/O)	0.5–1.5V p-p (TTL)
DDC Signal (I/O)	5V p-p (TTL)
Max Input Cable Length	≤ 2m (AWG24 HDMI standard cable)
Max Output Cable Length	≤ 2m (AWG24 HDMI standard cable)
Operating Temperature	-15°C to +55°C
Operating Humidity	5%–90% RH (Non-condensing)
Dimensions (L × W × H)	14.5x12.5x3.6cm
Weight	103g

‍
