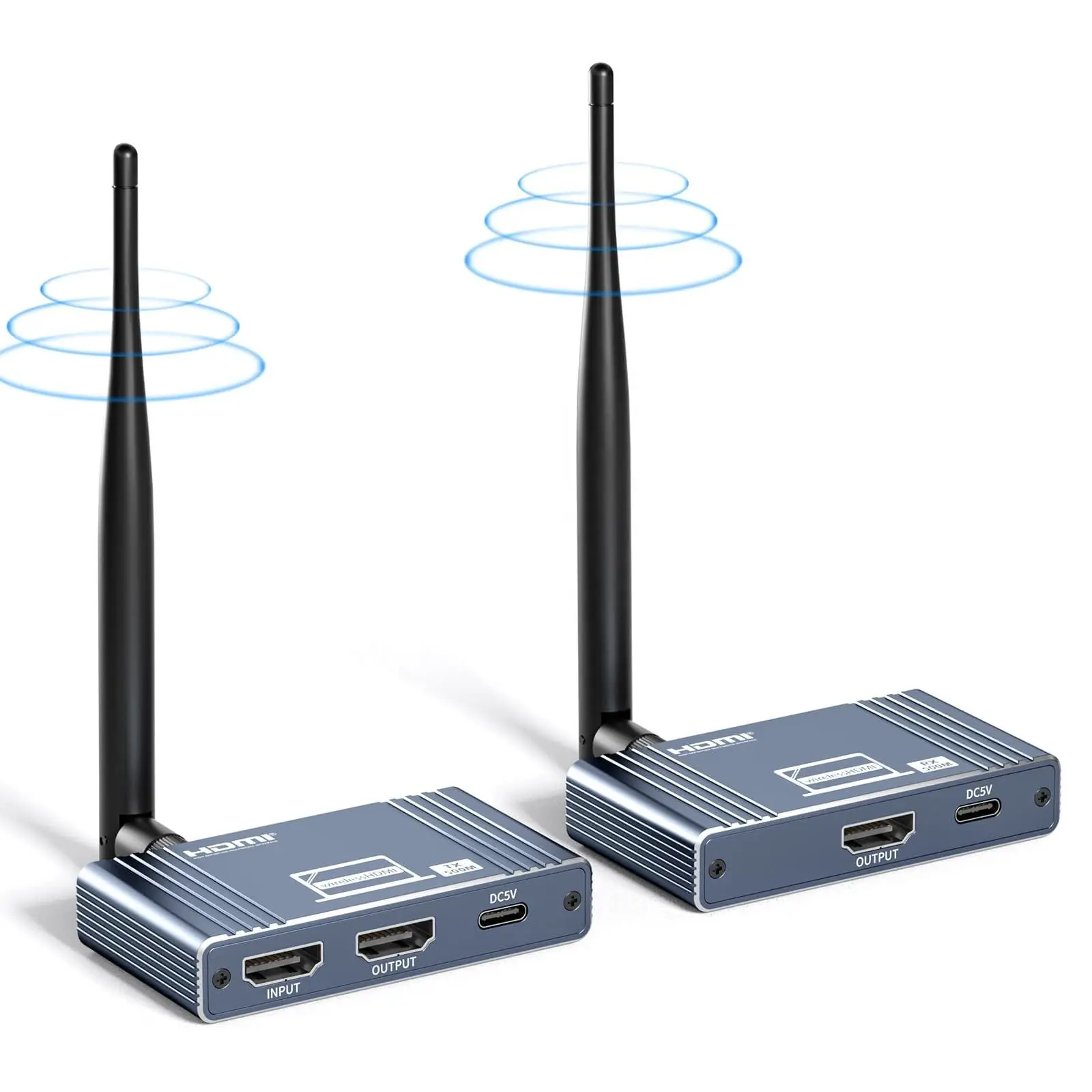

FHD 500M WIRELESS HDMI Transmitter and Receiver Support 8-to-1

Feature

With 5.8G antennas, the transmission distance can reach up to 1640FT/500Meters.
The transmission channel automatically matches between 5.8G frequency. Minimal latency of ≤O.1s.
Support HD1.3, and HDCP 1.2 backward compatible.
Support local loop out for audio and video. The Loop out feature enables output of up to 1080P resolution at a refresh rate of 60Hz.
1 Receiver Supports Up to 8 Transmitters – Flexible switching for multi-source broadcast.

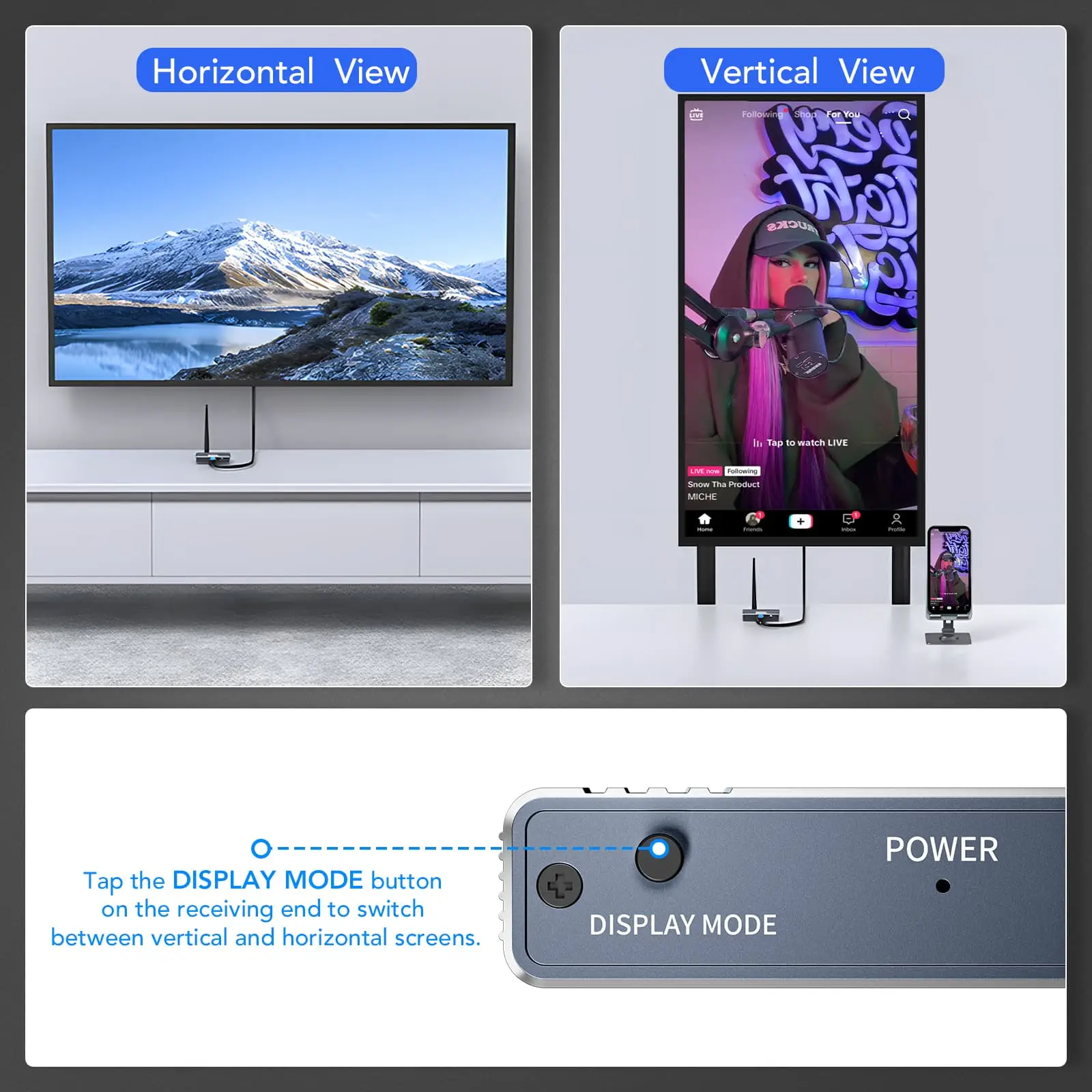

Auto Screen Rotation – Supports both portrait and landscape orientation switching.
Plug and play, no installation program required.
Low power consumption, fast heat dissipation.

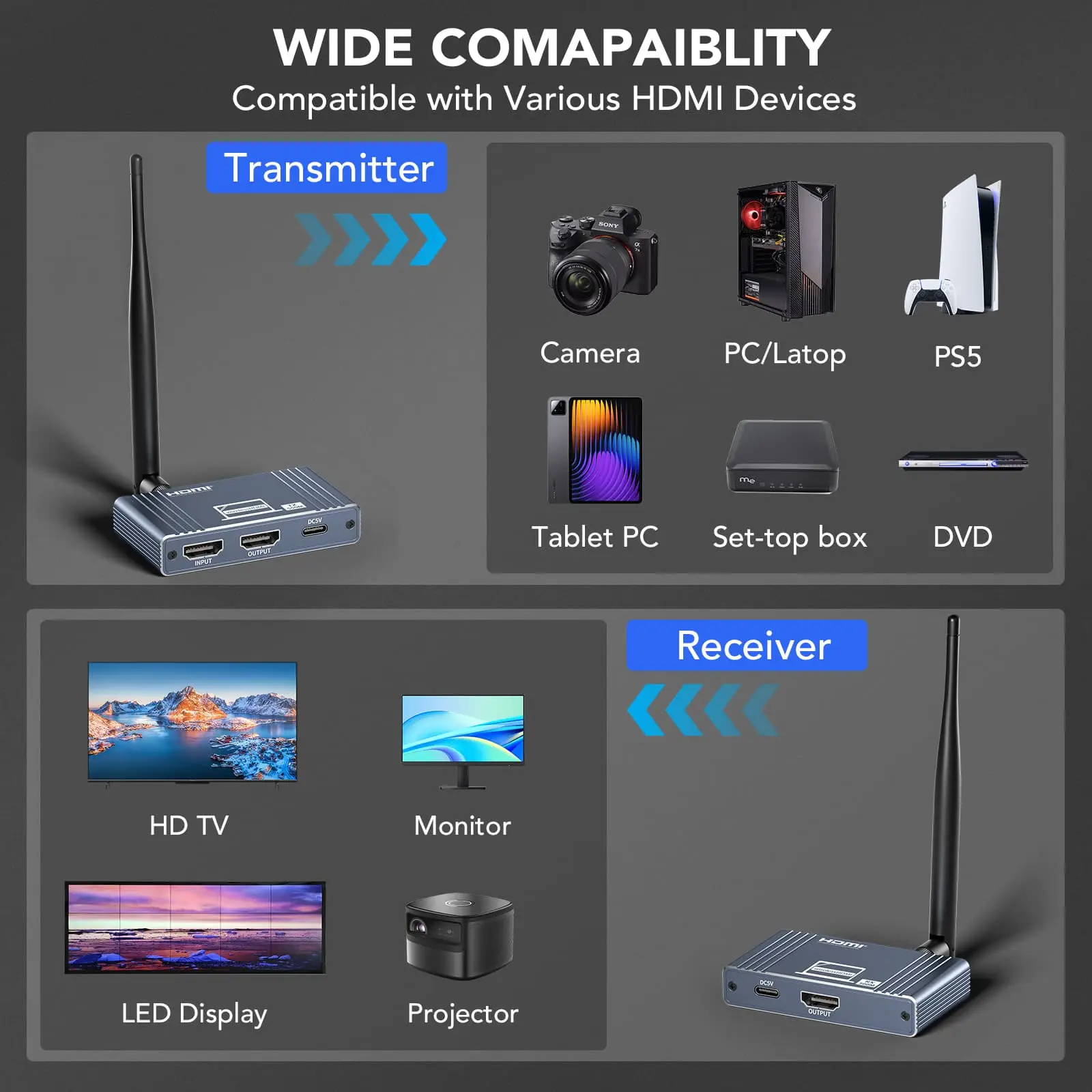

Transmitter input compatible with various devices including TV set-top box, laptop, digital camera, camcorder, and HDMl devices like PS4/5 gameconsole. Receiver compatible with TV, display, projector, live stream switcher and more.
Plug and Play. No need any APP, No software or WiFi connection required. You only need to connect our transmitter to the HDMI input device, then connect the receiver to the HDTV/ Projector/ Monitor, connect the power supply, you can enjoy your project on a big screen.

Technical
HDMI Compliance	HDMI 1.3
HDCP Compliance	HDCP 1.2
Video Resolutions	720x480p60, 1280x1024p60, 1280x720p25/30/50/60, 1920x1080p25/30/50/60,
Transmission Range	500M/1640FT
HDMI Audio Formats	AAC/FLAC / APE / AMR / OgqVorbis / VQF/RealAudio / WMA / MIDI/ MPEG-4 / MP3 / MPEG / AIFF/WAVE/ CD
ESD Protection	±8kV (air-gap discharge) / ±4kV (contact discharge)
Connections
Transmitter Input	1x HDMI Type A (19-pin female)
Transmitter Output	1x HDMI Type A (19-pin female)
Receiver Output	1x HDMI Type A (19-pin female)
Mechanical
Housing	Aluminum Enclosure
Color	Space Gray
Dimension （LxWxH）- Transmitter	165x201x22(mm)
Dimension （LxWxH）- Receiver	165x201x22(mm)
Weight	TX: 60.7g / RX: 60.7g
Power Supply	Input: AC100–240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	18W (Max)
Operation Temperature	32–104°F / 0–40°C
Storage Temperature	–4–140°F / –20–60°C
Relative Humidity	20–90% RH (no condensation)
