HDMI AUDIO SWITCH

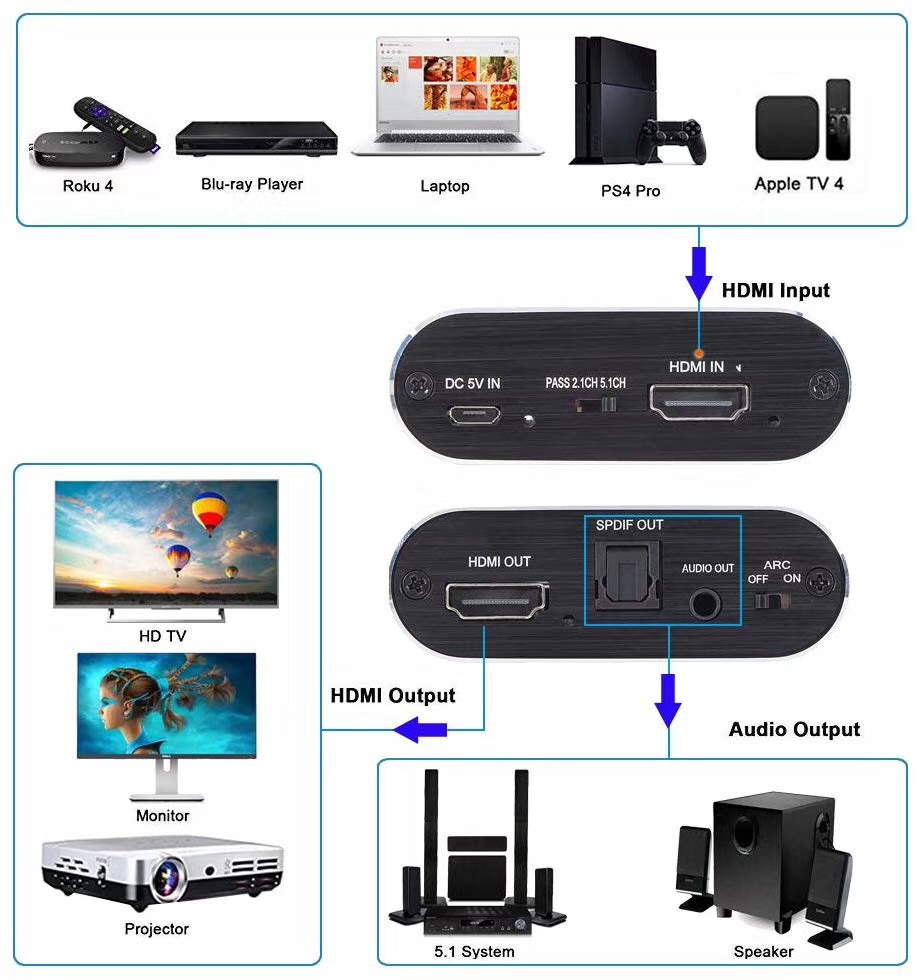

• HDMI Audio Extractor: Support one HDMI input source to one HDMI output + optical toslink SPDIF and analog 3.5mm stereo audio output. (Tips: SPDIF and 3.5mm audio support output separately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)

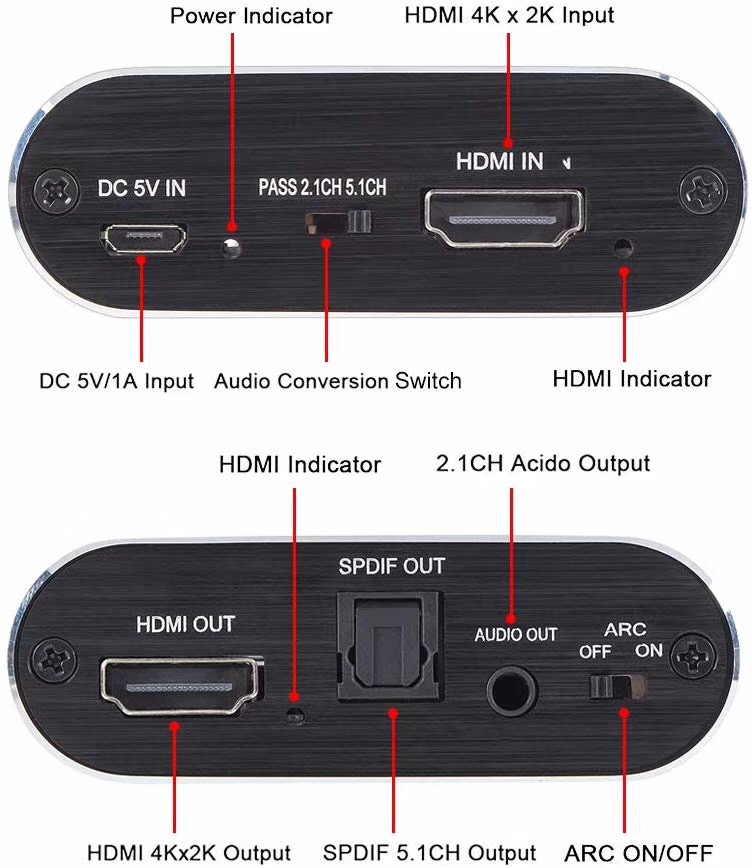

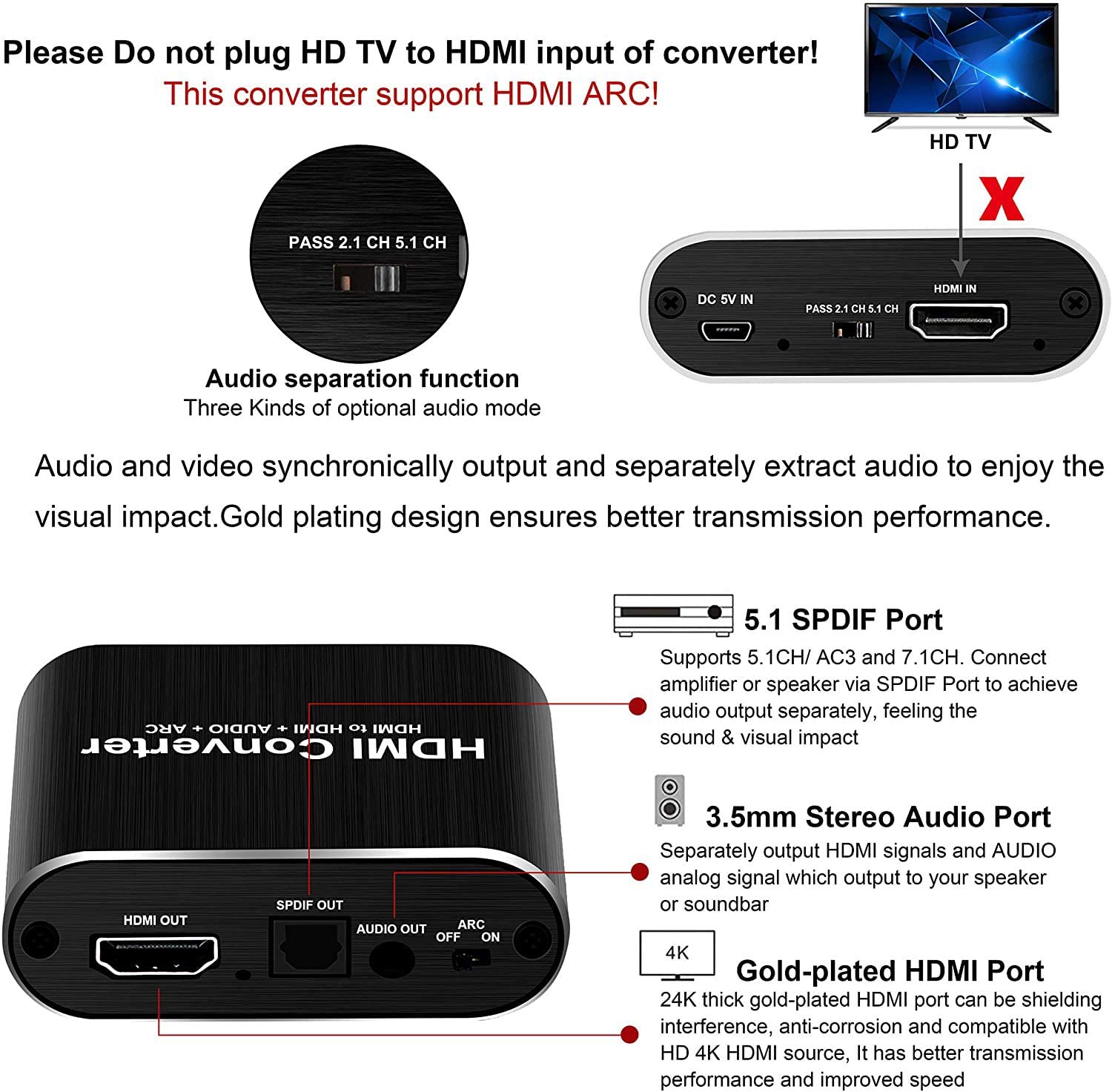

• Three Audio Mode Settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH DoblIy Digital, DoblIy TrueHD, DTS-HD. (Note: 1. Our product don’t support DoblIy Digital plus and CEC function; 2. To receive audio from both Optical and L/R output ports, the input source device format must be set to PCM/stereo.)
• 4K@60Hz High Resolution: avedio links HDMI audio Extractor Support 4KX2K@60Hz/ 3D/1080p/1080i/720p/576i/480p/480i. Support video color format: 24bit/deep color 30bit,36bit with sync sound; Maximum support HDMI 2.0, HDCP2.2;

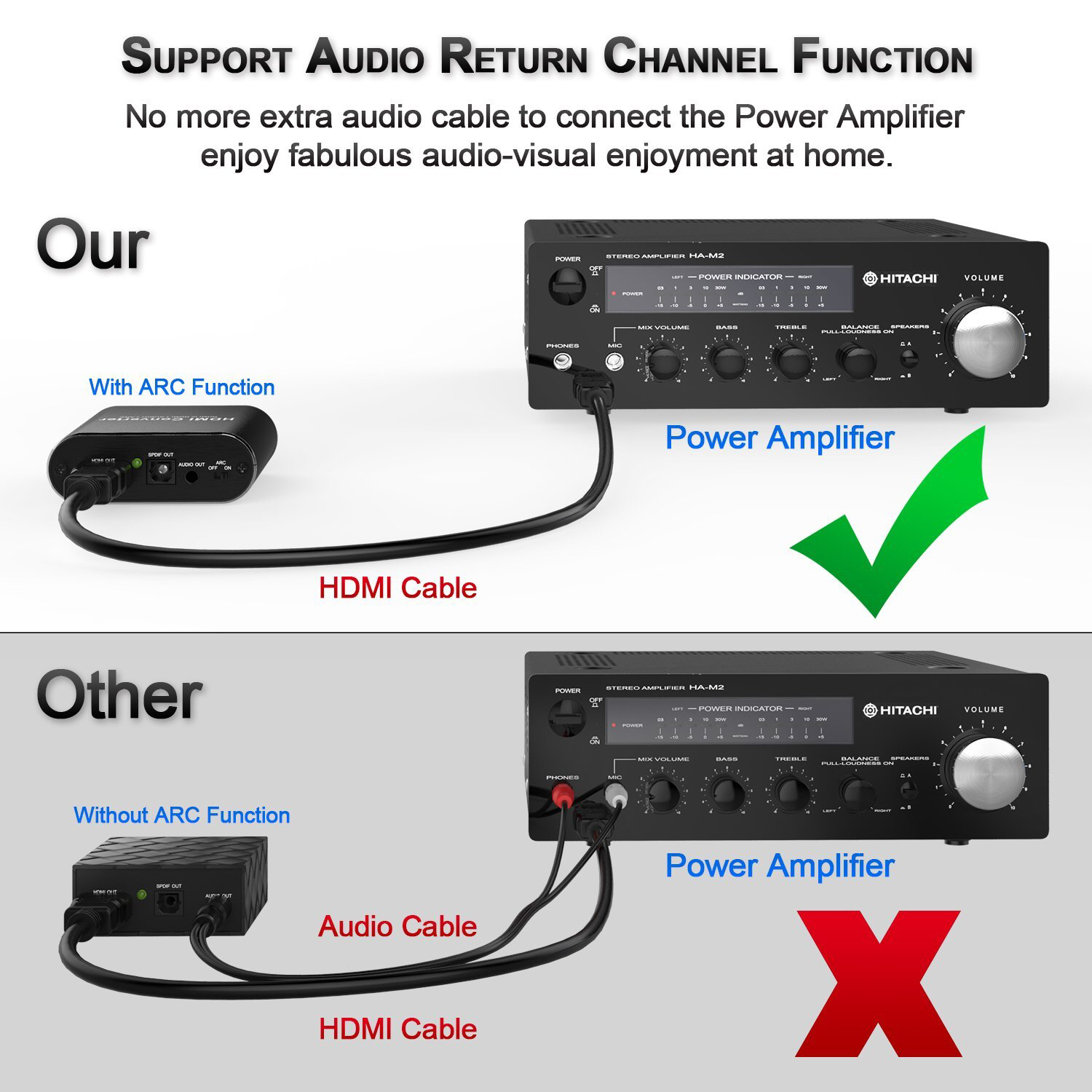

• ARC (Audio Return Channel) Function: ARC lets your TV send audio to an external sound system (such as a soundbar or receiver) , allowing you to enjoy an immersive home theater experience instead of the poor sound of TV.
• Wide Compatible: Suitable for all standard HDMI source devices, compatible with Blu-ray/ DVD/ HD player, cable/satellite box, Fire TV Stick, Apple TV, PS3/4, PS5, Xbox, PC/laptop, HD camera, HD DVR etc.

‍
