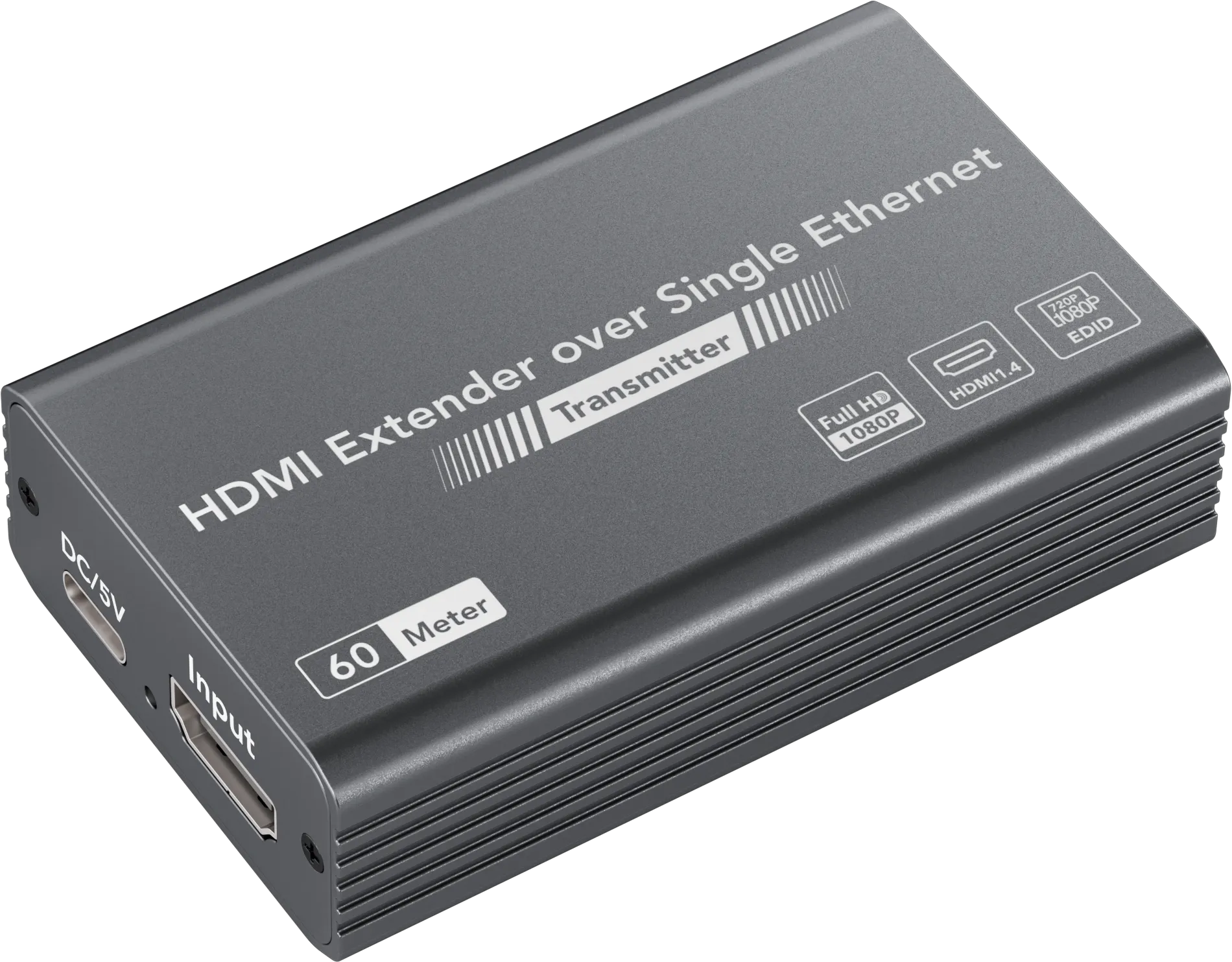

New 1080P HDMI 60M EXTENDER

Feature

【HDMI Extender】This HDMI Transmitter and Receiver extends HDMI digital video & audio signals simultaneously over single CAT5e/6/7 ethernet lan cable, the maximum transmission distance up to at least 196ft(60 meters). No drivers needed. Just plug and play.
【Widely Used】This HDMI sender and receiver compatible with most of deivces with HDMI outputs, such as PC, DVD Player, PS3, PS4, HDMI streaming TV sticks. Widely used for digital signage, houses of worship, classrooms, boardrooms, conference room projectors, gaming, video production, ect.
【Lossless Transmission】This HDMI ethernet extender transmits HDMI signals without singal loss via Ethernet cable. Zero latency, no loss of quality.
【Full HD 1080P】This HDMI to RJ45 and RJ45 to HDMI extender supports maximum HDMI resolution up to 1080P@60hz. Audio format supports DTS-HD/D o l b y-true HD/DTS/D o l b y-AC3/DSD.
【Handy & Sturdy】High quality aluminum housing design with integrated cooling holes offer efficient heat dissipation ensuring the system stability during long hours of operation. Sturdy metal enclosure minimizes EMI/RFI noise interference.

‍

Length of CAT-6 / CAT-7 cable between Rx and TX	Up to 60 meters
HDMI Input	24 / 50 / 60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Support audio input	DTS-HD
HDMI Output	24 / 50 / 60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Support audio output	DTS-HD
Max bandwidth	165MHz
Max baud rate	1.65GbpS x 3
Input video signal	0.5-1.5 volts p-p
Output DDC signal	5volts P-P ( TTL)
Input HDMI cable distance	≤15m AWG26 HDMI standard cable
Output HDMI cable distance	≤20m AWG26 HDMI standard cable
TX Max working current	500mA
RX Max working current	500mA
Power adapter format Input	AC ( 50HZ , 60HZ ) 100V-240V ; Output : DC5V / 1A
Operating Temperature range	(-15to + 55 C)
Operating Humidity range	5to 90 % RH ( No C ondensation)
Dimension ( L x W x H )	78.7X48.6X21.8mm
