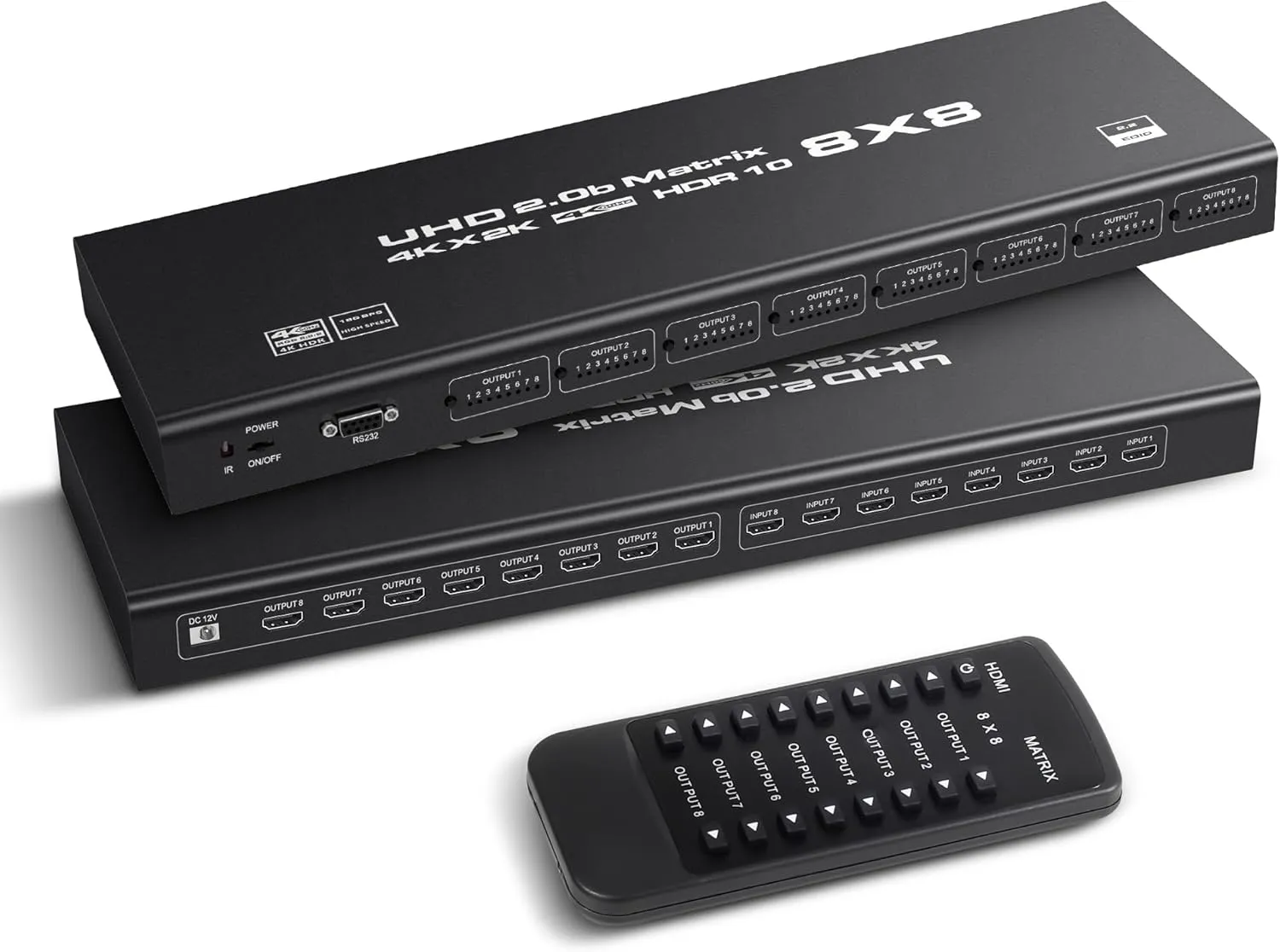

New 8X8 4K30Hz HDMI2.0 Matrix Support Seamless Switch

Feature

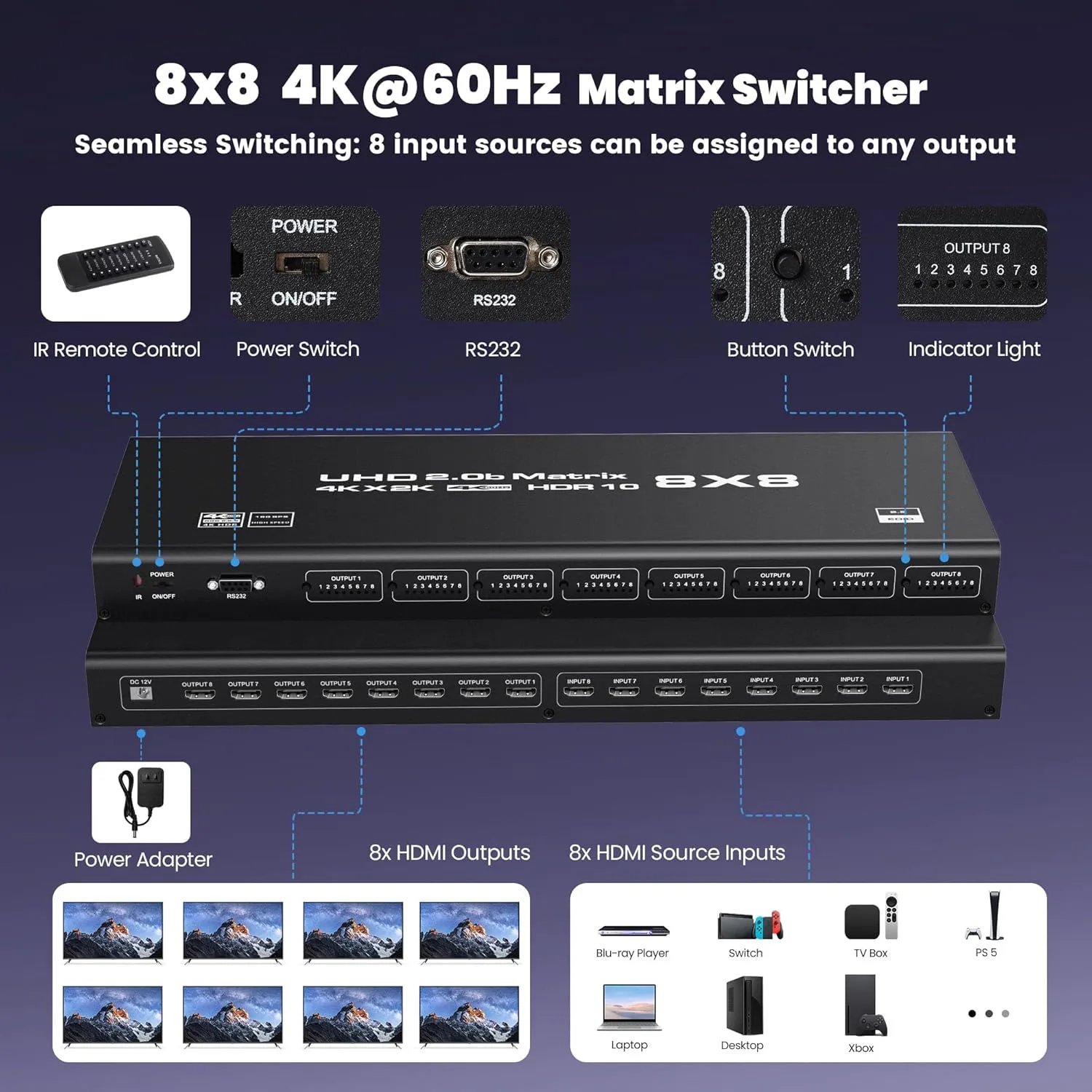

【A variety of display modes】: 8 monitors displaying different screens (switching function); 8 monitors displaying the same screen at the same time (distribution function); 4 monitors displaying the same screen, 4 monitors displaying different screens (switching and distribution of the combination of functions); input side of the installation of splicing, the display can show splicing effect (splicing auxiliary function); the effect of arbitrary switching.
【A variety of switching control mode】: can be infrared remote control, RS232 control and key switching, no matter which switching mode is simple to operate, according to the occasion flexible switching, to provide us with the best experience effect!
【Powerful compatibility】: Support Windows series/Linux/MAC OS and other operating systems; use the device to support game consoles, set-top boxes, computers, projectors, monitors, and other peripheral devices, plug and play, no need to install drivers, improve our work efficiency.
【Ultra High Resolution】: Input resolution supports 4K@60Hz or 4K@30HZ/1080P/720P/1024*768/1360*768, etc. and is backward compatible. Provide excellent video quality, support 3D stereo imaging technology, 4K HD transmission, clearer and more detailed colors, lifelike picture quality.
【More stable performance】: adopts high-performance digital chip, RS232 control for 8 HD output signals at the same time, avoiding snowflake, flashing screen and other undesirable phenomena.
【Better Material】: Integral alloy frosted body, corrosion-resistant, isolated from external EMI, RFI radio interference, abrasion-resistant, easy to dissipate heat, heat-resistant, can be used for a long time.

Specs

Specifications

Video Format Support	Up to 4K@60Hz
Deep Color	8 / 10 / 12-bit
Audio Formats Supported	DTS-HD / Dolby TrueHD / LPCM 7.1 / DTS / Dolby AC3
Max Data Rate	18Gbps
Transmission Distance	≤5m (4K, HDMI AWG26); ≤20m (1080P, HDMI AWG26)

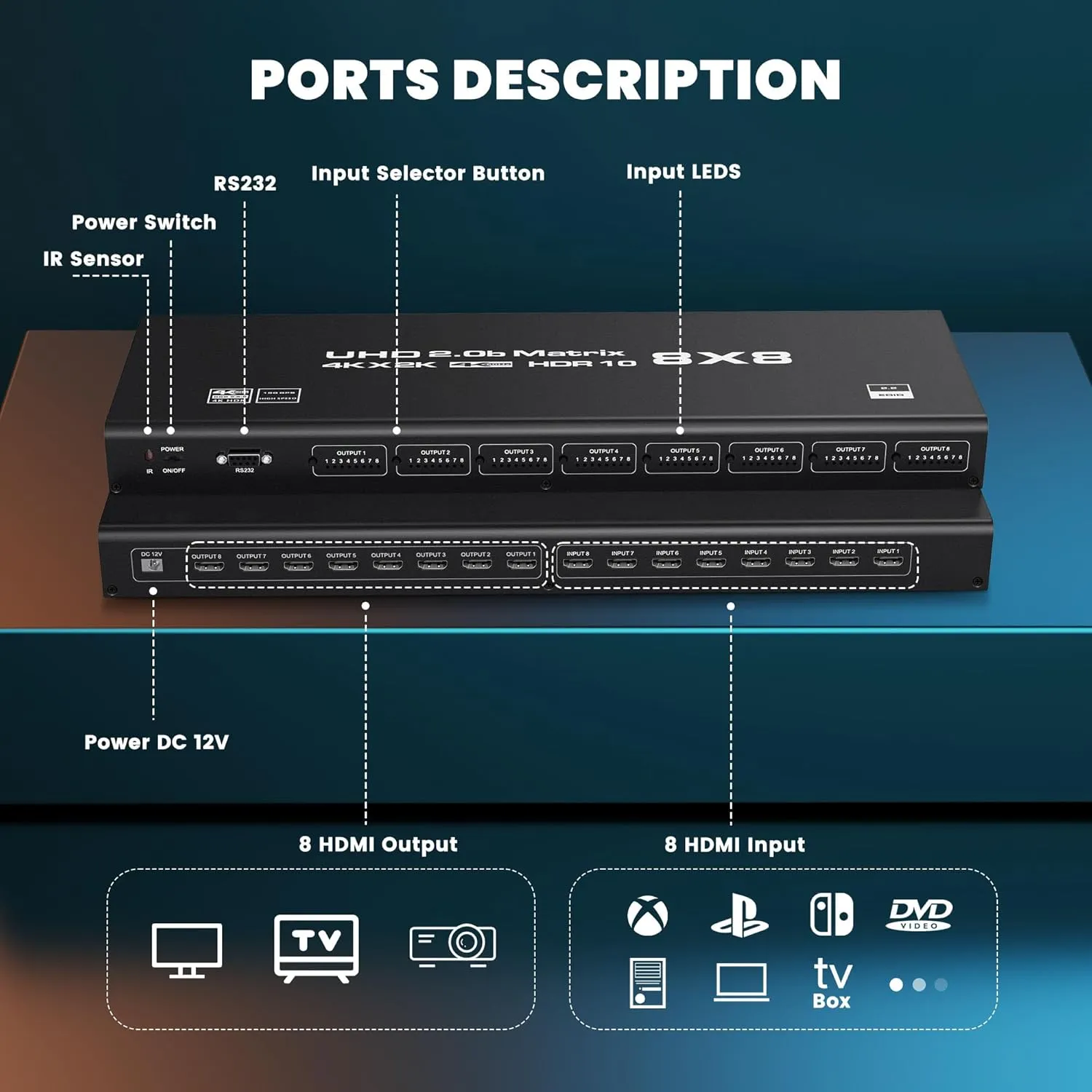

HDMI Input Ports	8
Image Transmission	8 Outputs
Power Adapter	Input: AC 100–240V (50/60Hz); Output: DC 12V/3A
Operating Temperature	-15°C to +55°C
Operating Humidity	5%–90% RH (Non-condensing)
Dimensions (L × H × W)	17.72 × 1.57 × 5.91 inches
Weight	4 lbs

Package Contents

1 × HDMI 2.0 Matrix 8×8
1 × IR Remote Controller
1 × DC 12V Power Adapter
1 × User Manual
