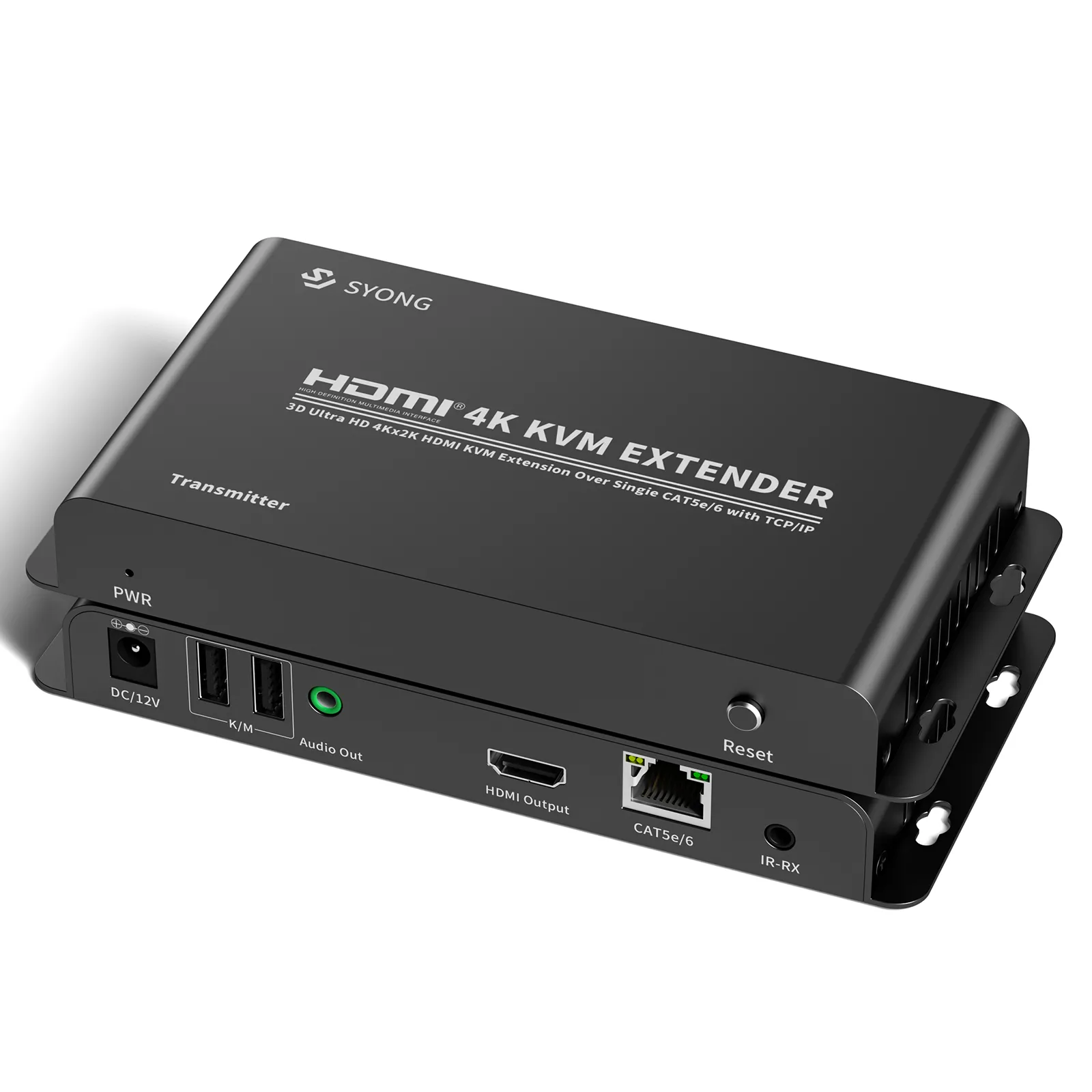

True 4K 200M HDMI KVM Over Cat5e/6 Extenders support N to N

Feature

Signal transmission :CAT5e/6(recommended) cables up to 200 meters instead of HDMI cables are connected between TX and RX Extender.
Support HDMI 1.4/HDCP1.4;

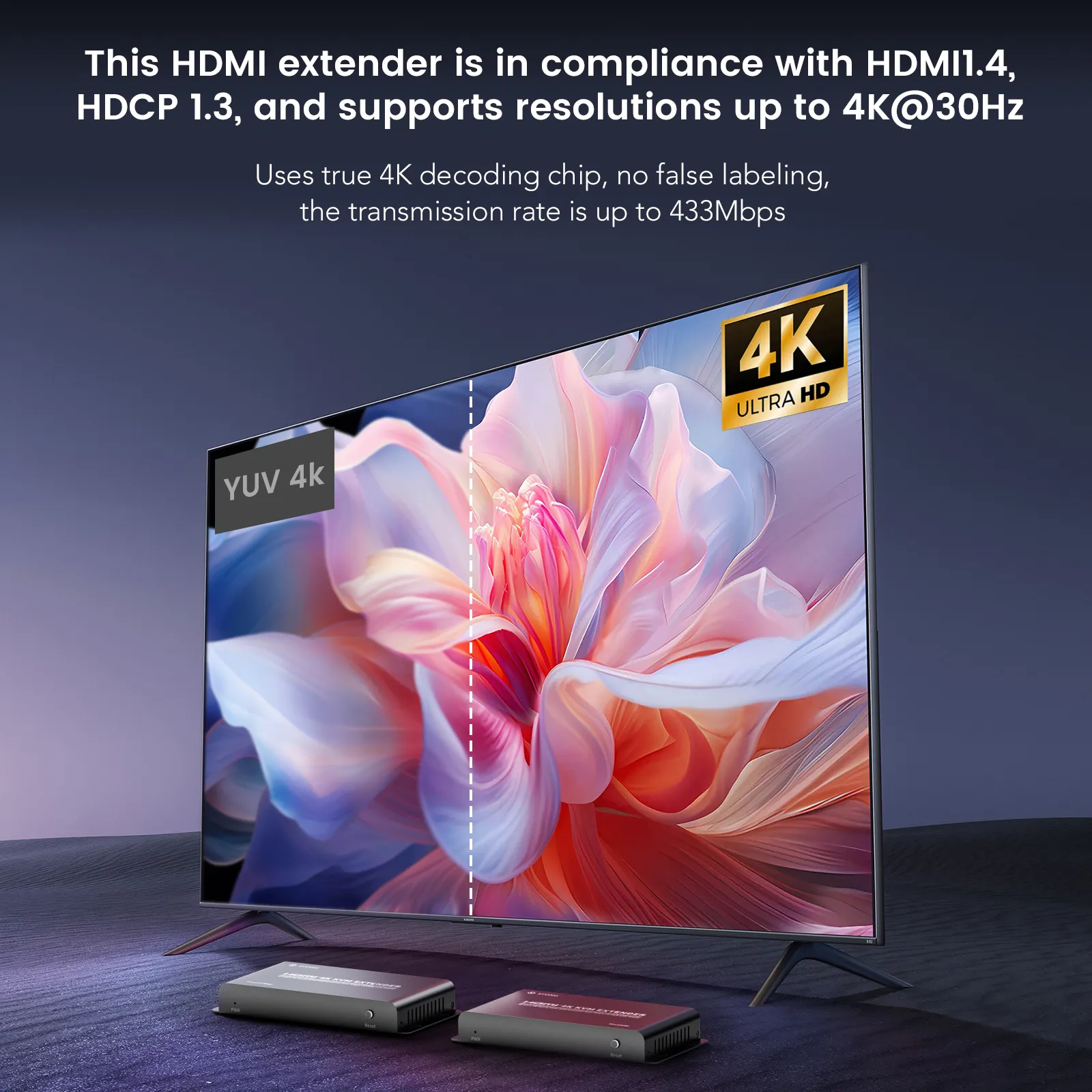

Support input/output resolution:480p,576p,720p,1080p,4Kx2K@30Hz;

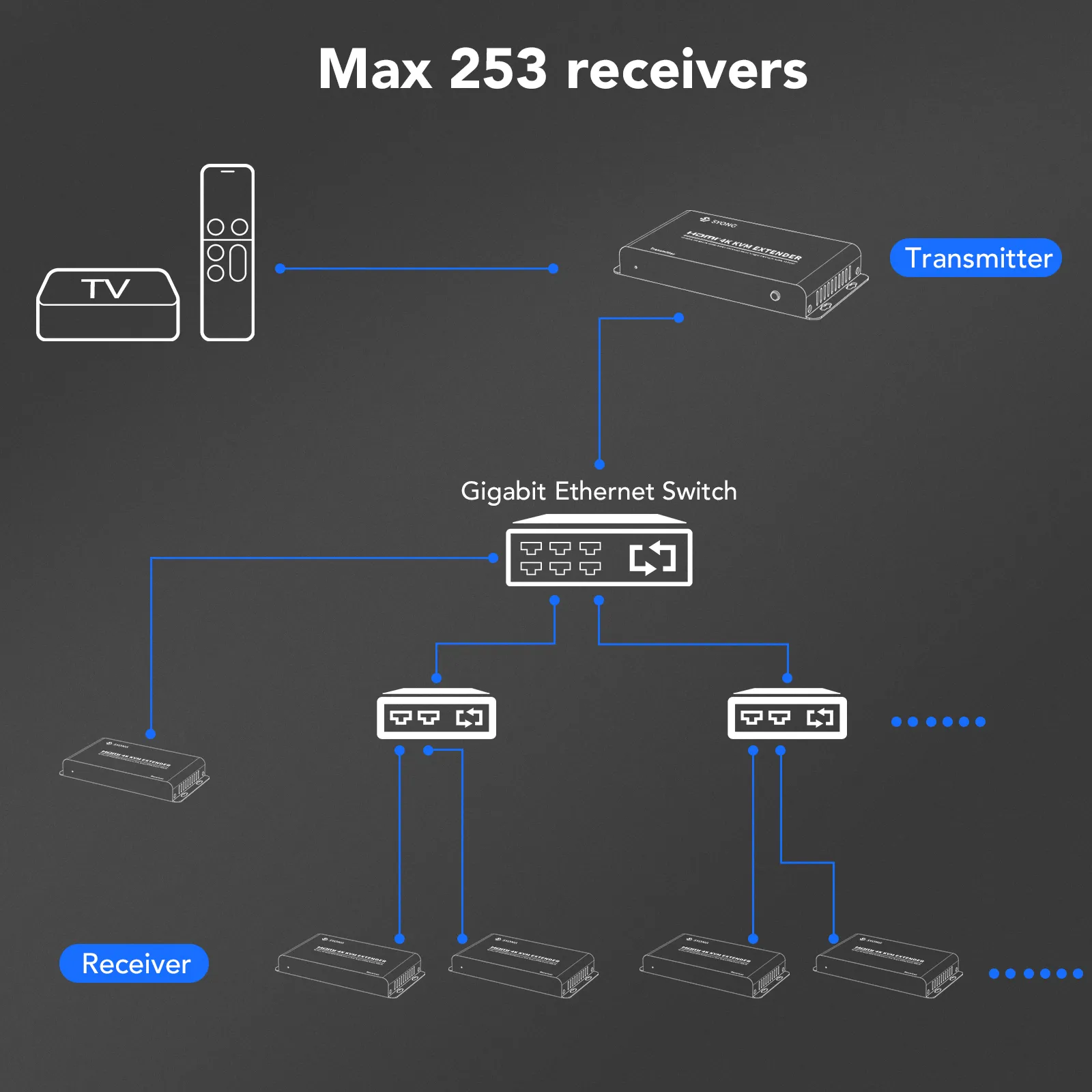

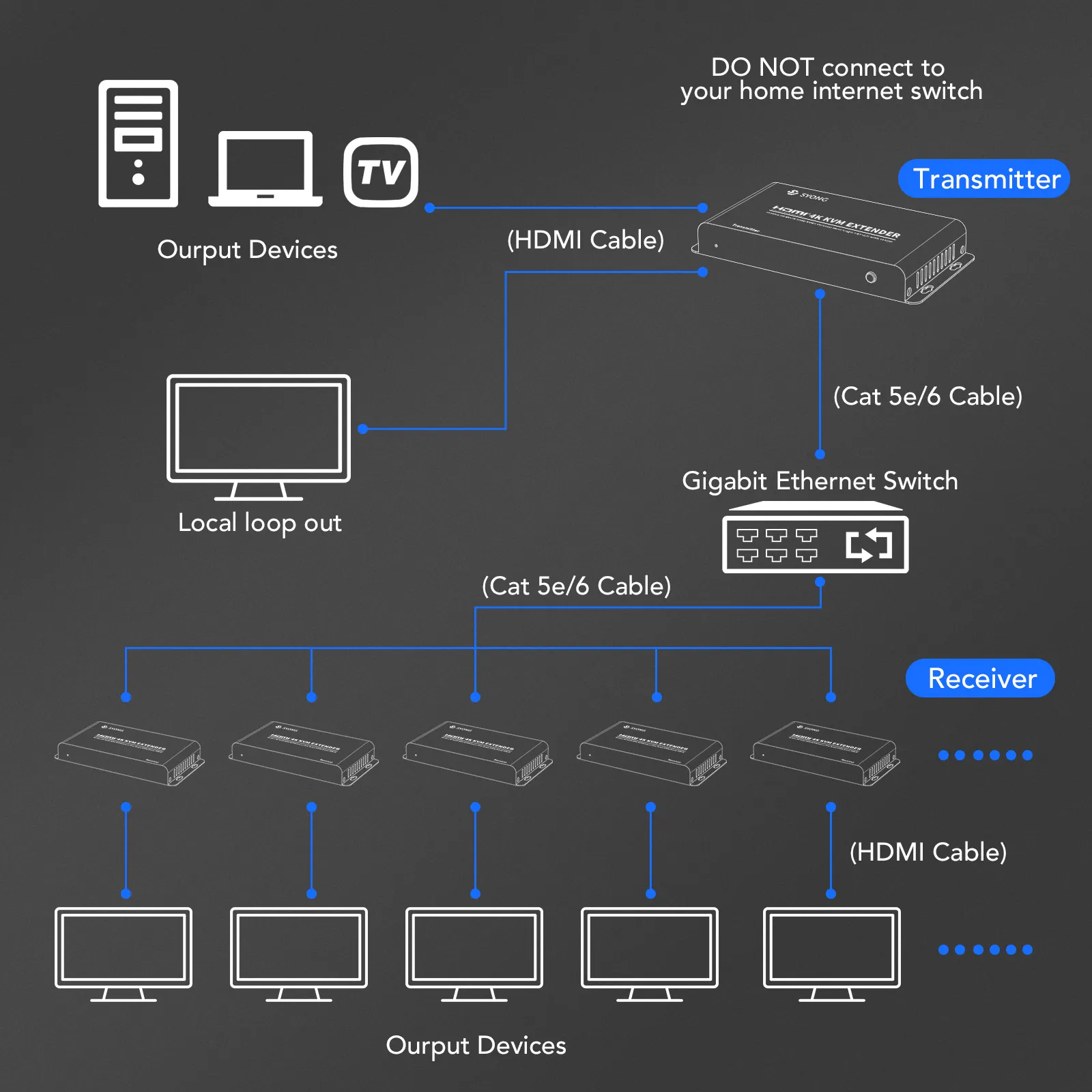

Support point-to-point mode, one point-to-many mode and cascade connection mode;
802.3 Ethernet standard;

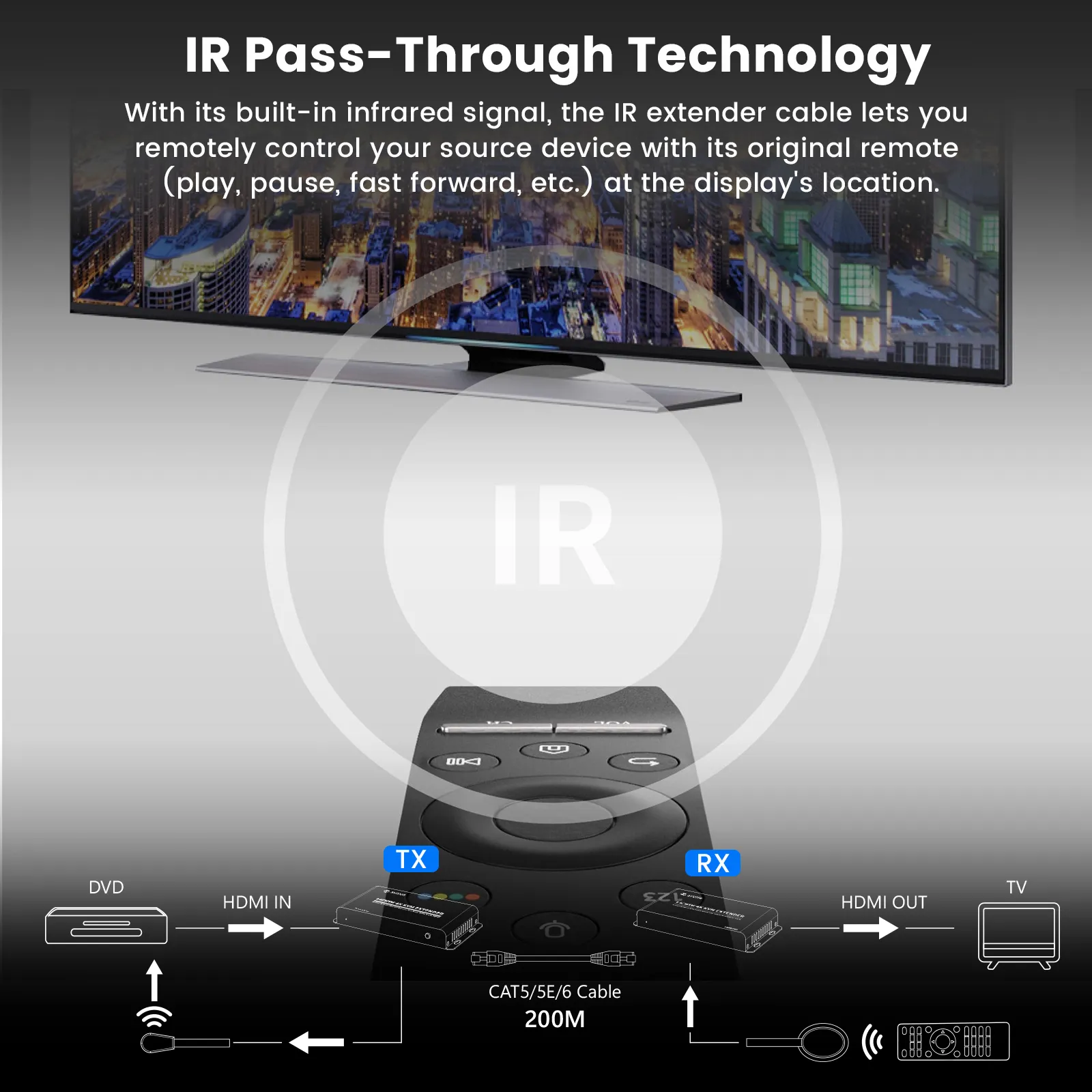

Support IR control, you can control STB or Blue-Ray DVD at receiving site by remote control;
The design of pure hardware, plug and play, no need for additional software;
Support IR remote control 20~60KHz,NEC;
Support long distance controlled by keyboard and mouse.

HDMI Compliance	HDMI 1.4b
HDCP Compliance	HDCP 1.4
USB Compliance	USB 2.0
Transmission Range：	True UHD ［4K@30Hz 24-bit color］ up to 150m［492ft］

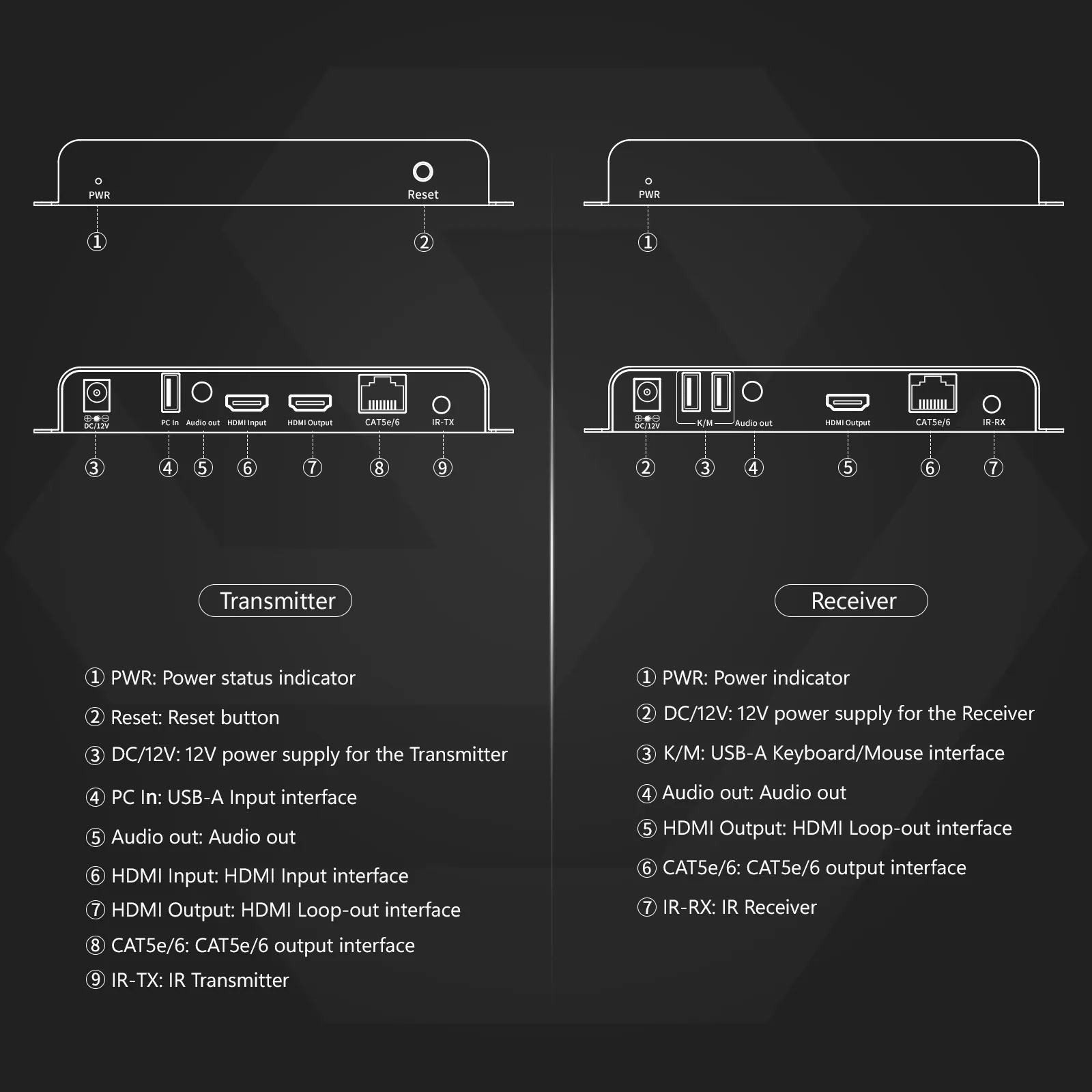

Input Ports	(1) TX – 1 x HDMI In, 1 x HDMI out, 1 x USB in
	(2) RX – 1 x HDMI \| 1 x RJ-45
Output Ports	(1) TX – 1 x HDMI Out (Pass-thru) \| 1 x RJ-45
	(2) RX – 1 x HDMI Out, 1 x USB Out
Supported Resolutions	Up to True 4K@30Hz

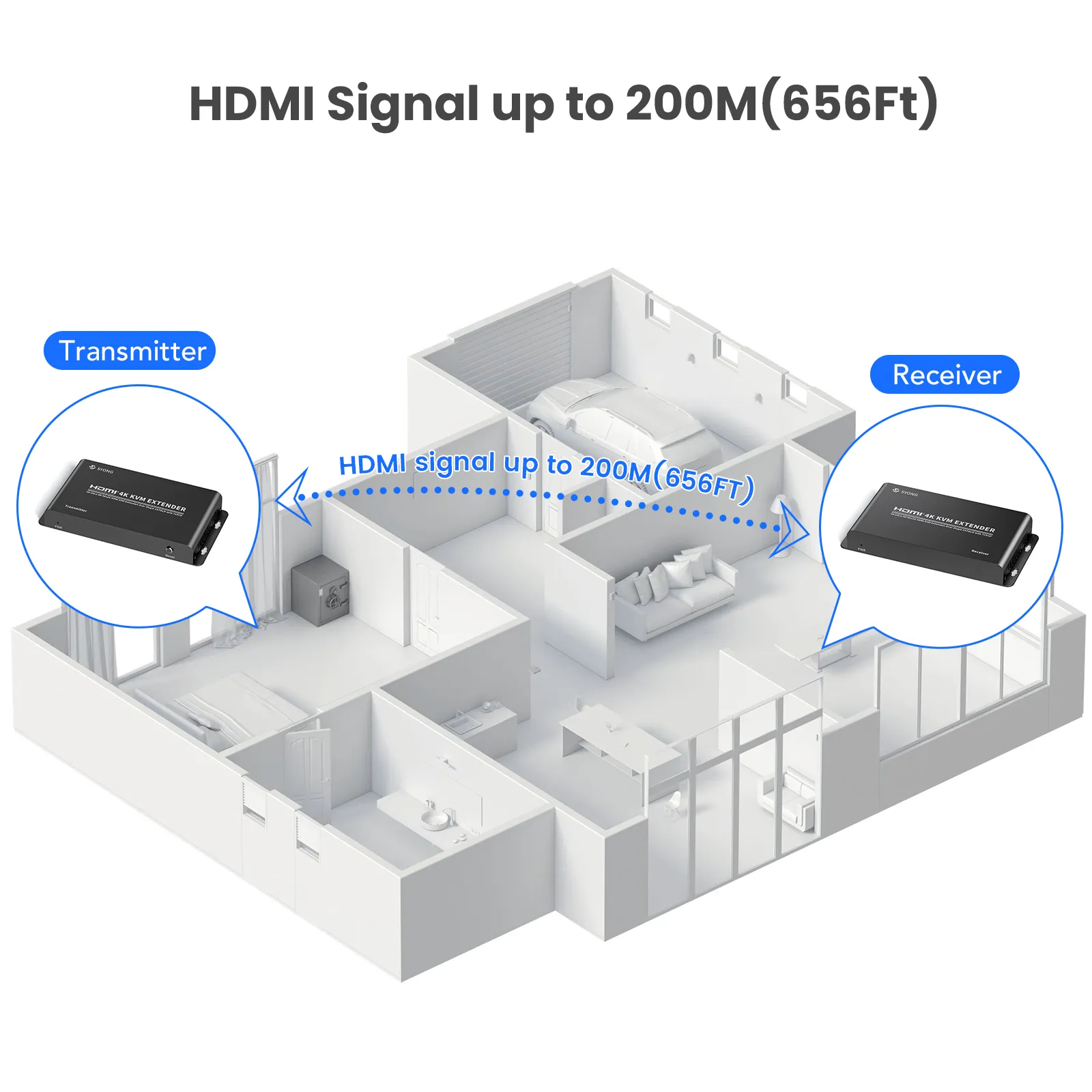

Transmission Distance	200m / 656ft over CAT6 Solid Copper
Supported Audio Formats	PCM, LPCM, Dolby Digital, DTS
Color Depth	8-bit
HDMI Audio Formats	LPCM 25.177.1CH, Dolby Digital, Drs 5.1, Dolby Digital+
Frequency Bandwidth	6.75 Gbps (single link)
Audio	Sample rate: 32kHz, 44.1kHz, 48kHz
IR Remote Control	20~60 kHz; NEC protocol
ESD Protection (Human Body Model)	±8 kV (air-gap discharge) ±4 kV (contact discharge)
Power Supply	Input: AC100 - 240V 50/60Hz Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)
Dimensions (mm)	170 × 81.5 × 22
Material	Metal shell
Interface process	Gold plated, nickel plated
HDMI cable length	AWG26 HDMI cable up to 8.0 meters(26 ft)
Transmission bandwidth	1.65Gbps
Weight	TX:95g; RX:95g
Operation Temperature	32- 104°F10-40°C
Storage temperature	-4- 140°F /-20- 60°C
Relative Humidity	20- 90% RH （no condensation）
